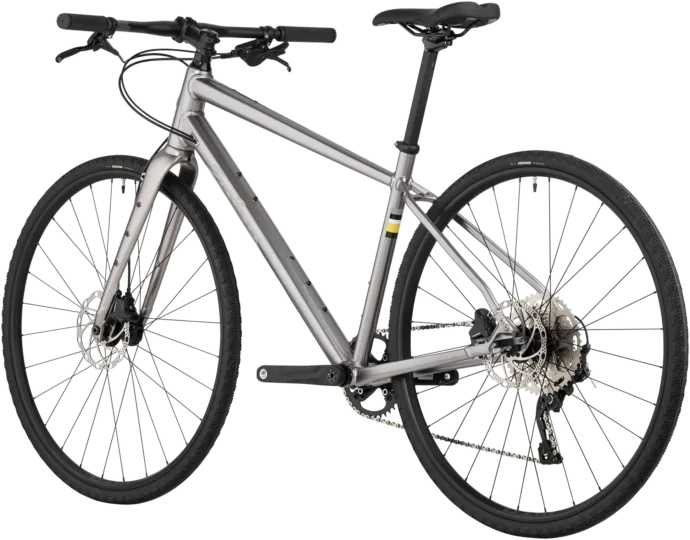

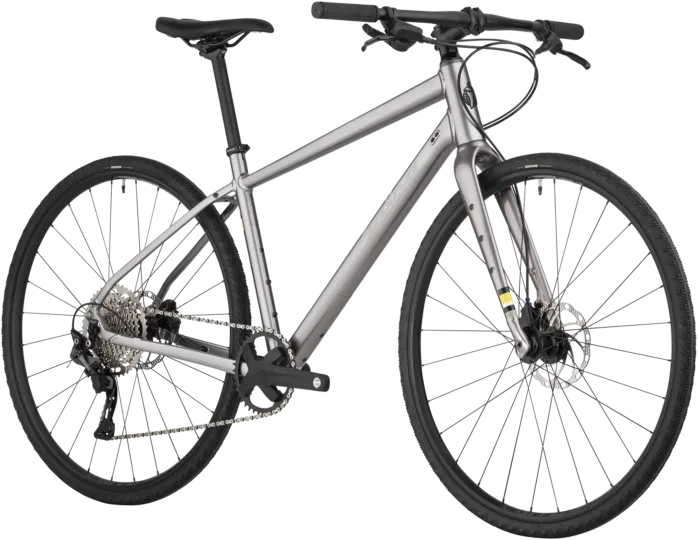

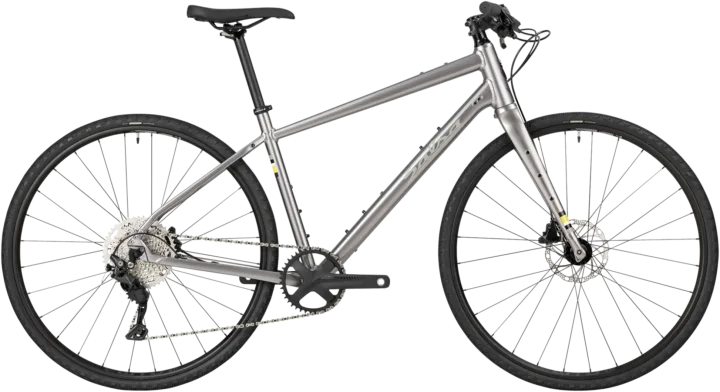

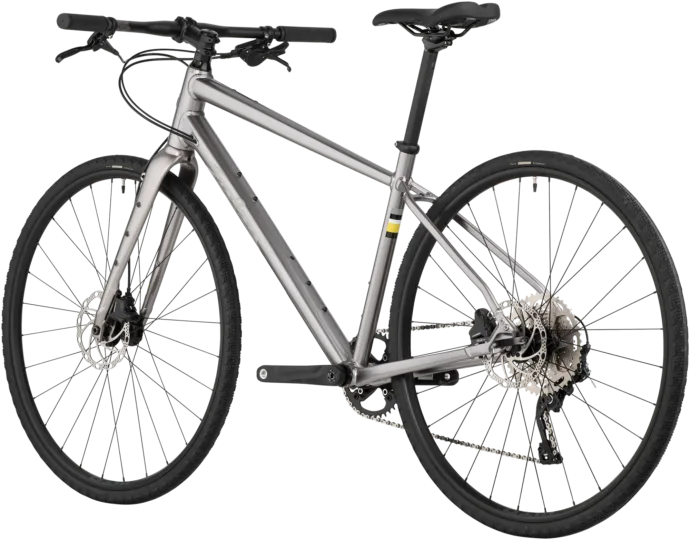

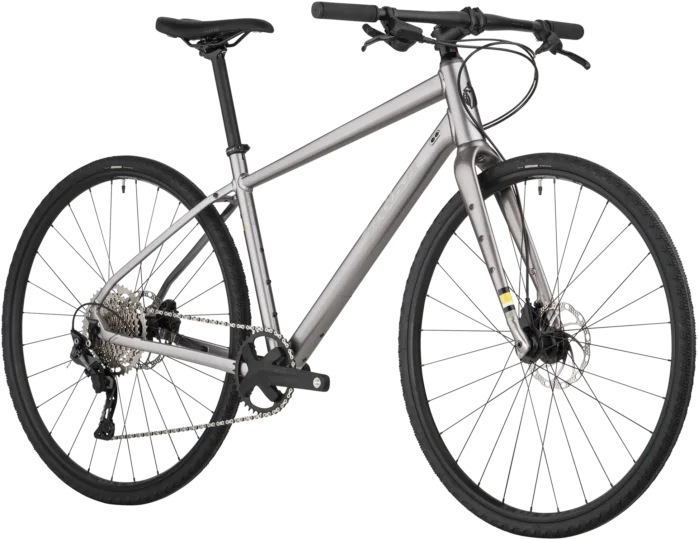

2022 Salsa Journeyer Flat Bar Deore 700c

Original specifications: 700C; 650B wheels · 25lbs (MD, with pedals) published weight · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000606
Model year
2022
Category
Gravel & Cyclocross
Original MSRP
$1,299.00
Sizes
XS, S, M, L, XL
Colors
Ash
Weight
25lbs (MD, with pedals)
Geometry
5 manufacturer sizes
In this record
18 specifications · 6 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildAluminum · 700C; 650B

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Ash

Frameset

Frame ConstructionJourneyer Flat-Bar Quick-Release
Frame MaterialAluminum
ForkFantail Deluxe
Fork MaterialAluminum

Drivetrain

ShiftersShimano Deore M4100
Rear DerailleurShimano Deore M5120 SGS, 10/11-speed
CranksetOmega MegaExo 40t, FSA Road MegaExo bottom bracket
CassetteShimano Deore M4100, 11–46t, 10-speed
ChainShimano HG54

Brakes

BrakesBrake Calipers: Tektro HD-R280; Rotors: TR-160-22 (6-bolt, 160 mm)

Cockpit & Contact Points

HeadsetFSA no.42 ACB IS-2
HandlebarSalsa Salt Flat 31.8, 700 mm
StemSalsa Guide 31.8, 6-degree
SaddleWTB Volt Medium, Steel, 142 x 265 mm
SeatpostPromax SP-2016 27.2x350mm, 12 mm offset

Wheels & Tires

Front TireTeravail Washburn 700c x 38mm OR 700c x 45mm, 30 tpi, Wire Bead
Rear TireTeravail Washburn 700c x 38mm OR 700c x 45mm, 30 tpi, Wire Bead
Wheel Size700C; 650B

Geometry

5 sizes · 15 measurements

Frame measurements by size.

All geometry measurements5 sizes · 15 measurements
MeasurementX-SmallSmallMediumLargeX-Large
Seat tube340 mm380 mm450 mm490 mm530 mm
Effective top tube550 mm570 mm600 mm625 mm650 mm
Head tube90 mm120 mm160 mm200 mm240 mm
Head-tube angle69.5°69.5°69.5°69.5°69.5°
Seat-tube angle73°73°73°73°73°
Chainstay / rear center440 mm440 mm440 mm440 mm440 mm
Wheelbase1047 mm1069 mm1101 mm1129 mm1156 mm
Bottom-bracket drop70 mm70 mm70 mm70 mm70 mm
Reach393 mm404 mm423 mm436 mm450 mm
Stack514 mm542 mm580 mm617 mm655 mm
Standover height613.5 mm648.5 mm684.5 mm720.5 mm756.5 mm
Fork offset / rake50 mm50 mm50 mm50 mm50 mm
Fork length / axle-to-crown402 mm402 mm402 mm402 mm402 mm
Crank length165 mm170 mm170 mm172.5 mm175 mm
Stem length60 mm70 mm70 mm80 mm90 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes40T · 11–46T
Lowest0.87:1 Highest3.64:1 Total range418%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Saddle · Original
WTB Volt Medium

Steel, 142 x 265 mm

Retailer offers
Cassette · Original
Shimano Deore M4100

11–46t, 10-speed

Brake pads · Original
Brake Calipers: Tektro HD-R280

Rotors: TR-160-22 (6-bolt, 160 mm)

More parts (6)Fewer parts
Crankset · Original
Omega MegaExo 40t, FSA Road MegaExo bottom bracket
165 mm Frame sizes X-Small
170 mm Frame sizes Small / Medium
172.5 mm Frame sizes Large
175 mm Frame sizes X-Large

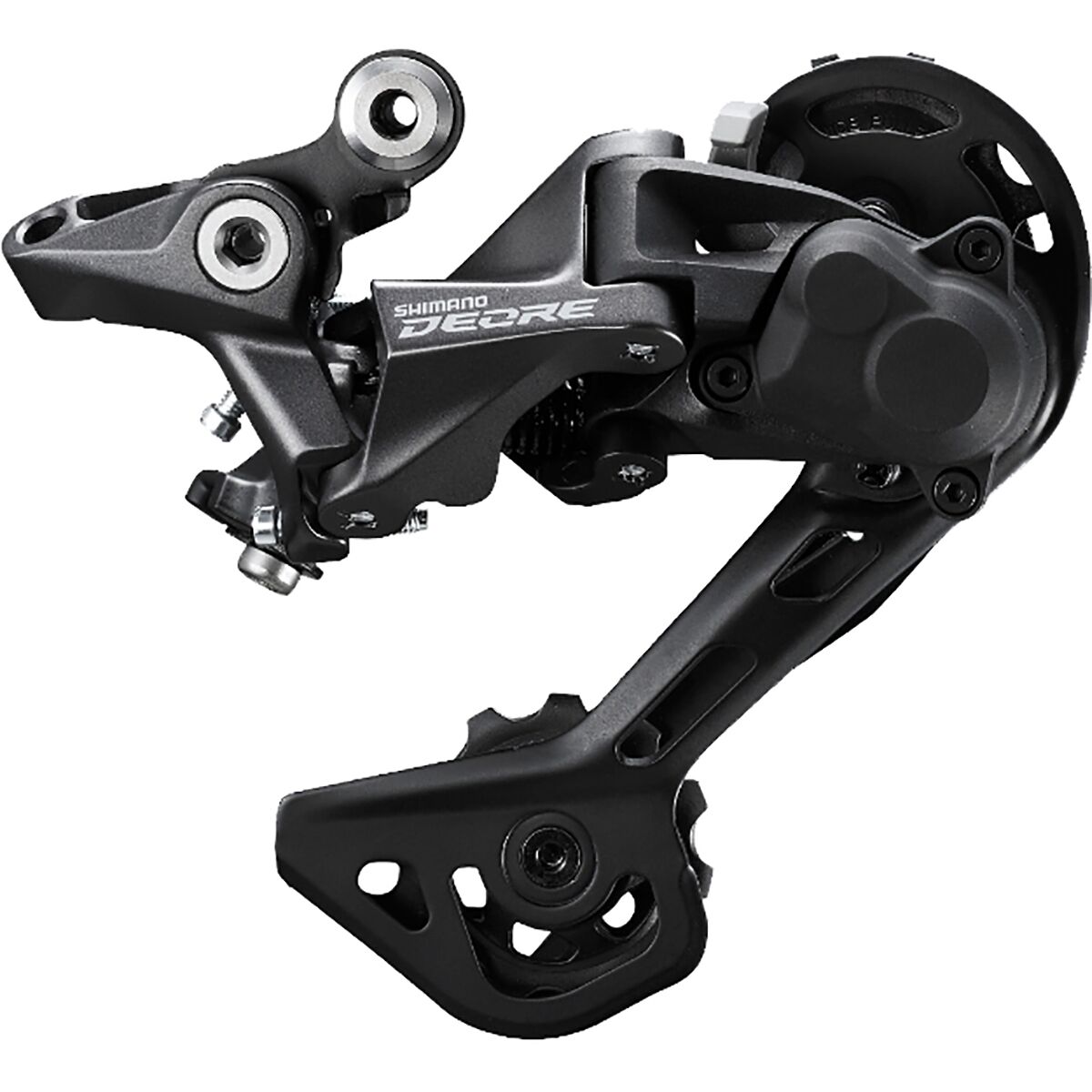

Rear derailleur · Original
Shimano Deore M5120 SGS

10/11-speed

Handlebar · Original
Salsa Salt Flat 31.8

700 mm

Stem · Original
Salsa Guide 31.8

6-degree

Seatpost · Original
Promax SP-2016 27.2x350mm

12 mm offset

Headset · Original
FSA NO.42 ACB IS-2

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Teravail Washburn 700c x 38mm OR 700c x 45mm, 30 tpi, Wire Bead
Rear tire
Teravail Washburn 700c x 38mm OR 700c x 45mm, 30 tpi, Wire Bead
Seatpost diameter
27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Journeyer Flat-Bar Quick-Release · Fork: Fantail Deluxe · Aluminum

Archived: Shifters: Shimano Deore M4100 · Rear derailleur: Shimano Deore M5120 SGS, 10/11-speed · Crankset: Omega MegaExo 40t, FSA Road MegaExo bottom bracket · Cassette: Shimano Deore M4100, 11–46t, 10-speed · Chain: Shimano HG54

Archived: Brakes: Brake Calipers: Tektro HD-R280; Rotors: TR-160-22 (6-bolt, 160 mm)

Archived: Wheel size: 700C; 650B · Front tire: Teravail Washburn 700c x 38mm OR 700c x 45mm, 30 tpi, Wire Bead · Rear tire: Teravail Washburn 700c x 38mm OR 700c x 45mm, 30 tpi, Wire Bead

Controls and contact points

Archived: Headset: FSA NO.42 ACB IS-2 · Handlebar: Salsa Salt Flat 31.8, 700 mm · Stem: Salsa Guide 31.8, 6-degree · Seatpost: Promax SP-2016 27.2x350mm, 12 mm offset · Saddle: WTB Volt Medium, Steel, 142 x 265 mm
