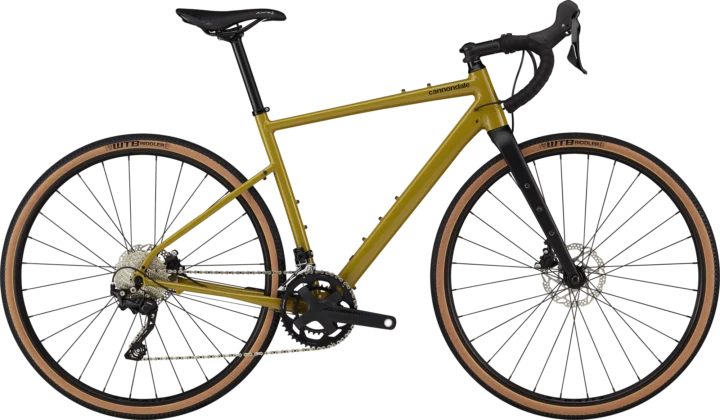

2022 Cannondale Topstone 2
Original manufacturer specifications including 700c wheels, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2022
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,000.00
- Sizes
- XS, S, M, L, XL
- Colors
- Midnight Blue, Olive Green
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001185
Frameset
| Frame Construction | Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | Shimano GRX 400, 10-speed |
|---|---|
| Front Derailleur | Shimano GRX 400 |
| Rear Derailleur | Shimano GRX 400, Shadow RD+ |
| Crankset | FSA Omega AGX+ Alloy, 46/30 |
| Bottom Bracket | FSA Cartridge |
| Rear Cogs | Shimano HG500, 11-34, 10-speed |
| Chain | KMC X10, 10-speed |
Brakes
| Brakes | Brakes Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors Brake Levers Shimano GRX 400 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | Integrated, 1-1/8" - 1.5" |
|---|---|
| Handlebar | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm |
Wheels & Tires
| Hubs | (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock |
|---|---|
| Rims | WTB ST i23 TCS, 28h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Front Tire | WTB Riddler, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c) |
| Rear Tire | WTB Riddler, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c) |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Effective top tube | 533 mm | 544 mm | 557 mm | 572 mm | 587 mm |
| Head tube | 86 mm | 115 mm | 147 mm | 180 mm | 212 mm |
| Head-tube angle | 70° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1016 mm | 1027 mm | 1045 mm | 1065 mm | 1083 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Bottom-bracket height | 280 mm | 284 mm | 284 mm | 284 mm | 280 mm |
| Reach | 368 mm | 377 mm | 385 mm | 394 mm | 402 mm |
| Stack | 518 mm | 549 mm | 579 mm | 610 mm | 640 mm |
| Standover height | 703 mm | 744 mm | 784 mm | 824 mm | 864 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 593 mm | 603 mm | 621 mm | 641 mm | 659 mm |
| Trail | 72 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
Geometry source: Human-verified manufacturer geometry image transcription ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 75 mm sits toward the deeper-drop end. Its stack of 518 mm sits somewhat lower than typical. The chainstay of 435 mm sits somewhat longer than typical.
Compared with 11 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2022–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: The seat angle of 73.1° sits somewhat more relaxed than typical. The head angle of 71° sits somewhat steeper than typical. Its stack of 549 mm sits somewhat lower than typical.
Compared with 44 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The seat angle of 73.1° sits somewhat more relaxed than typical. Its bottom-bracket drop of 75 mm sits somewhat deeper than typical. Its stack of 579 mm sits somewhat lower than typical.
Compared with 45 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its bottom-bracket drop of 75 mm sits somewhat deeper than typical. The seat angle of 73.1° sits somewhat steeper than typical. Its wheelbase of 1065 mm sits close to the middle of the group.
Compared with 31 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The seat angle of 73.1° sits somewhat steeper than typical. Its wheelbase of 1083 mm sits somewhat longer than typical. Its bottom-bracket drop of 75 mm sits somewhat deeper than typical.
Compared with 33 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X10, 10-speed
Exact archived model
Shimano HG500, 11-34, 10-speed
Exact archived model
Fizik Aliante Delta, S-alloy rails
Named archived component — verify exact version
More qualified parts (6)
FSA Omega AGX+ Alloy, 46/30
Named archived component — verify exact version
Shimano GRX 400
Interpreted as Shimano GRX · 10-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano GRX 400, Shadow RD+
Interpreted as Shimano GRX · 10-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano GRX 400, 10-speed
Interpreted as Shimano GRX · 10-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
27.2 mm seatpost
Published diameter — verify length and setback
WTB ST i23 TCS, 28h, tubeless ready
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 10-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Cannondale Topstone 2 · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts · Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano GRX 400, 10-speed · Front derailleur: Shimano GRX 400 · Rear derailleur: Shimano GRX 400, Shadow RD+ · Crankset: FSA Omega AGX+ Alloy, 46/30 · Bottom bracket: FSA Cartridge · Rear cogs: Shimano HG500, 11-34, 10-speed · Chain: KMC X10, 10-speed
Brakes
Inspect the brakes →Archived: Brakes: Brakes Shimano GRX 400 hydraulic disc, 160/160mm RT54 rotors Brake Levers Shimano GRX 400 hydraulic disc
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: WTB ST i23 TCS, 28h, tubeless ready · Hubs: (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock · Front tire: WTB Riddler, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c) · Rear tire: WTB Riddler, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c)
Controls and contact points
Archived: Headset: Integrated, 1-1/8" - 1.5" · Handlebar: Cannondale 3, butted 6061 Alloy, 16 deg flare drop · Stem: Cannondale 3, 6061 Alloy, 31.8, 7° · Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm · Saddle: Fizik Aliante Delta, S-alloy rails
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
