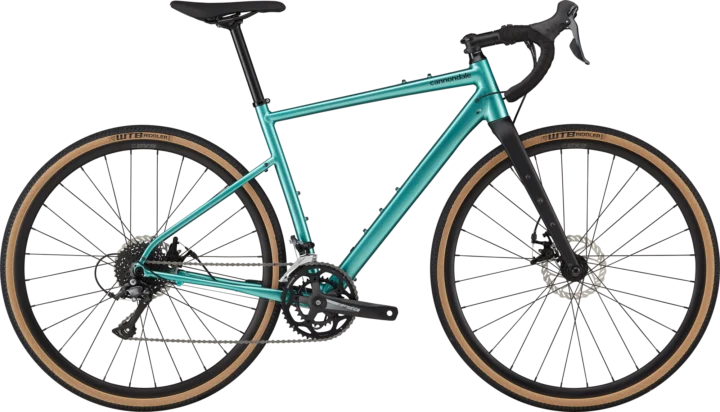

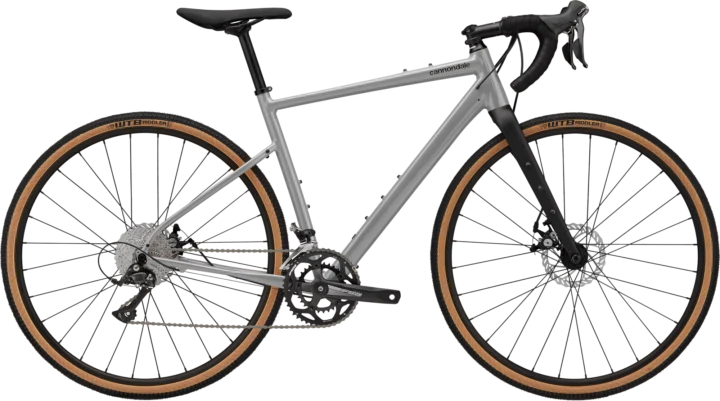

2022 Cannondale Topstone 3
Original manufacturer specifications including 700c wheels, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2022
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,400.00
- Sizes
- XS, S, M, L, XL
- Colors
- Grey, Turquoise
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001187
Model history 1 other year
Frameset
| Frame Construction | Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | Shimano Sora, 9-speed |
|---|---|
| Front Derailleur | Shimano Sora GS |
| Rear Derailleur | Shimano Sora GS |
| Crankset | FSA Tempo Adventure, 46/30 |
| Bottom Bracket | Cartridge, square taper |
| Rear Cogs | Sunrace, 11-34, 9-speed |
| Chain | KMC Z9, 9-speed |
Brakes
| Brakes | Brakes Promax Decoder R mechanical disc, 160/160mm rotors Brake Levers Shimano Sora |
|---|
Cockpit & Contact Points
| Headset | Integrated, 1-1/8" - 1.5" |
|---|---|
| Handlebar | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Seatpost | Cannondale 4, 6061 Alloy, 27.2x350mm |
Wheels & Tires
| Hubs | (F) Formula alloy, 12x100mm / (R) Formula alloy, 12x142mm |
|---|---|
| Rims | GXD 1.0, 28h |
| Spokes | Stainless Steel, 14g |
| Front Tire | WTB Riddler Comp, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c) |
| Rear Tire | WTB Riddler Comp, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c) |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Effective top tube | 533 mm | 544 mm | 557 mm | 572 mm | 587 mm |
| Head tube | 86 mm | 115 mm | 147 mm | 180 mm | 212 mm |
| Head-tube angle | 70° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 73.1° | 73.1° | 73.1° | 73.1° | 73.1° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1016 mm | 1027 mm | 1045 mm | 1065 mm | 1083 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Bottom-bracket height | 280 mm | 284 mm | 284 mm | 284 mm | 280 mm |
| Reach | 368 mm | 377 mm | 385 mm | 394 mm | 402 mm |
| Stack | 518 mm | 549 mm | 579 mm | 610 mm | 640 mm |
| Standover height | 703 mm | 744 mm | 784 mm | 824 mm | 864 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 593 mm | 603 mm | 621 mm | 641 mm | 659 mm |
| Trail | 72 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
Geometry source: Human-verified manufacturer geometry image transcription ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 75 mm sits toward the deeper-drop end. Its stack of 518 mm sits somewhat lower than typical. The chainstay of 435 mm sits somewhat longer than typical.
Compared with 11 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2022–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: The seat angle of 73.1° sits somewhat more relaxed than typical. The head angle of 71° sits somewhat steeper than typical. Its stack of 549 mm sits somewhat lower than typical.
Compared with 44 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The seat angle of 73.1° sits somewhat more relaxed than typical. Its bottom-bracket drop of 75 mm sits somewhat deeper than typical. Its stack of 579 mm sits somewhat lower than typical.
Compared with 45 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its bottom-bracket drop of 75 mm sits somewhat deeper than typical. The seat angle of 73.1° sits somewhat steeper than typical. Its wheelbase of 1065 mm sits close to the middle of the group.
Compared with 31 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The seat angle of 73.1° sits somewhat steeper than typical. Its wheelbase of 1083 mm sits somewhat longer than typical. Its bottom-bracket drop of 75 mm sits somewhat deeper than typical.
Compared with 33 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC Z9, 9-speed
Exact archived model
Sunrace, 11-34, 9-speed
Component family — verify exact version
Fizik Aliante Delta, S-alloy rails
Named archived component — verify exact version
More qualified parts (5)
FSA Tempo Adventure, 46/30
Named archived component — verify exact version
Shimano Sora GS
Interpreted as Shimano Sora · 9-speed Named component · published drivetrain speed — verify exact version
Shimano Sora GS
Interpreted as Shimano Sora · 9-speed Named component · published drivetrain speed — verify exact version
Shimano Sora, 9-speed
Interpreted as Shimano Sora · 9-speed Component family — verify exact version
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesMake sure both cables move freely and the calipers release cleanly. Check pad thickness, rotor wear and rotor alignment.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 9-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Cannondale Topstone 3 · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts · Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Sora, 9-speed · Front derailleur: Shimano Sora GS · Rear derailleur: Shimano Sora GS · Crankset: FSA Tempo Adventure, 46/30 · Bottom bracket: Cartridge, square taper · Rear cogs: Sunrace, 11-34, 9-speed · Chain: KMC Z9, 9-speed
Brakes
Inspect the brakes →Archived: Brakes: Brakes Promax Decoder R mechanical disc, 160/160mm rotors Brake Levers Shimano Sora
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: GXD 1.0, 28h · Hubs: (F) Formula alloy, 12x100mm / (R) Formula alloy, 12x142mm · Front tire: WTB Riddler Comp, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c) · Rear tire: WTB Riddler Comp, 700x37c (Europe/UK - Vittoria Terreno Dry, 700x37c)
Controls and contact points
Archived: Headset: Integrated, 1-1/8" - 1.5" · Handlebar: Cannondale 3, butted 6061 Alloy, 16 deg flare drop · Stem: Cannondale 3, 6061 Alloy, 31.8, 7° · Seatpost: Cannondale 4, 6061 Alloy, 27.2x350mm · Saddle: Fizik Aliante Delta, S-alloy rails
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
