Velopedia Bicycle Archive

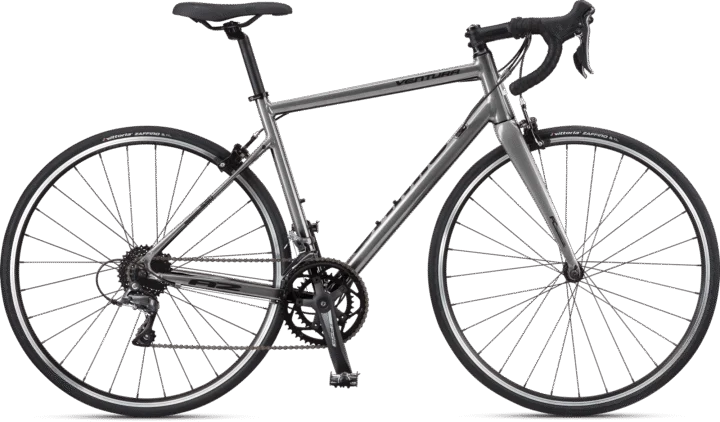

2022 Jamis Ventura A2
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2022
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,049.95
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Garnet or Palladium
- Weight
- 23.0 lbs
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001685
Frameset
| Frame Construction | Size Specific Design 6061 aluminum compact sloping top tube frame design with redesigned rear triangle, SST tubing diameters and internal cable guides, 1.5 – 1 1/8” tapered head tube, 31.8 seat tube for 27.2 seat post, replaceable derailleur hanger and fender/rack eyelets |
|---|---|
| Frame Material | Aluminum |
| Fork | Jamis Performance ECO carbon composite with carbon steerer, 1.5” hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless tabs and exposed fender eyelets |
| Fork Material | Carbon |
Drivetrain
| Component Group | Shimano Claris RD-R2000 rear and Shimano Claris FD-R2000 front with 31.8mm alloy clamp |
|---|---|
| Shifters | Shimano Claris ST-R2000 Dual Control STI, 16-speed |
| Front Derailleur | Shimano Claris RD-R2000 rear and Shimano Claris FD-R2000 front with 31.8mm alloy clamp |
| Rear Derailleur | Shimano Claris RD-R2000 rear and Shimano Claris FD-R2000 front with 31.8mm alloy clamp |
| Crankset | FSA Tempo, 50/34, 170mm (48/51), 172.5 (54/56) 175mm (58/61) |
| Bottom Bracket | FSA sealed cartridge, 68 x 110.5mm |
| Cassette | Shimano HG41 8-speed, 11-32T |
| Chain | KMC Z8 |
| Pedals | Touring platform style, full alloy with toe clips |
Brakes
| Brakes | Tektro R315 alloy dual pivot calipers with adjustable pads and Shimano Claris ST-R2000 STI levers |
|---|
Cockpit & Contact Points
| Headset | FSA Integrated, threadless, 1.5 – 1 1/8” |
|---|---|
| Handlebar | Jamis Ergo, 6061 aluminum, 31.8 x 380mm (48) 400mm (51/54), 420mm (56/58/61) |
| Stem | Jamis Road, 3D forged 6061 alloy, 7 ̊ x 90mm (48/51), 100mm (54/56), 120mm (58/61) |
| Saddle | NEW Jamis Road Sport with SL top |
| Seatpost | Jamis alloy micro-adjust, 27.2 x 350mm with alloy clamp |
Wheels & Tires
| Wheels | Alex ID-19 double wall alloy rims with GSW sidewall, 28/32H, Joytec alloy hubs with QR and 14g stainless steel spokes |
|---|---|
| Front Tire | Vittoria Zaffiro, 700 x 28c |
| Rear Tire | Vittoria Zaffiro, 700 x 28c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Effective top tube | 505 mm | 526 mm | 548 mm | 559 mm | 571 mm | 582 mm |
| Head tube | 125 mm | 145 mm | 160 mm | 185 mm | 205 mm | 225 mm |
| Head-tube angle | 70° | 71.5° | 72° | 73° | 73° | 73° |
| Seat-tube angle | 75° | 74° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 415 mm | 415 mm | 420 mm | 420 mm | 425 mm | 425 mm |
| Wheelbase | 988 mm | 990 mm | 996 mm | 998 mm | 1015 mm | 1026 mm |
| Bottom-bracket drop | 71 mm | 69 mm | 68 mm | 68 mm | 66 mm | 66 mm |
| Reach | 360 mm | 365 mm | 373 mm | 376 mm | 383 mm | 388 mm |
| Stack | 531 mm | 553 mm | 570 mm | 598 mm | 616 mm | 635 mm |
| Standover height | 729 mm | 764 mm | 779 mm | 803 mm | 821 mm | 838 mm |
| Fork offset / rake | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm |
Geometry source: Jamis first-party geometry table (2021 GEO - VENTURA) ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
48 geometry
Archive context: Its reach of 360 mm sits toward the shorter end. Its wheelbase of 988 mm sits toward the shorter end. The chainstay of 415 mm sits toward the shorter rear-center end.
Compared with 36 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2022–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 48 geometry 51 geometry
Archive context: Its wheelbase of 990 mm sits toward the shorter end. The chainstay of 415 mm sits toward the shorter rear-center end. The head angle of 71.5° sits toward the steeper end.
Compared with 36 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2022–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 51 geometry 54 geometry
Archive context: Its wheelbase of 996 mm sits toward the shorter end. The head angle of 72° sits toward the steeper end. The chainstay of 420 mm sits toward the shorter rear-center end.
Compared with 35 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The head angle of 73° sits toward the steeper end. Its wheelbase of 998 mm sits toward the shorter end. Its reach of 376 mm sits toward the shorter end.
Compared with 26 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2022–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: Its reach of 383 mm sits toward the shorter end. Its wheelbase of 1015 mm sits toward the shorter end. The head angle of 73° sits toward the steeper end.
Compared with 28 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2021–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 61 geometry
Archive context: Its reach of 388 mm sits toward the shorter end. Its wheelbase of 1026 mm sits toward the shorter end. The head angle of 73° sits toward the steeper end.
Compared with 21 distinct cyclocross/gravel geometries in the XXL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 61 geometry Parts & serviceability
Find replacement parts
ChainKMC Z8Exact archived model
CassetteShimano HG41 8-speed, 11-32TExact archived model
Front tireVittoria Zaffiro, 700 x 28cNamed tire and published size
More qualified parts (5)
Brake padsTektro R315 alloy dual pivot calipersBrake model identified — verify pad shape
CranksetFSA Tempo, 50/34, 170mm (48/51), 172.5 (54/56) 175mm (58/61)Named archived component — verify exact version
ShiftersShimano Claris ST-R2000 Dual Control STI, 16-speedExact archived model
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
WheelsAlex ID-19 double wall alloy rims with GSW sidewall, 28/32H, Joytec alloy hubs with QR and 14g stainless steel spokesNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Jamis Ventura A2 · Cyclocross/Gravel · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum · Fork: Jamis Performance ECO carbon composite with carbon steerer, 1.5” hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless tabs and exposed fender eyelets · Carbon
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Claris RD-R2000 rear and Shimano Claris FD-R2000 front with 31.8mm alloy clamp · Shifters: Shimano Claris ST-R2000 Dual Control STI, 16-speed · Front derailleur: Shimano Claris RD-R2000 rear and Shimano Claris FD-R2000 front with 31.8mm alloy clamp · Rear derailleur: Shimano Claris RD-R2000 rear and Shimano Claris FD-R2000 front with 31.8mm alloy clamp · Crankset: FSA Tempo, 50/34, 170mm (48/51), 172.5 (54/56) 175mm (58/61) · Bottom bracket: FSA sealed cartridge, 68 x 110.5mm · Cassette: Shima…
Brakes
Inspect the brakes →Archived: Brakes: Tektro R315 alloy dual pivot calipers with adjustable pads and Shimano Claris ST-R2000 STI levers
Wheels and tires
Check wheels and tires →Archived: Wheels: Alex ID-19 double wall alloy rims with GSW sidewall, 28/32H, Joytec alloy hubs with QR and 14g stainless steel spokes · Front tire: Vittoria Zaffiro, 700 x 28c · Rear tire: Vittoria Zaffiro, 700 x 28c
Controls and contact points
Archived: Headset: FSA Integrated, threadless, 1.5 – 1 1/8” · Handlebar: Jamis Ergo, 6061 aluminum, 31.8 x 380mm (48) 400mm (51/54), 420mm (56/58/61) · Stem: Jamis Road, 3D forged 6061 alloy, 7 ̊ x 90mm (48/51), 100mm (54/56), 120mm (58/61) · Seatpost: Jamis alloy micro-adjust, 27.2 x 350mm with alloy clamp · Saddle: NEW Jamis Road Sport with SL top · Pedals: Touring platform style, full alloy with toe clips
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
