Velopedia Bicycle Archive

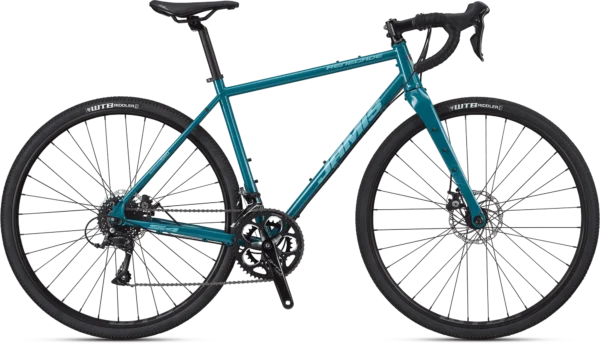

2022 Jamis Renegade S4
Original specifications: Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp drivetrain · 24.50 lb published weight · geometry for 6 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001522- Model year
- 2022
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,699.95
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Riptide
- Weight
- 24.50 lb
- Geometry
- 6 manufacturer sizes
- In this record
- 21 specifications · 3 archived images · original MSRP · geometry
Original buildSteel · Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp
Frameset
| Frame Construction | Renegade V2 Reynolds 520 frame, 12mm thru-axle, 1.5 – 1 1/8” head tube, threaded BB shell, down tube mounted full cable housing, flat mount disc brakes, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets and UDH hanger, clearance for 45-50c tires |
|---|---|
| Frame Material | Steel |
| Fork | Renegade V2 monocoque carbon composite fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets |
| Fork Material | Carbon |
Drivetrain
| Component Group | Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp |
|---|---|
| Shifters | Shimano Sora ST-R3000 Dual Control STI, 18-speed |
| Front Derailleur | Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp |
| Rear Derailleur | Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp |
| Crankset | FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61) |
| Bottom Bracket | FSA sealed cartridge, 68 x 110.5mm |
| Cassette | Shimano HG400 9-speed, 11-34T |
| Chain | KMC Z9 |
Brakes
| Brakes | Tektro Lyra mechanical cable actuated disc flat mount brake with 160mm wave rotors and Shimano Sora ST-R3000 levers |
|---|
Cockpit & Contact Points
| Headset | FSA OrbitC-40B Internal, 1.5 – 1 1/8” |
|---|---|
| Handlebar | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) |
| Stem | Ritchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61) |
| Saddle | NEW Jamis Gravel Sport with SL top and relief channel |
| Seatpost | Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin |
Wheels & Tires
| Wheels | WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever |
|---|---|
| Front Tire | WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) |
| Rear Tire | WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 11 measurements
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seat tube | 450 mm | 480 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Effective top tube | 532 mm | 547 mm | 567 mm | 587 mm | 604 mm | 621 mm |
| Head tube | 80 mm | 99 mm | 130 mm | 162 mm | 189 mm | 210 mm |
| Head-tube angle | 71° | 71° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 72° | 72° | 72° | 72° | 72° | 72° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 995 mm | 1010 mm | 1030 mm | 1051.2 mm | 1070 mm | 1085 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach | 360 mm | 370 mm | 380 mm | 390 mm | 400 mm | 410 mm |
| Stack | 527.5 mm | 545 mm | 575 mm | 605 mm | 630 mm | 650 mm |
| Standover height | 731 mm | 754 mm | 783 mm | 807.9 mm | 830 mm | 849.5 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Jamis Road
micro-adjust, 27.2 x 350mm cromo seat pin
KMC Z9
Shimano Sora ST-R3000 Dual Control STI
18-speed
Shimano ST-R3000 on eBaySponsored links
More parts (5)Fewer parts
Shimano HG400 9-speed
11-34T
FSA Vero
50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
Ritchey Baquiano Comp
6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
Ritchey 4-Axis 3D forged 6061 alloy
6 ̊ x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)
FSA OrbitC-40B Internal
1.5 – 1 1/8”
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)
- Rear tire
- WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- FSA sealed cartridge, 68 x 110.5mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Steel · Fork: · Carbon
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp · Shifters: Shimano Sora ST-R3000 Dual Control STI, 18-speed · Front derailleur: Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp · Rear derailleur: Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp · Crankset: FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61) · Bottom bracket: FSA sealed cartridge, 68 x 110.5mm · Cassette: Shimano HG400 9-speed…
Brakes
Inspect the brakes →Archived: Brakes: Tektro Lyra mechanical cable actuated disc flat mount brake with 160mm wave rotors and Shimano Sora ST-R3000 levers
Wheels and tires
Check wheels and tires →Archived: Wheels: WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever · Front tire: WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) · Rear tire: WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)
Controls and contact points
Archived: Headset: FSA OrbitC-40B Internal, 1.5 – 1 1/8” · Handlebar: Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) · Stem: Ritchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61) · Seatpost: Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin · Saddle: NEW Jamis Gravel Sport with SL top and relief channel
