Velopedia Bicycle Archive

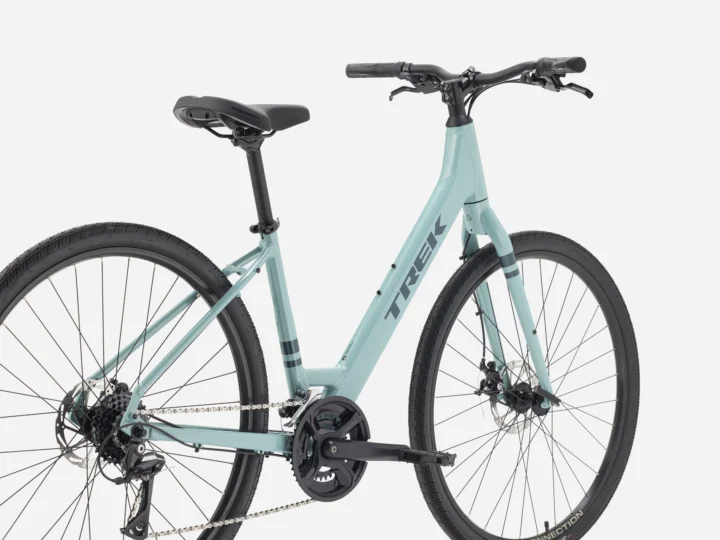

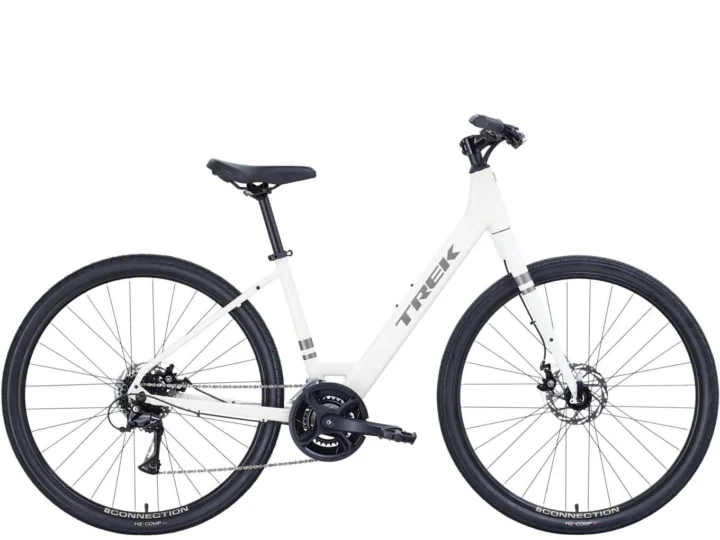

2027 Trek Verve 1 Lowstep

Original specifications: Shimano, 8-speed drivetrain · 700c wheels · M - 14.25 kg / 31.42 lbs published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000774
Model year
2027
Category
Hybrid
Original MSRP
$599.99
Sizes
XS, S, M, L
Colors
Blue Sage, Era White
Weight
M - 14.25 kg / 31.42 lbs
Geometry
4 manufacturer sizes
In this record
25 specifications · 8 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildAluminum · Shimano, 8-speed · 700c

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSML

Published colors

Blue SageEra White

Frameset

Frame ConstructionAlpha Gold Aluminum, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Frame MaterialAluminum
ForkVerve alloy, steel steerer, internal brake routing, 460mm axle-to-crown, ThruSkew
Fork MaterialAluminum

Drivetrain

Component GroupShimano, 8-speed
ShiftersShimano EF500, 8 speed
Front DerailleurShimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull
Rear DerailleurShimano Acera M3020-8, 40T max cog
CranksetForged alloy, 46/30, 170mm length
Bottom BracketSealed cartridge, 68mm
BB Shell Width68 mm
CassetteShimano HG200, 12-32, 8 speed
ChainKMC Z8.3
PedalsWellgo nylon platform

Brakes

BrakesTektro MD-M280 mechanical disc

Cockpit & Contact Points

Headset1-1/8'' threadless, sealed cartridge bearings
HandlebarTrek Urban, alloy, 25.4mm, comfort sweep, 45mm rise, 620mm width
StemXS, S: Bontrager Approved alloy, 25.4mm clamp, 15 degree rise, 60mm / M, L: Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
SaddleBontrager Boulevard
SeatpostBontrager alloy, 27.2mm, 12mm offset, 330mm length

Wheels & Tires

Hubs(F) Formula DC-20, alloy, 6-bolt, 100x5mm / (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
RimsBontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Front TireBontrager H2 Comp, wire bead, 30tpi, 700x45mm
Rear TireBontrager H2 Comp, wire bead, 30tpi, 700x45mm
Wheel Size700c

Geometry

4 sizes · 15 measurements

Frame measurements by size.

All geometry measurements4 sizes · 15 measurements
MeasurementXSSML
Seat tube350 mm440 mm500 mm550 mm
Effective top tube546 mm568 mm594 mm604 mm
Head tube140 mm160 mm170 mm180 mm
Head-tube angle70.5°70.5°70.5°70.5°
Seat-tube angle74.5°73.5°72°72°
Chainstay / rear center470 mm470 mm470 mm470 mm
Wheelbase1080 mm1096 mm1105 mm1110 mm
Bottom-bracket drop62 mm62 mm62 mm62 mm
Bottom-bracket height301 mm301 mm301 mm301 mm
Reach375 mm380 mm385 mm392 mm
Stack615 mm634 mm644 mm653 mm
Standover height631 mm654 mm682 mm694 mm
Fork offset / rake45 mm45 mm45 mm45 mm
Trail81 mm81 mm81 mm81 mm
Wheel size700c700c700c700c

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes46/30T · 12–32T · 8-speed
Lowest0.94:1 Highest3.83:1 Total range409%
Estimated speed At 90 RPM Lowest gear7.0 mph Highest gear28.8 mph

Rear tire: 700C×45.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z8.3
Retailer offers
Front tire · Original
Bontrager H2 Comp

wire bead, 30tpi, 700x45mm

Retailer offers

Vittoria Terreno Zero Tubeless Tire Anthracite/Black, 700x45

700x45c

Replacement option

Cassette · Original
Shimano HG200

12-32, 8 speed

More parts (6)Fewer parts
Brake pads · Original
Tektro MD-M280 mechanical disc
Saddle · Original
Bontrager Boulevard
Front derailleur · Original
Shimano Tourney TY606

31.8/34.9mm clamp, top swing, dual pull

Rear derailleur · Original
Shimano Acera M3020-8

40T max cog

Seatpost · Original
Bontrager alloy

27.2mm, 12mm offset, 330mm length

Rims · Original
Bontrager Connection

double-wall, 32-hole, 20mm width, schrader valve

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H2 Comp, wire bead, 30tpi, 700x45mm
Rear tire
Bontrager H2 Comp, wire bead, 30tpi, 700x45mm
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Sealed cartridge, 68mm · 68 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alpha Gold Aluminum, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR · Fork: Verve alloy, steel steerer, internal brake routing, 460mm axle-to-crown, ThruSkew · Aluminum

Archived: Group: Shimano, 8-speed · Shifters: Shimano EF500, 8 speed · Front derailleur: Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull · Rear derailleur: Shimano Acera M3020-8, 40T max cog · Crankset: Forged alloy, 46/30, 170mm length · Bottom bracket: Sealed cartridge, 68mm · Cassette: Shimano HG200, 12-32, 8 speed · Chain: KMC Z8.3

Archived: Brakes: Tektro MD-M280 mechanical disc

Archived: Wheel size: 700c · Rims: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve · Hubs: (F) Formula DC-20, alloy, 6-bolt, 100x5mm / (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm · Front tire: Bontrager H2 Comp, wire bead, 30tpi, 700x45mm · Rear tire: Bontrager H2 Comp, wire bead, 30tpi, 700x45mm

Controls and contact points

Archived: Headset: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: Trek Urban, alloy, 25.4mm, comfort sweep, 45mm rise, 620mm width · Stem: XS, S: Bontrager Approved alloy, 25.4mm clamp, 15 degree rise, 60mm / M, L: Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length · Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length · Saddle: Bontrager Boulevard · Pedals: Wellgo nylon platform
