Velopedia Bicycle Archive

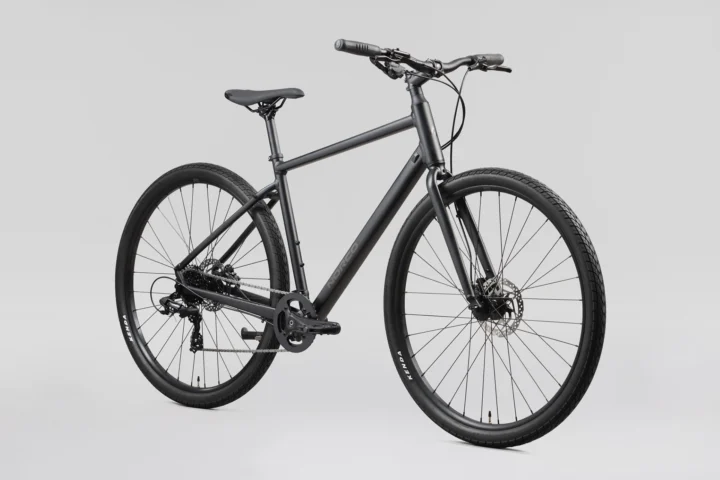

2027 Norco Indie 2
Original manufacturer specifications including 650b wheels, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Hybrid
- Original MSRP
- $679.00
- Sizes
- XS, S, M, L, XL
- Colors
- Violet, Black
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900001328
Model history 3 other years
Frameset
| Frame Construction | Aluminum, Smooth Welds |
|---|---|
| Frame Material | Aluminum |
| Fork | Steel Rigid |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano Altus M315, 8sp |
|---|---|
| Rear Derailleur | Shimano Tourney TX800, 8sp |
| Crankset | ProWheel ZYPHYR Aluminum 38T |
| Bottom Bracket | Sealed Bearing , ST 68mm |
| Cassette | Shimano HG200 12-32T |
| Chain | KMC Z8.3 |
| Pedals | City Flat |
Brakes
| Brakes | (F) Shimano MT200 Hydraulic Disc, Resin Pad / (R) Shimano MT200 Hydraulic Disc, Resin Pad; Rotors: (F) 160mm, 6-Bolt / (R) 160mm, 6-Bolt; Levers: Shimano MT200 |
|---|
Cockpit & Contact Points
| Headset | Zero-Stack Semi-Cartridge |
|---|---|
| Handlebar | Aluminum Ergonomic, 15mm Rise |
| Stem | Alloy 80mm Length, 31.8mm Clamp |
| Saddle | Norco Urban |
| Seatpost | Norco Alloy 27.2mm |
Wheels & Tires
| Hubs | (F) Formula DC-1420, 9x100mm QR, 32h, 6-bolt / (R) Formula DC-1425, 10x135mm QR, HG, 32h, 6-bolt |
|---|---|
| Rims | Aluminum DW, 32h, 700c |
| Front Tire | Kenda K1172 Comfort City 700x50c |
| Rear Tire | Kenda K1172 Comfort City 700x50c |
| Wheel Size | 650b |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS · 650b | S · 650b | M · 650b | L · 650b | XL · 650b |
|---|---|---|---|---|---|
| Seat tube | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Effective top tube | 537 mm | 568 mm | 599 mm | 629 mm | 660 mm |
| Head tube | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Head-tube angle | 70° | 70° | 70° | 70° | 70° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1055 mm | 1087 mm | 1119 mm | 1151 mm | 1183 mm |
| Bottom-bracket drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Bottom-bracket height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Reach | 370 mm | 395 mm | 420 mm | 445 mm | 470 mm |
| Stack | 565 mm | 584 mm | 603 mm | 621 mm | 640 mm |
| Standover height | 588 mm | 625 mm | 666 mm | 702 mm | 739 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheel size | 650b | 650b | 650b | 650b | 650b |
Geometry source: Norco first-party embedded geometry data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS · 650b geometry
Archive context: Its reach of 370 mm sits toward the shorter end. Its bottom-bracket drop of 55 mm sits toward the shallower-drop end. The chainstay of 450 mm sits toward the longer rear-center end.
Compared with 10 distinct hybrid geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS · 650b geometry S · 650b geometry
Archive context: Its bottom-bracket drop of 55 mm sits toward the shallower-drop end. Its wheelbase of 1087 mm sits somewhat longer than typical. The head angle of 70° sits somewhat slacker than typical.
Compared with 21 distinct hybrid geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · 650b geometry M · 650b geometry
Archive context: Its wheelbase of 1119 mm sits toward the longer end. Its reach of 420 mm sits toward the longer end. Its bottom-bracket drop of 55 mm sits toward the shallower-drop end.
Compared with 23 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · 650b geometry L · 650b geometry
Archive context: Its reach of 445 mm sits toward the longer end. Its wheelbase of 1151 mm sits toward the longer end. Its bottom-bracket drop of 55 mm sits toward the shallower-drop end.
Compared with 21 distinct hybrid geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · 650b geometry XL · 650b geometry
Archive context: Its reach of 470 mm sits toward the longer end. Its wheelbase of 1183 mm sits toward the longer end. Its bottom-bracket drop of 55 mm sits toward the shallower-drop end.
Compared with 17 distinct hybrid geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · 650b geometry Parts & serviceability
Find replacement parts
KMC Z8.3
Exact archived model
Shimano HG200 12-32T
Exact archived model
Kenda K1172 Comfort City 700x50c
Named tire and published size
More qualified parts (1)
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Norco Indie 2 · Hybrid · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum, Smooth Welds · Fork: Steel Rigid · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Altus M315, 8sp · Rear derailleur: Shimano Tourney TX800, 8sp · Crankset: ProWheel ZYPHYR Aluminum 38T · Bottom bracket: Sealed Bearing , ST 68mm · Cassette: Shimano HG200 12-32T · Chain: KMC Z8.3
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano MT200 Hydraulic Disc, Resin Pad / (R) Shimano MT200 Hydraulic Disc, Resin Pad; Rotors: (F) 160mm, 6-Bolt / (R) 160mm, 6-Bolt; Levers: Shimano MT200
Wheels and tires
Check wheels and tires →Archived: Wheel size: 650b · Rims: Aluminum DW, 32h, 700c · Hubs: (F) Formula DC-1420, 9x100mm QR, 32h, 6-bolt / (R) Formula DC-1425, 10x135mm QR, HG, 32h, 6-bolt · Front tire: Kenda K1172 Comfort City 700x50c · Rear tire: Kenda K1172 Comfort City 700x50c
Controls and contact points
Archived: Headset: Zero-Stack Semi-Cartridge · Handlebar: Aluminum Ergonomic, 15mm Rise · Stem: Alloy 80mm Length, 31.8mm Clamp · Seatpost: Norco Alloy 27.2mm · Saddle: Norco Urban · Pedals: City Flat
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
