Velopedia Bicycle Archive

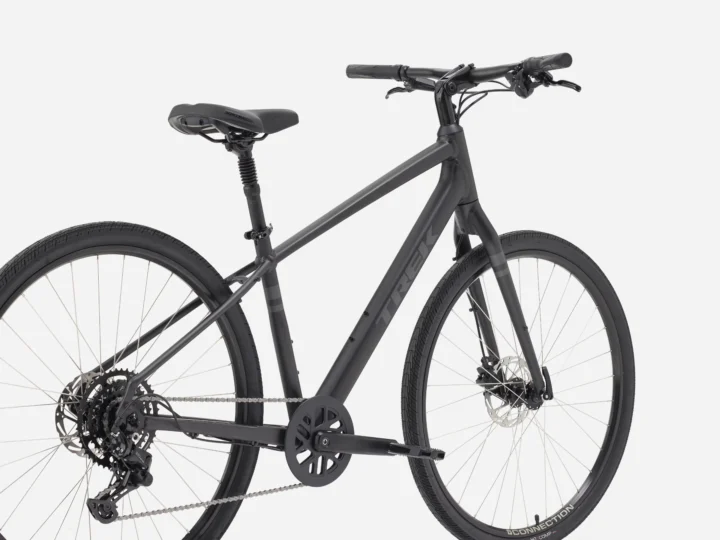

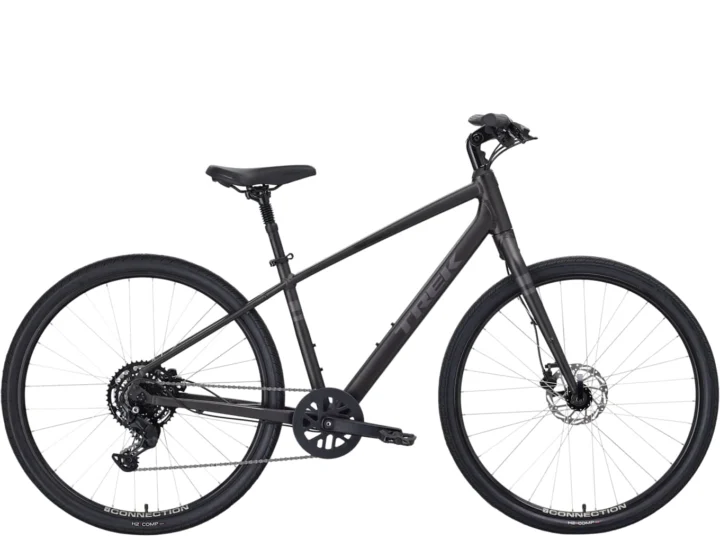

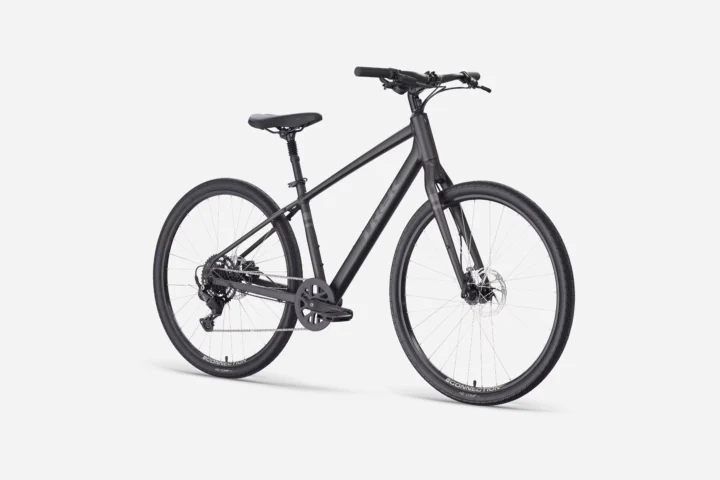

2027 Trek Verve 2
Original specifications: Shimano CUES U4000, 9-speed drivetrain · 700c wheels · M - 13.70 kg / 30.21 lbs published weight.
Planning to sell? Draft your listing
At a glance
Archive #900000773- Model year
- 2027
- Category
- Hybrid
- Original MSRP
- $799.99
- Sizes
- S, M, L, XL
- Colors
- Dark Web, Sedona Red
- Weight
- M - 13.70 kg / 30.21 lbs
- Geometry
- 4 manufacturer sizes
- In this record
- 24 specifications · 8 archived images · original MSRP · geometry
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2027 archived details
- Published colors
- Dark Web, Sedona Red
- Frame
- Aluminum
- Original equipment
- Shimano CUES U4000, 9-speed
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Shimano CUES U4000, 9-speed · 700c
Frameset
| Frame Construction | Alpha Gold Aluminum, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR |
|---|---|
| Frame Material | Aluminum |
| Fork | Verve alloy, steel steerer, internal brake routing, 460mm axle-to-crown, ThruSkew |
| Fork Material | Aluminum |
Drivetrain
| Component Group | Shimano CUES U4000, 9-speed |
|---|---|
| Shifters | Shimano U4000, 9 speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crankset | ProWheel Pro alloy, 40T narrow-wide steel ring, 170mm length |
| Bottom Bracket | Sealed cartridge, 68mm |
| BB Shell Width | 68 mm |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | KMC X Glide, 11-speed, gray |
| Pedals | Bontrager City pedals |
Brakes
| Brakes | Tektro HD-M275 hydraulic disc |
|---|
Cockpit & Contact Points
| Handlebar | S, M: Bontrager alloy, 31.8mm, comfort sweep, 620mm width / L, XL: Bontrager alloy, 31.8mm, comfort sweep, 660mm width |
|---|---|
| Stem | S, M: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length / L, XL: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length |
| Saddle | Bontrager Boulevard |
| Seatpost | Alloy, adjustable suspension, 27.2mm, 300mm length |
Wheels & Tires
| Hubs | (F) Formula DC-20, alloy, 6-bolt, 100x5mm / (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
|---|---|
| Wheels | Bontrager Connection |
| Rims | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Front Tire | Bontrager H2 Comp, wire bead, 30 tpi, 700x45mm |
| Rear Tire | Bontrager H2 Comp, wire bead, 30 tpi, 700x45mm |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 15 measurements
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 430 mm | 485 mm | 550 mm |
| Effective top tube | 552 mm | 575 mm | 598 mm | 612 mm |
| Head tube | 140 mm | 150 mm | 160 mm | 180 mm |
| Head-tube angle | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat-tube angle | 74.5° | 73.5° | 72° | 72° |
| Chainstay / rear center | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1092 mm | 1100 mm | 1103 mm | 1118 mm |
| Bottom-bracket drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Bottom-bracket height | 301 mm | 301 mm | 301 mm | 301 mm |
| Reach | 382 mm | 387 mm | 392 mm | 400 mm |
| Stack | 615 mm | 624 mm | 634 mm | 653 mm |
| Standover height | 718 mm | 769 mm | 803 mm | 846 mm |
| Fork offset / rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Wheel size | 700c | 700c | 700c | 700c |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
wire bead, 30 tpi, 700x45mm

WTB Vulpine S Tire - Tubeless Black, 700x45mm, TCS, Light/Fast Rolling, 120tpi, Dual DNA, SG2
700x45c, TCS, Light/Fast Rolling, 120tpi, Dual DNA, SG2
Replacement option
11-46, 9 speed
More parts (5)Fewer parts
adjustable suspension, 27.2mm, 300mm length
double-wall, 32-hole, 20mm width, schrader valve
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager H2 Comp, wire bead, 30 tpi, 700x45mm
- Rear tire
- Bontrager H2 Comp, wire bead, 30 tpi, 700x45mm
- Drivetrain
- Shimano CUES U4000, 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed cartridge, 68mm · 68 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Alpha Gold Aluminum, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR · Fork: Verve alloy, steel steerer, internal brake routing, 460mm axle-to-crown, ThruSkew · Aluminum
Drivetrain
Check drivetrain wear →Archived: Group: Shimano CUES U4000, 9-speed · Shifters: Shimano U4000, 9 speed · Rear derailleur: Shimano CUES U4000 · Crankset: ProWheel Pro alloy, 40T narrow-wide steel ring, 170mm length · Bottom bracket: Sealed cartridge, 68mm · Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed · Chain: KMC X Glide, 11-speed, gray
Brakes
Inspect the brakes →Archived: Brakes: Tektro HD-M275 hydraulic disc
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Wheels: Bontrager Connection · Rims: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve · Hubs: (F) Formula DC-20, alloy, 6-bolt, 100x5mm / (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm · Front tire: Bontrager H2 Comp, wire bead, 30 tpi, 700x45mm · Rear tire: Bontrager H2 Comp, wire bead, 30 tpi, 700x45mm
Controls and contact points
Archived: Handlebar: S, M: Bontrager alloy, 31.8mm, comfort sweep, 620mm width / L, XL: Bontrager alloy, 31.8mm, comfort sweep, 660mm width · Seatpost: Alloy, adjustable suspension, 27.2mm, 300mm length · Saddle: Bontrager Boulevard · Pedals: Bontrager City pedals
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery8 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
