Velopedia Bicycle Archive

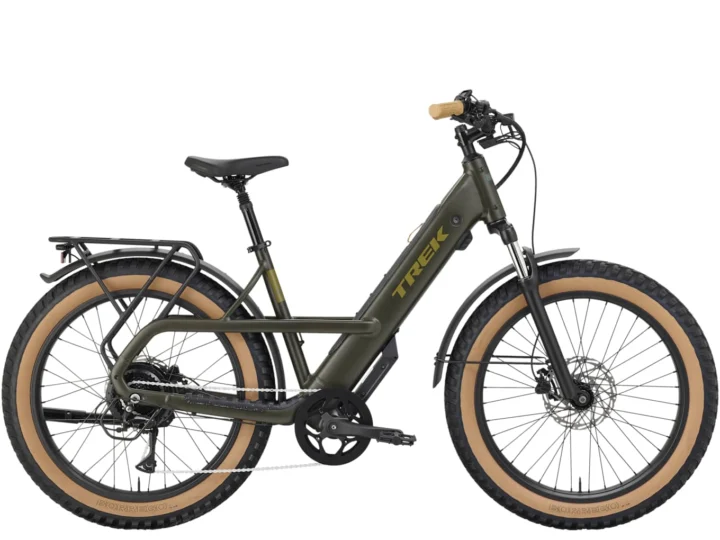

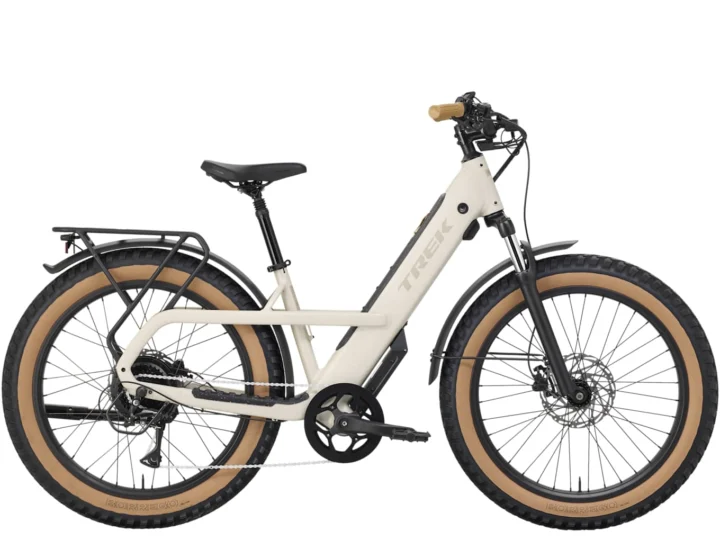

2027 Trek Borrego+

Original specifications: 26" fat wheels · geometry for 2 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000629
Model year
2027
Category
Hybrid
Original MSRP
$2,499.99
Sizes
S-M, M-L
Colors
Gloss Dark Star, Matte Olive Drab, Matte Buff Beige
Geometry
2 manufacturer sizes
In this record
17 specifications · 3 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildAluminum · 26" fat

Manufacturer catalog

Published sizes and colors

2 sizes · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

S-MM-L

Published colors

Gloss Dark StarMatte Olive DrabMatte Buff Beige

Frameset

Frame ConstructionAlloy Step thru
Frame MaterialAluminum
ForkSuspension fork, 80mm travel, coil spring

Drivetrain

ShiftersShimano M315, 8 speed
Rear DerailleurShimano Acera M3020-8, 40T max cog
CranksetForged Alloy, 165mm length
CassetteCassette,11-34, 8 speed
ChainKMC Z8.3 RB, rust resistant
PedalsNylon platform

Cockpit & Contact Points

Headset1-1/8'' threadless, sealed cartridge bearings
HandlebarElectra Vale Go
SaddleBontrager Boulevard
SeatpostAlloy, suspension, 31.6mm, 300mm length

Wheels & Tires

Wheels(F) Trek Borrego, 135mm OLD, bolt on axle, 36H, 26'' / (R) Trek Borrego, hub drive motor, bolt on axle, 36H, 26''
Front TireBontrager Borrego, wire bead, 60 tpi, 26X4.00
Rear TireBontrager Borrego, wire bead, 60 tpi, 26X4.00
Wheel Size26" fat

Geometry

2 sizes · 15 measurements

Frame measurements by size.

All geometry measurements2 sizes · 15 measurements
MeasurementS-MM-L
Seat tube305 mm383 mm
Effective top tube602 mm643 mm
Head tube150 mm170 mm
Head-tube angle69°69°
Seat-tube angle72°72°
Chainstay / rear center530 mm530 mm
Wheelbase1142 mm1184 mm
Bottom-bracket drop75 mm75 mm
Bottom-bracket height302 mm302 mm
Reach335 mm370 mm
Stack692 mm710 mm
Standover height594 mm594 mm
Fork offset / rake43 mm43 mm
Trail99 mm99 mm
Wheel size26" fat26" fat

Dimensions as recorded.

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z8.3 RB

rust resistant

Retailer offers
Front tire · Original
Bontrager Borrego

wire bead, 60 tpi, 26X4.00

Retailer offers

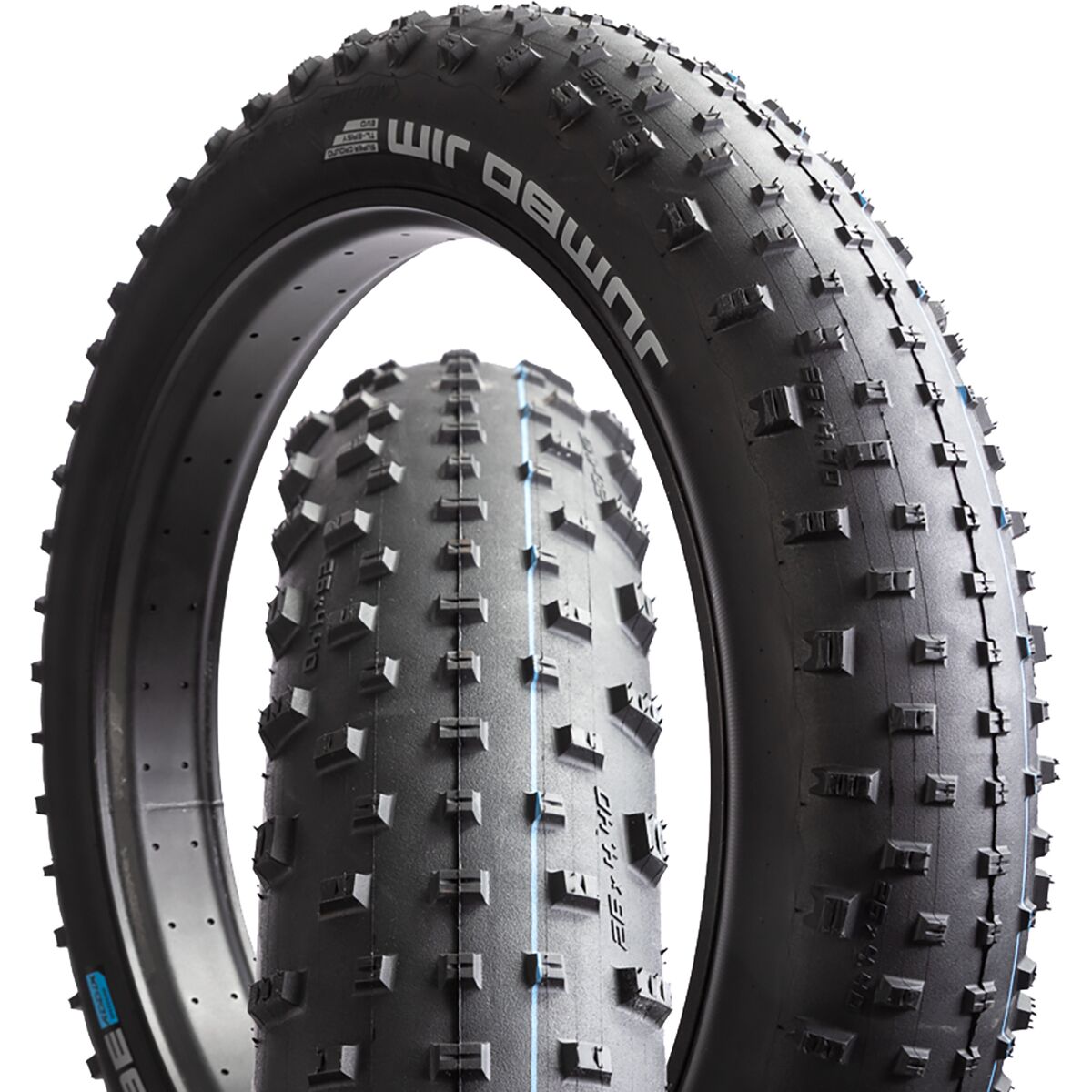

Schwalbe Jumbo Jim Addix Evolution 26in Fat Bike Tire Black, SpeedGrip/Super Ground, 26x4

Replacement option

Saddle · Original
Bontrager Boulevard
More parts (2)Fewer parts
Rear derailleur · Original
Shimano Acera M3020-8

40T max cog

Seatpost · Original
Alloy

suspension, 31.6mm, 300mm length

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager Borrego, wire bead, 60 tpi, 26X4.00
Rear tire
Bontrager Borrego, wire bead, 60 tpi, 26X4.00
Drivetrain
8-speed
Seatpost diameter
31.6 mm
Equipment inspection checks 14 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 14 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alloy Step thru · Fork: Suspension fork, 80mm travel, coil spring

Archived: Fork: Suspension fork, 80mm travel, coil spring

Archived: Shifters: Shimano M315, 8 speed · Rear derailleur: Shimano Acera M3020-8, 40T max cog · Crankset: Forged Alloy, 165mm length · Cassette: Cassette,11-34, 8 speed · Chain: KMC Z8.3 RB, rust resistant

Archived: Wheel size: 26" fat · Wheels: (F) Trek Borrego, 135mm OLD, bolt on axle, 36H, 26'' / (R) Trek Borrego, hub drive motor, bolt on axle, 36H, 26'' · Front tire: Bontrager Borrego, wire bead, 60 tpi, 26X4.00 · Rear tire: Bontrager Borrego, wire bead, 60 tpi, 26X4.00

Controls and contact points

Archived: Headset: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: Electra Vale Go · Seatpost: Alloy, suspension, 31.6mm, 300mm length · Saddle: Bontrager Boulevard · Pedals: Nylon platform

Archived: Trek Borrego+ · electric-assist identification
