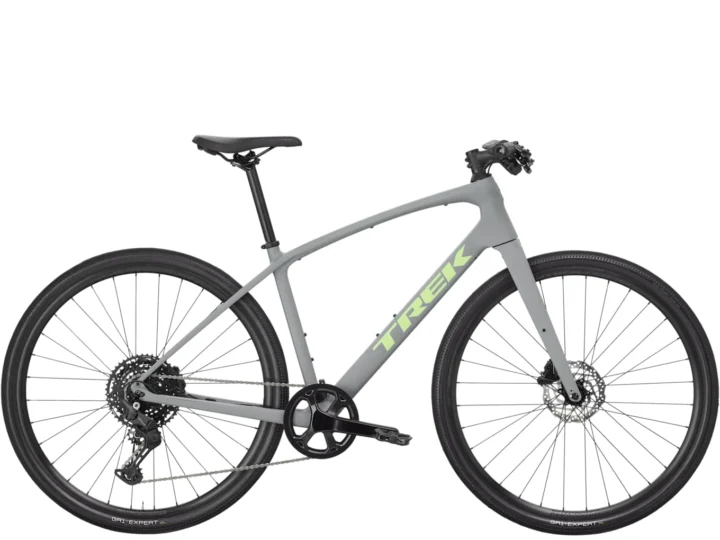

2027 Trek FX Sport SL 4

Original specifications: Shimano CUES, 10-speed drivetrain · 700c wheels · M - 10.90 kg / 24.04 lbs published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000776
Model year
2027
Category
Hybrid
Original MSRP
$1,999.99
Sizes
XS, S, M, L, XL
Colors
Matte Deep Smoke, Desert Sage
Weight
M - 10.90 kg / 24.04 lbs
Geometry
5 manufacturer sizes
In this record
22 specifications · 3 archived images · original MSRP · geometry
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2027 archived details

Published colors
Matte Deep Smoke, Desert Sage
Frame
Carbon fiber
Original equipment
Shimano CUES, 10-speed

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildCarbon fiber · Shimano CUES, 10-speed · 700c

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Matte Deep SmokeDesert Sage

Frameset

Frame Construction400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew
Frame MaterialCarbon fiber
ForkCarbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew
Fork MaterialCarbon fiber

Drivetrain

Component GroupShimano CUES, 10-speed
ShiftersShimano CUES U6000 w/optical gear display, 10 speed
Rear DerailleurShimano CUES U6000 GS
CranksetXS, S: Prowheel alloy, 42T narrow-wide ring, 170mm length / M, L, XL: Prowheel alloy, 42T narrow-wide ring, 175mm length
CassetteShimano CUES LG300, LINKGLIDE, 11-48, 10 speed
ChainXS, S, M, L, XL: KMC X Glide, 11-speed, gray / XS, S, M, L, XL: Shimano LG500, 9/10/11 speed
PedalsBontrager City pedals

Brakes

BrakesShimano hydraulic disc, MT201 lever, UR300 caliper

Cockpit & Contact Points

HeadsetBontrager Headset Expander Plug and Top Cap
HandlebarXS, S: Bontrager alloy, 31.8mm, 15mm rise, 600mm width / M, L, XL: Bontrager alloy, 31.8mm, 15mm rise, 660mm width
StemXS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length / S, M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length / L, XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
SaddleBontrager Commuter Comp
SeatpostBontrager alloy, 27.2mm, 12mm offset, 330mm length

Wheels & Tires

Hubs(F) Formula CL-51 alloy, 100x5mm / (R) Formula CL-52 alloy, 135x5mm
RimsBontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve
Front TireBontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Rear TireBontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Wheel Size700c

Geometry

5 sizes · 15 measurements

Frame measurements by size.

All geometry measurements5 sizes · 15 measurements
MeasurementXSSMLXL
Seat tube356 mm406 mm457 mm508 mm559 mm
Effective top tube528 mm543 mm563 mm583 mm613 mm
Head tube115 mm140 mm165 mm190 mm215 mm
Head-tube angle70°70.5°71°71.5°72.5°
Seat-tube angle75°74.5°74°73.5°72.5°
Chainstay / rear center442 mm442 mm442 mm442 mm442 mm
Wheelbase1047 mm1054 mm1065 mm1075 mm1082 mm
Bottom-bracket drop65 mm65 mm65 mm65 mm65 mm
Bottom-bracket height285 mm285 mm285 mm285 mm285 mm
Reach383 mm385 mm393 mm400 mm410 mm
Stack543 mm568 mm594 mm620 mm648 mm
Standover height708 mm751 mm787 mm812 mm848 mm
Fork offset / rake50 mm50 mm50 mm50 mm50 mm
Trail74 mm71 mm68 mm64 mm58 mm
Wheel size700c700c700c700c700c

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 11–48T
Lowest0.88:1 Highest3.82:1 Total range436%
Estimated speed At 90 RPM Lowest gear6.5 mph Highest gear28.3 mph

Rear tire: 700C×40.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
