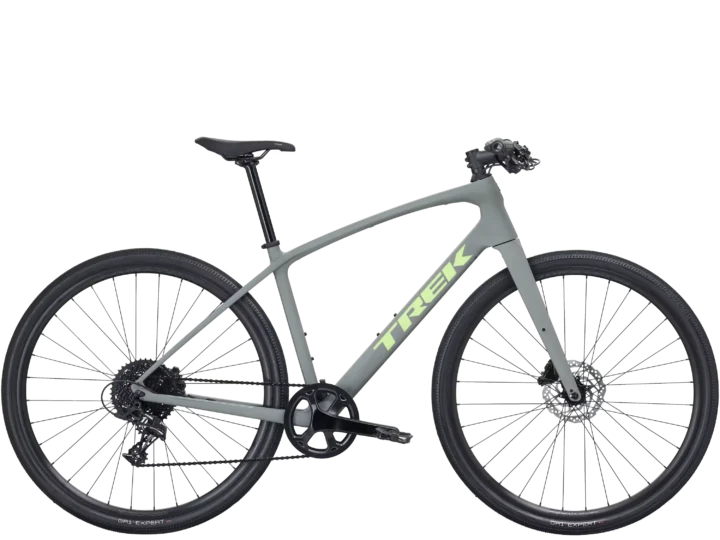

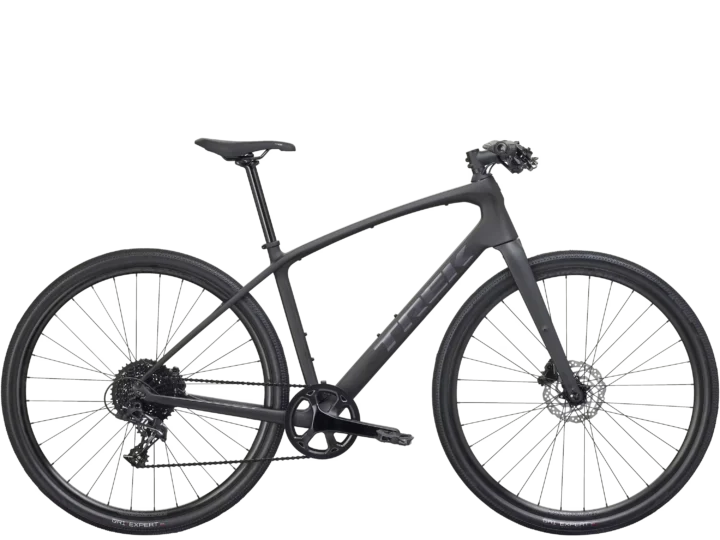

2027 Trek FX Sport SL 5
Original specifications: SRAM Apex, 11-speed drivetrain · 700c wheels · M - 10.60 kg / 23.37 lbs published weight.
Planning to sell? Draft your listing
At a glance
Archive #900000778- Model year
- 2027
- Category
- Hybrid
- Original MSRP
- $2,299.99
- Sizes
- XS, S, M, L, XL
- Colors
- Buff Beige
- Weight
- M - 10.60 kg / 23.37 lbs
- Geometry
- 5 manufacturer sizes
- In this record
- 22 specifications · 3 archived images · original MSRP · geometry
Original buildCarbon fiber · SRAM Apex, 11-speed · 700c
Frameset
| Frame Construction | 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew |
| Fork Material | Carbon fiber |
Drivetrain
| Component Group | SRAM Apex, 11-speed |
|---|---|
| Shifters | SRAM Apex, 11 speed |
| Rear Derailleur | SRAM Apex 1, long cage, 42T max cog |
| Crankset | XS, S: Prowheel alloy, 42T narrow-wide ring, 170mm length / M, L, XL: Prowheel alloy, 42T narrow-wide ring, 175mm length |
| Cassette | microSHIFT XLE, 11-42, 11 speed |
| Chain | KMC X11 |
| Pedals | Bontrager City pedals |
Brakes
| Brakes | Shimano hydraulic disc, MT201 lever, UR300 caliper |
|---|
Cockpit & Contact Points
| Headset | Bontrager Headset Expander Plug and Top Cap |
|---|---|
| Handlebar | XS, S: Bontrager alloy, 31.8mm, 15mm rise, 600mm width / M, L, XL: Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
| Stem | XS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length / S, M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length / L, XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
Wheels & Tires
| Hubs | (F) Formula CL-51 alloy, 100x5mm / (R) Formula CL-52 alloy, 135x5mm |
|---|---|
| Wheels | Bontrager Paradigm |
| Rims | Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve |
| Front Tire | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Rear Tire | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 15 measurements
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Effective top tube | 528 mm | 543 mm | 563 mm | 583 mm | 613 mm |
| Head tube | 115 mm | 140 mm | 165 mm | 190 mm | 215 mm |
| Head-tube angle | 70° | 70.5° | 71° | 71.5° | 72.5° |
| Seat-tube angle | 75° | 74.5° | 74° | 73.5° | 72.5° |
| Chainstay / rear center | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1047 mm | 1054 mm | 1065 mm | 1075 mm | 1082 mm |
| Bottom-bracket drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Bottom-bracket height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Reach | 383 mm | 385 mm | 393 mm | 400 mm | 410 mm |
| Stack | 543 mm | 568 mm | 594 mm | 620 mm | 648 mm |
| Standover height | 708 mm | 751 mm | 787 mm | 812 mm | 848 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 71 mm | 68 mm | 64 mm | 58 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
