Velopedia Bicycle Archive

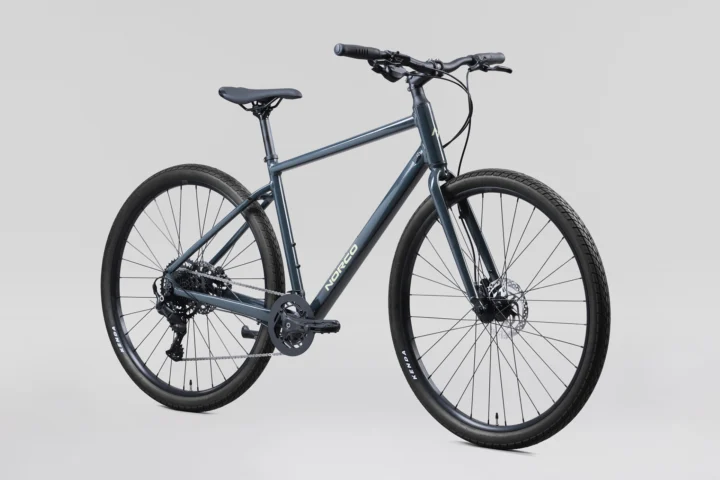

2027 Norco Indie 1

Original manufacturer specifications including 700c wheels, geometry for 4 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2027
Category
Hybrid
Original MSRP
$779.00
Sizes
S, M, L, XL
Colors
Navy Grey
Geometry
4 manufacturer sizes · Geometry context
Record coverage
22 preserved details · 5 archived images · original MSRP · preserved geometry
Archive ID
900001330
Model history 3 other years
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Navy Grey

Frameset

Frame ConstructionAluminum, Smooth Welds
Frame MaterialAluminum
ForkSteel Rigid
Fork MaterialSteel

Drivetrain

ShiftersShimano CUES SL-U4000, 9 Speed
Rear DerailleurShimano CUES RD-U4000, 9 Speed
CranksetProWheel ZYPHYR Aluminum 38T
Bottom BracketSealed Bearing , ST 68mm
CassetteShimano CUES CS-LG300 11-46T
ChainKMC XGlide
PedalsJr. MTB Flat, 9/16

Brakes

Brakes(F) Shimano MT200 Hydraulic Disc, Resin Pad / (R) Shimano MT200 Hydraulic Disc, Resin Pad; Rotors: (F) 160mm, 6-Bolt / (R) 160mm, 6-Bolt; Levers: Shimano MT200

Cockpit & Contact Points

HeadsetZero-Stack Semi-Cartridge
HandlebarAluminum Ergonomic, 15mm Rise
StemAlloy 80mm Length, 31.8mm Clamp
SaddleNorco Urban
SeatpostNorco Alloy 27.2mm

Wheels & Tires

Hubs(F) Formula DC-1420, 9x100mm QR, 32h, 6-bolt / (R) Formula DC-1425, 10x135mm QR, HG, 32h, 6-bolt
RimsAluminum DW, 32h, 700c
Front TireKenda E-Venture 700x50c
Rear TireKenda E-Venture 700x50c
Wheel Size700c

Size-specific frame data

Geometry

4 sizes · 17 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementS · 700cM · 700cL · 700cXL · 700c
Seat tube440 mm485 mm535 mm580 mm
Effective top tube545 mm571 mm597 mm623 mm
Head tube135 mm160 mm185 mm210 mm
Head-tube angle69°69.5°69.5°69.5°
Seat-tube angle74.5°74.2°73.8°73.5°
Chainstay / rear center450 mm450 mm450 mm450 mm
Wheelbase1072 mm1092 mm1116 mm1139 mm
Bottom-bracket drop80 mm80 mm80 mm80 mm
Bottom-bracket height285.5 mm285.5 mm285.5 mm285.5 mm
Reach385 mm400 mm415 mm430 mm
Stack578 mm603 mm627 mm650 mm
Standover height625 mm730 mm776 mm818 mm
Fork offset / rake50 mm50 mm50 mm50 mm
Trail83 mm83 mm83 mm83 mm
Crank length170 mm175 mm175 mm175 mm
Stem length70 mm70 mm70 mm70 mm
Wheel size700c700c700c700c

Geometry source: Norco first-party embedded geometry data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

S · 700c geometry

Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its trail of 83 mm sits toward the higher-trail end. The head angle of 69° sits toward the slacker end.

Compared with 21 distinct hybrid geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · 700c geometry

Parts & serviceability

Find replacement parts

3 top part searches
CassetteExact archived part
Shimano CUES CS-LG300 11-46T Interpreted as Shimano CUES · 9-speed Exact archived model
Front tireMatching fit standard
Kenda E-Venture 700x50c Named tire and published size
Rear derailleurExact archived part
Shimano CUES RD-U4000, 9 Speed Interpreted as Shimano CUES · 9-speed · mechanical Exact archived model
More qualified parts (2)
ShiftersExact archived part
Shimano CUES SL-U4000, 9 Speed Interpreted as Shimano CUES · 9-speed · mechanical Exact archived model
SeatpostMatching fit standard
27.2 mm seatpost Published diameter — verify length and setback

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
  • BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
  • DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 9-speed system.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
0 of 19 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2027 Norco Indie 1 · Hybrid · Published sizes: S, M, L, XL

Archived: Frame: Aluminum, Smooth Welds · Fork: Steel Rigid · Steel

Archived: Shifters: Shimano CUES SL-U4000, 9 Speed · Rear derailleur: Shimano CUES RD-U4000, 9 Speed · Crankset: ProWheel ZYPHYR Aluminum 38T · Bottom bracket: Sealed Bearing , ST 68mm · Cassette: Shimano CUES CS-LG300 11-46T · Chain: KMC XGlide

Archived: Brakes: (F) Shimano MT200 Hydraulic Disc, Resin Pad / (R) Shimano MT200 Hydraulic Disc, Resin Pad; Rotors: (F) 160mm, 6-Bolt / (R) 160mm, 6-Bolt; Levers: Shimano MT200

Archived: Wheel size: 700c · Rims: Aluminum DW, 32h, 700c · Hubs: (F) Formula DC-1420, 9x100mm QR, 32h, 6-bolt / (R) Formula DC-1425, 10x135mm QR, HG, 32h, 6-bolt · Front tire: Kenda E-Venture 700x50c · Rear tire: Kenda E-Venture 700x50c

Controls and contact points

Archived: Headset: Zero-Stack Semi-Cartridge · Handlebar: Aluminum Ergonomic, 15mm Rise · Stem: Alloy 80mm Length, 31.8mm Clamp · Seatpost: Norco Alloy 27.2mm · Saddle: Norco Urban · Pedals: Jr. MTB Flat, 9/16

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
