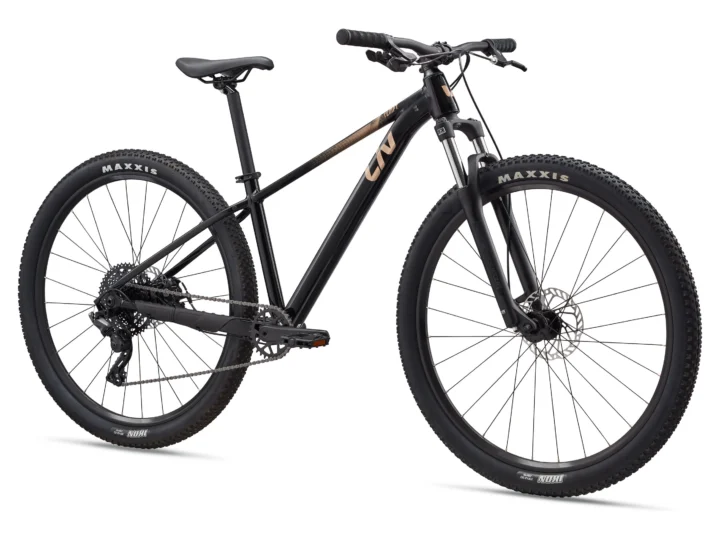

2025 Liv Tempt 4

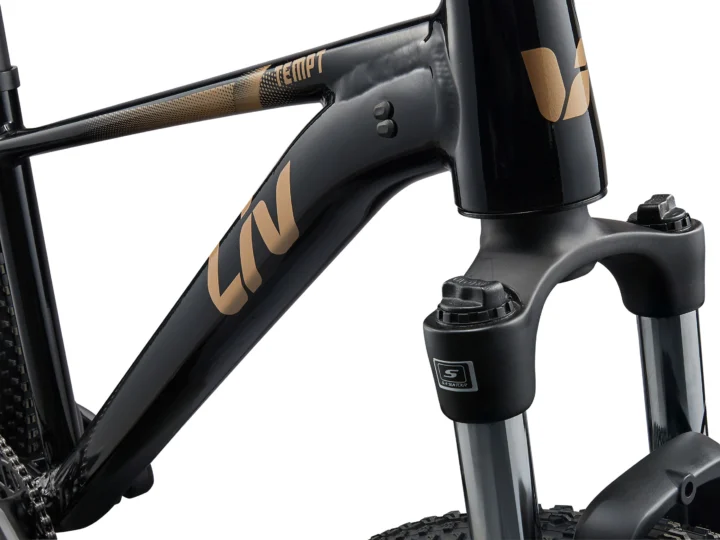

Archived: Frame: ALUXX-grade aluminum, disc · Fork: SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm · Steel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

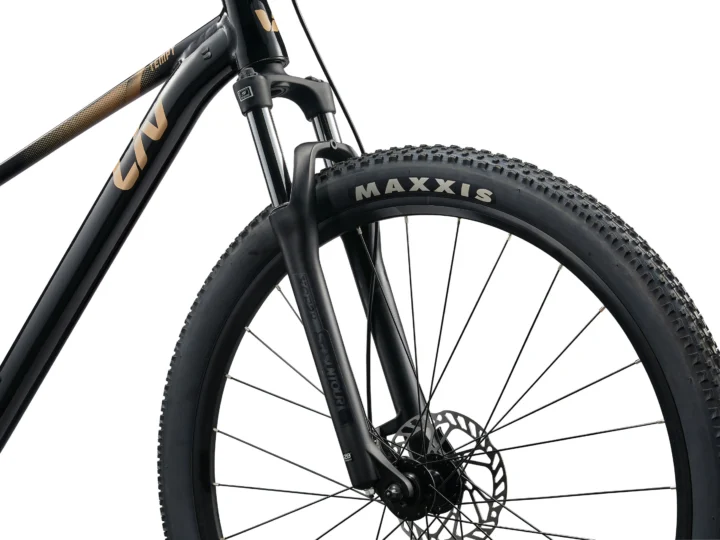

Archived: Fork: SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

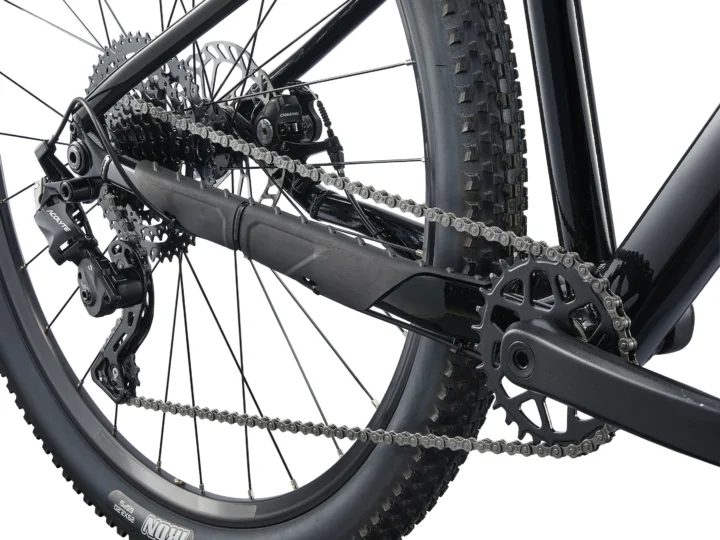

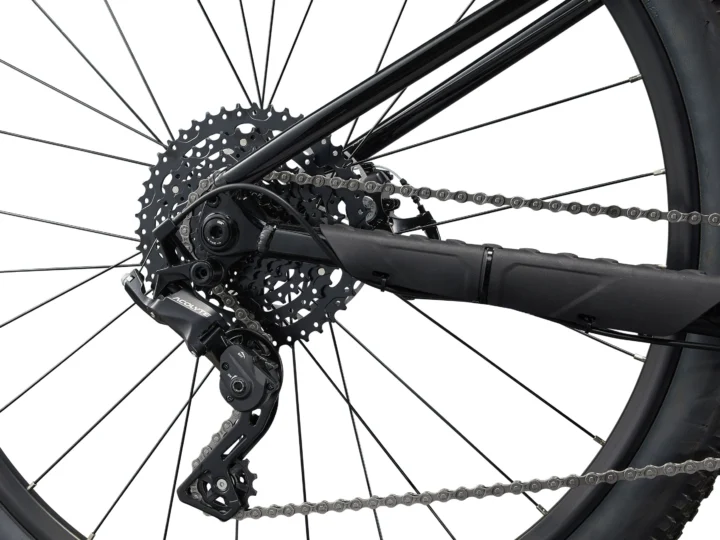

Archived: Shifters: Microshift, Acolyte 1x8, SL-M6180-R · Rear derailleur: Microshift, Acolyte 1x8, RD-M5185M with clutch · Crankset: ProWheel C10Y-NW 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm · Bottom bracket: cartridge · Cassette: Microshift, Acolyte, CS-H083, 12-46 · Chain: KMC 8.3

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

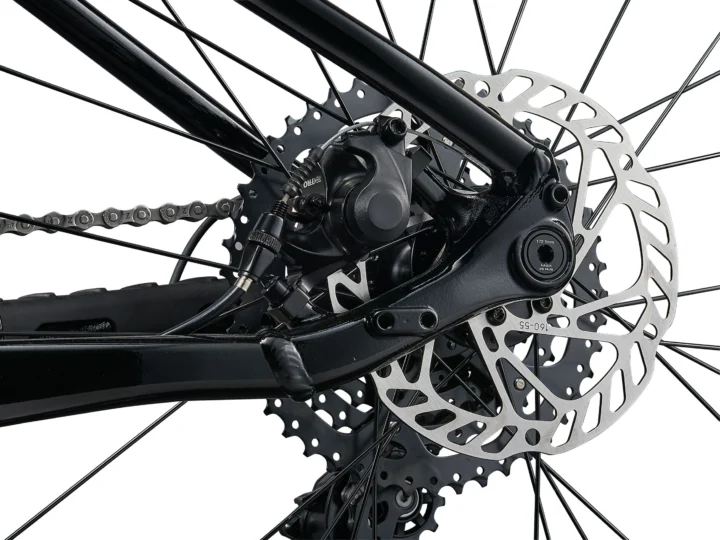

Archived: Brakes: TKB-172, mechanical [F]160mm, [R]160mm rotors

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Rims: 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width · Hubs: alloy, sealed bearing · Front tire: Maxxis Ikon 27.5x2.4" or 29x2.4", 60tpi wire bead · Rear tire: Maxxis Ikon 27.5x2.4" or 29x2.4", 60tpi wire bead

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.

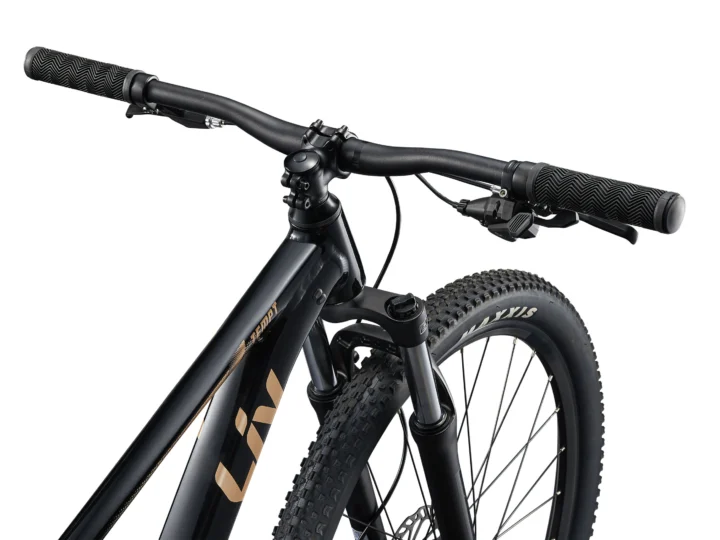

Archived: Handlebar: Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm · Stem: Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50 · Seatpost: Giant Sport, 30.9mm 27.5" XS:100x350mm, S: 100x350mm 29" S: 100x350mm, M:100x375mm, L : 100x375mm · Saddle: Contact Ergo · Pedals: MTB caged

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
