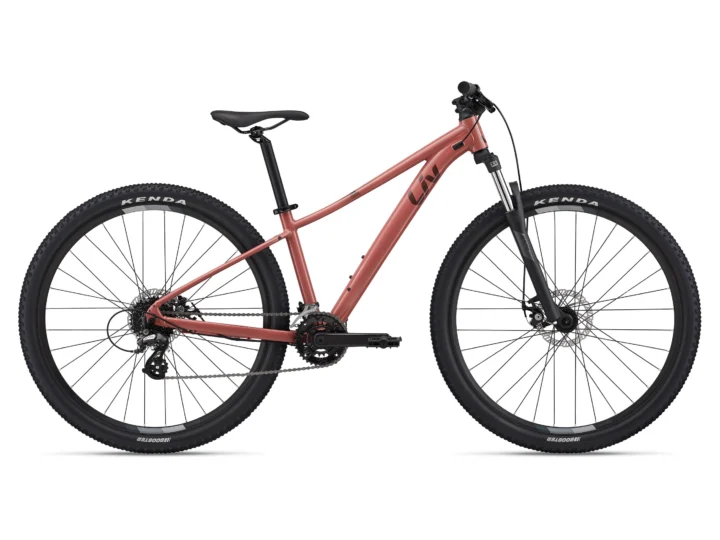

2022 Liv Tempt 4
Original manufacturer specifications including 27.5" - 13.82 kg (30 lb 7oz) - Size (S) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2022
- Category
- Mountain
- Original MSRP
- $630.00
- Sizes
- 27.5": XS, S, M 29": S, M, L
- Colors
- Black Chrome, Terra Roza
- Weight
- 27.5" - 13.82 kg (30 lb 7oz) - Size (S)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900002102
Model history 2 other years
Frameset
| Frame Construction | ALUXX-Grade Aluminum, disc |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCE XS: 80mm travel (27.5) S: 100mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (29) |
| Rear Shock | N/A |
Drivetrain
| Shifters | microSHIFT SL-M718, 1x8 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | microSHIFT RD-M619 |
| Crankset | ProWheel A10XPP, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (27.5) / 170mm (29) L: 175mm (29) |
| Bottom Bracket | cartridge |
| Cassette | microSHIFT CS-H083, 12-46 |
| Chain | KMC 8.3 |
| Pedals | MTB caged |
Brakes
| Brakes | TKB-172, mechanical [F]160mm, [R]160mm rotors |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 31.8mm XS: 670mm (27.5) S: 670mm (27.5) / 670mm (29) M: 750mm (27.5) / 750mm (29) L: 750mm (29) |
|---|---|
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (27.5) / 50mm (29) L: 50mm (29) |
| Saddle | Liv Sport |
| Seatpost | Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm (29) L: 375mm (29) |
Wheels & Tires
| Hubs | alloy, ball bearing |
|---|---|
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Spokes | stainless, 14g |
| Front Tire | Kenda Booster 27.5" or 29x2.2", wire bead |
| Rear Tire | Kenda Booster 27.5" or 29x2.2", wire bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|---|
| Seat tube | 325 mm | 365 mm | 370 mm | 420 mm | 450 mm |
| Top tube | 542 mm | 571 mm | 570 mm | 590 mm | 610 mm |
| Head tube | 95 mm | 100 mm | 90 mm | 95 mm | 105 mm |
| Head-tube angle | 68° | 68° | 68.5° | 68.5° | 68.5° |
| Seat-tube angle | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 440 mm | 440 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1072 mm | 1104 mm | 1119 mm | 1139 mm | 1160 mm |
| Bottom-bracket drop | 40 mm | 45 mm | 55 mm | 55 mm | 55 mm |
| Reach | 383 mm | 405 mm | 399 mm | 418 mm | 435 mm |
| Stack | 554 mm | 579 mm | 596 mm | 601 mm | 610 mm |
| Standover height | 663 mm | 686 mm | 705 mm | 737 mm | 757 mm |
| Fork offset / rake | 40 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 98.9 mm | 94.3 mm | 94.3 mm | 94.3 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 175 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar width | 730 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" |
Geometry source: Liv first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its stack of 554 mm sits toward the lower end. Its reach of 383 mm sits toward the shorter end. The chainstay of 440 mm sits toward the longer rear-center end.
Compared with 26 distinct mountain geometries in the XS-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (27.5") geometry
Archive context: Its stack of 579 mm sits toward the lower end. Its wheelbase of 1104 mm sits toward the shorter end. Its trail of 98.9 mm sits toward the lower-trail end.
Compared with 100 distinct mountain geometries in the Small-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (27.5") geometry S (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its trail of 94.3 mm sits toward the lower-trail end. Its reach of 399 mm sits toward the shorter end.
Compared with 100 distinct mountain geometries in the Small-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 418 mm sits toward the shorter end. Its trail of 94.3 mm sits toward the lower-trail end.
Compared with 101 distinct mountain geometries in the Medium-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its trail of 94.3 mm sits toward the lower-trail end. Its reach of 435 mm sits toward the shorter end.
Compared with 93 distinct mountain geometries in the Large-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry Parts & serviceability
Find replacement parts
KMC 8.3
Named component · published drivetrain speed — verify exact version
microSHIFT CS-H083, 12-46
Exact archived model
microSHIFT RD-M619
Exact archived model
More qualified parts (1)
microSHIFT SL-M718, 1x8
Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Liv Tempt 4 · Mountain · Published sizes: 27.5": XS, S, M 29": S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-Grade Aluminum, disc · Fork: SR Suntour XCE XS: 80mm travel (27.5) S: 100mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (29)
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour XCE XS: 80mm travel (27.5) S: 100mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (29)
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT SL-M718, 1x8 · Rear derailleur: microSHIFT RD-M619 · Crankset: ProWheel A10XPP, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (27.5) / 170mm (29) L: 175mm (29) · Bottom bracket: cartridge · Cassette: microSHIFT CS-H083, 12-46 · Chain: KMC 8.3
Brakes
Inspect the brakes →Archived: Brakes: TKB-172, mechanical [F]160mm, [R]160mm rotors
Wheels and tires
Check wheels and tires →Archived: Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width · Hubs: alloy, ball bearing · Front tire: Kenda Booster 27.5" or 29x2.2", wire bead · Rear tire: Kenda Booster 27.5" or 29x2.2", wire bead
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 31.8mm XS: 670mm (27.5) S: 670mm (27.5) / 670mm (29) M: 750mm (27.5) / 750mm (29) L: 750mm (29) · Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (27.5) / 50mm (29) L: 50mm (29) · Seatpost: Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm (29) L: 375mm (29) · Saddle: Liv Sport · Pedals: MTB caged
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
