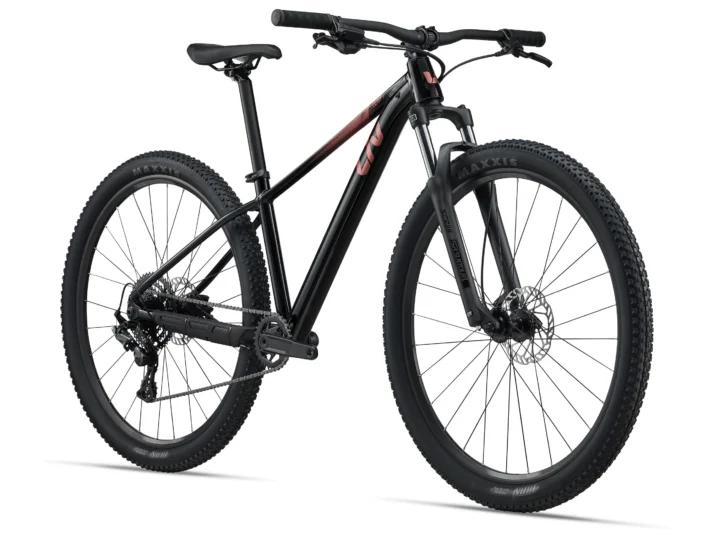

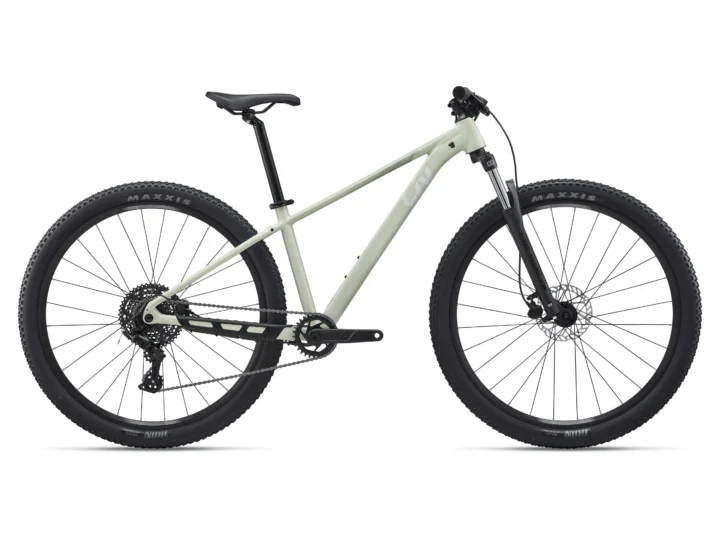

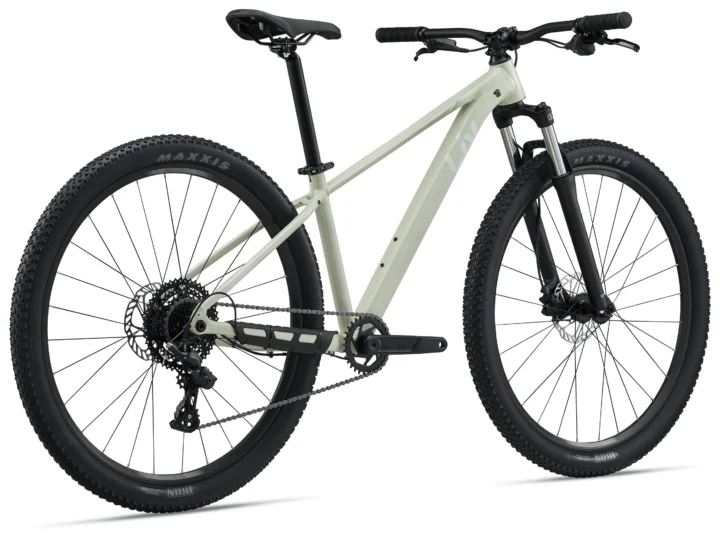

2027 Liv Tempt 4
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Mountain
- Original MSRP
- $650.00
- Sizes
- 27.5": XS, S, 29": S, M, L
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 20 preserved details · 4 archived images · original MSRP · preserved geometry
- Archive ID
- 900002106
Model history 2 other years
Frameset
| Frame Construction | ALUXX-grade aluminum, disc |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm |
| Fork Material | Steel |
Drivetrain
| Shifters | Microshift Acolyte 1x8 SL-M6180-R |
|---|---|
| Rear Derailleur | Microshift Acolyte 1x8 RD-M5185M w clutch |
| Crankset | ProWheel C10Y-NW 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | FP-B902W |
| Cassette | Microshift Acolyte CS-H083 12-46 |
| Chain | KMC 8.3 |
Brakes
| Brakes | TKD-176 customized mechanical disc |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm |
|---|---|
| Stem | Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50 |
| Saddle | Contact ergo |
| Seatpost | Giant Sport, 30.9mm27.5"XS:100x350mm, S: 100x350mm29"S: 100x350mm, M:100x375mm, L : 100x375mm |
Wheels & Tires
| Hubs | alloy, sealed bearing |
|---|---|
| Rims | 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width |
| Spokes | stainless, 14g |
| Front Tire | Maxxis Ikon 29x2.2"" Ikon 27.5x2.2"" 60 TPI wire bead |
| Rear Tire | Maxxis Ikon 29x2.2"" Ikon 27.5x2.2"" 60 TPI wire bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|
| Seat tube | 330 mm | 380 mm | 410 mm | 440 mm |
| Top tube | 538 mm | 571 mm | 599 mm | 629 mm |
| Head tube | 90 mm | 90 mm | 100 mm | 120 mm |
| Head-tube angle | 67° | 67.5° | 67.5° | 67.5° |
| Seat-tube angle | 74° | 74.5° | 74.5° | 74.5° |
| Chainstay / rear center | 440 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1080 mm | 1129 mm | 1158 mm | 1190 mm |
| Bottom-bracket drop | 45 mm | 55 mm | 55 mm | 55 mm |
| Reach | 381 mm | 407 mm | 432 mm | 457 mm |
| Stack | 548 mm | 593 mm | 602 mm | 620 mm |
| Standover height | 680 mm | 689 mm | 708 mm | — |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105.2 mm | 108.9 mm | 108.9 mm | 108.9 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 50 mm | 60 mm |
| Handlebar width | 690 mm | 690 mm | 690 mm | 760 mm |
Geometry source: Liv first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its stack of 548 mm sits toward the lower end. Its wheelbase of 1080 mm sits toward the shorter end. Its reach of 381 mm sits toward the shorter end.
Compared with 55 distinct mountain geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 407 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 168 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 432 mm sits toward the shorter end. Its stack of 602 mm sits toward the lower end.
Compared with 171 distinct mountain geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 457 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 167 distinct mountain geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry Parts & serviceability
Find replacement parts
KMC 8.3
Named component · published drivetrain speed — verify exact version
Microshift Acolyte CS-H083 12-46
Interpreted as microSHIFT Acolyte · 8-speed Exact archived model
Microshift Acolyte 1x8 RD-M5185M w clutch
Interpreted as microSHIFT Acolyte · 8-speed Exact archived model
More qualified parts (1)
Microshift Acolyte 1x8 SL-M6180-R
Interpreted as microSHIFT Acolyte · 8-speed Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesMake sure both cables move freely and the calipers release cleanly. Check pad thickness, rotor wear and rotor alignment.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Liv Tempt 4 · Mountain · Published sizes: 27.5": XS, S, 29": S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, disc · Fork: SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm · Steel
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Microshift Acolyte 1x8 SL-M6180-R · Rear derailleur: Microshift Acolyte 1x8 RD-M5185M w clutch · Crankset: ProWheel C10Y-NW 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm · Bottom bracket: FP-B902W · Cassette: Microshift Acolyte CS-H083 12-46 · Chain: KMC 8.3
Brakes
Inspect the brakes →Archived: Brakes: TKD-176 customized mechanical disc
Wheels and tires
Check wheels and tires →Archived: Rims: 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width · Hubs: alloy, sealed bearing · Front tire: Maxxis Ikon 29x2.2"" Ikon 27.5x2.2"" 60 TPI wire bead · Rear tire: Maxxis Ikon 29x2.2"" Ikon 27.5x2.2"" 60 TPI wire bead
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm · Stem: Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50 · Seatpost: Giant Sport, 30.9mm27.5"XS:100x350mm, S: 100x350mm29"S: 100x350mm, M:100x375mm, L : 100x375mm · Saddle: Contact ergo
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
