Velopedia Bicycle Archive

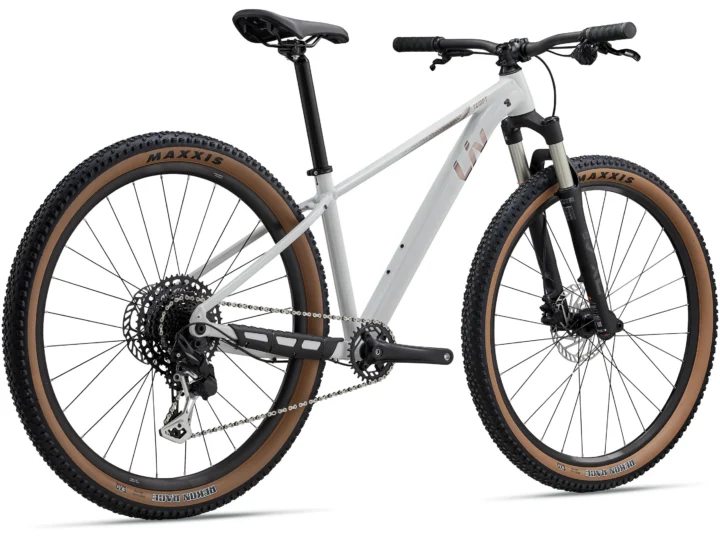

2027 Liv Tempt 1
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Mountain
- Original MSRP
- $1,000.00
- Sizes
- XS, S, M, L
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900002108
Model history 1 other year
Frameset
| Frame Construction | ALUXX-grade aluminum, disc |
|---|---|
| Frame Material | Aluminum |
| Fork | GIANT SXC32-2 RCL Alloy SingleAir 29"/27.5" 15x110 TA XS: 80mm (27.5") Spring: Air, S: 80mm (27.5"), 100mm(29") Spring: Air, M: 100mm(/29") Spring: Air, L: 100mm(/29") Spring: Air |
| Fork Material | Aluminum |
Drivetrain
| Shifters | Microshift Advent MX 1x11 SL-M7115-R |
|---|---|
| Rear Derailleur | Microshift Advent 1x11 RD-M7015M |
| Crankset | ProWheel Charm Steel, 52.5mm chainline, 32t (27.5"), 30t w/O Chain Guard for (29") XS: 165mm(27.5"), S: 165mm(27.5")/170mm(29"), M: 170mm(29"), L: 170mm(29") |
| Bottom Bracket | FP-B902W |
| Cassette | Microshift Advent MX 1x11 CS-H114 11-50T |
| Chain | KMC X11 |
| Pedals | MTB caged |
Brakes
| Brakes | Tektro HD-M3121, Hydraulic, [F] 180mm [R] 160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail 690mm, 31.8 XS: 690(27.5"), S: 690(27.5") 750 (29"), M: 750(29"), L: 750(29") |
|---|---|
| Stem | Giant Sport Alloy 7 Degree XS: 40 (27.5"), S: 40(27.5"/29"), M: 50(29"), L: 50(29") |
| Saddle | Contact ergo |
| Seatpost | Giant Sport 30.9, XS: 350(27.5"), S: 350(27.5") / 375(29"), M: 375(29"), L: 375(29") |
Wheels & Tires
| Hubs | alloy, sealed bearing |
|---|---|
| Rims | Giant GX03V 27.5"/29" 6061 Aluminum, Double Wall, 21mm Inner Width, Disc, 28h |
| Spokes | Stainless 14G |
| Front Tire | Maxxis Rekon Race 29x2.4" Rekon 27.5x2.4" 60 TPI wire bead |
| Rear Tire | Maxxis Rekon Race 29x2.4" Rekon 27.5x2.4" 60 TPI wire bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|
| Seat tube | 330 mm | 380 mm | 410 mm | 440 mm |
| Top tube | 538 mm | 571 mm | 599 mm | 629 mm |
| Head tube | 90 mm | 90 mm | 100 mm | 120 mm |
| Head-tube angle | 67° | 67.5° | 67.5° | 67.5° |
| Seat-tube angle | 74° | 74.5° | 74.5° | 74.5° |
| Chainstay / rear center | 440 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1080 mm | 1129 mm | 1158 mm | 1190 mm |
| Bottom-bracket drop | 45 mm | 55 mm | 55 mm | 55 mm |
| Reach | 381 mm | 407 mm | 432 mm | 457 mm |
| Stack | 548 mm | 593 mm | 602 mm | 620 mm |
| Standover height | 680 mm | 689 mm | 708 mm | — |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105.2 mm | 108.9 mm | 108.9 mm | 108.9 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 50 mm | 60 mm |
| Handlebar width | 690 mm | 690 mm | 690 mm | 760 mm |
Geometry source: Liv first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its stack of 548 mm sits toward the lower end. Its wheelbase of 1080 mm sits toward the shorter end. Its reach of 381 mm sits toward the shorter end.
Compared with 55 distinct mountain geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 407 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 168 distinct mountain geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 432 mm sits toward the shorter end. Its stack of 602 mm sits toward the lower end.
Compared with 171 distinct mountain geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: The chainstay of 455 mm sits toward the longer rear-center end. Its reach of 457 mm sits toward the shorter end. The head angle of 67.5° sits toward the steeper end.
Compared with 167 distinct mountain geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry Parts & serviceability
Find replacement parts
KMC X11
Exact archived model
Microshift Advent MX 1x11 CS-H114 11-50T
Interpreted as microSHIFT ADVENT · 11-speed Exact archived model
Tektro HD-M3121, Hydraulic, [F] 180mm [R] 160mm
Brake model identified — verify pad shape
More qualified parts (2)
Microshift Advent 1x11 RD-M7015M
Interpreted as microSHIFT ADVENT · 11-speed Exact archived model
Microshift Advent MX 1x11 SL-M7115-R
Interpreted as microSHIFT ADVENT · 11-speed Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Liv Tempt 1 · Mountain · Published sizes: XS, S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, disc · Fork: GIANT SXC32-2 RCL Alloy SingleAir 29"/27.5" 15x110 TA XS: 80mm (27.5") Spring: Air, S: 80mm (27.5"), 100mm(29") Spring: Air, M: 100mm(/29") Spring: Air, L: 100mm(/29") Spring: Air · Aluminum
Drivetrain
Check drivetrain wear →Archived: Shifters: Microshift Advent MX 1x11 SL-M7115-R · Rear derailleur: Microshift Advent 1x11 RD-M7015M · Crankset: ProWheel Charm Steel, 52.5mm chainline, 32t (27.5"), 30t w/O Chain Guard for (29") XS: 165mm(27.5"), S: 165mm(27.5")/170mm(29"), M: 170mm(29"), L: 170mm(29") · Bottom bracket: FP-B902W · Cassette: Microshift Advent MX 1x11 CS-H114 11-50T · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: Tektro HD-M3121, Hydraulic, [F] 180mm [R] 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant GX03V 27.5"/29" 6061 Aluminum, Double Wall, 21mm Inner Width, Disc, 28h · Hubs: alloy, sealed bearing · Front tire: Maxxis Rekon Race 29x2.4" Rekon 27.5x2.4" 60 TPI wire bead · Rear tire: Maxxis Rekon Race 29x2.4" Rekon 27.5x2.4" 60 TPI wire bead
Controls and contact points
Archived: Handlebar: Giant Connect Trail 690mm, 31.8 XS: 690(27.5"), S: 690(27.5") 750 (29"), M: 750(29"), L: 750(29") · Stem: Giant Sport Alloy 7 Degree XS: 40 (27.5"), S: 40(27.5"/29"), M: 50(29"), L: 50(29") · Seatpost: Giant Sport 30.9, XS: 350(27.5"), S: 350(27.5") / 375(29"), M: 375(29"), L: 375(29") · Saddle: Contact ergo · Pedals: MTB caged
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
