Velopedia Bicycle Archive

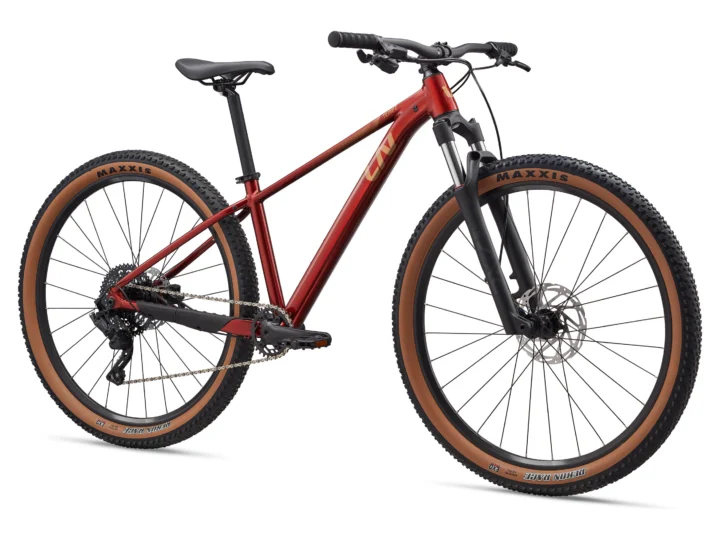

2025 Liv Tempt 2
Original specifications: geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900002104- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $800.00
- Sizes
- 27.5": XS, S, 29": S, M, L
- Colors
- Mars Dust, Frost Silver
- Geometry
- 4 manufacturer sizes
- In this record
- 20 specifications · 8 archived images · original MSRP · geometry
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2025 archived details
- Published colors
- Mars Dust, Frost Silver
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum
Frameset

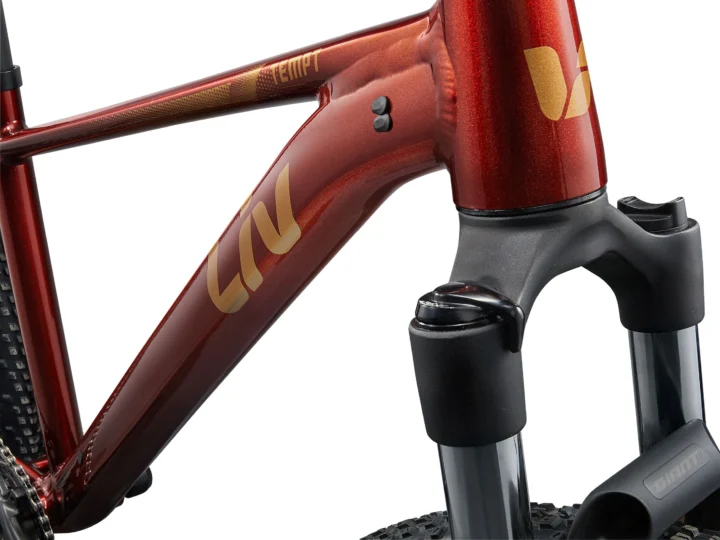

| Frame Construction | ALUXX-grade aluminum, disc |
|---|---|
| Frame Material | Aluminum |

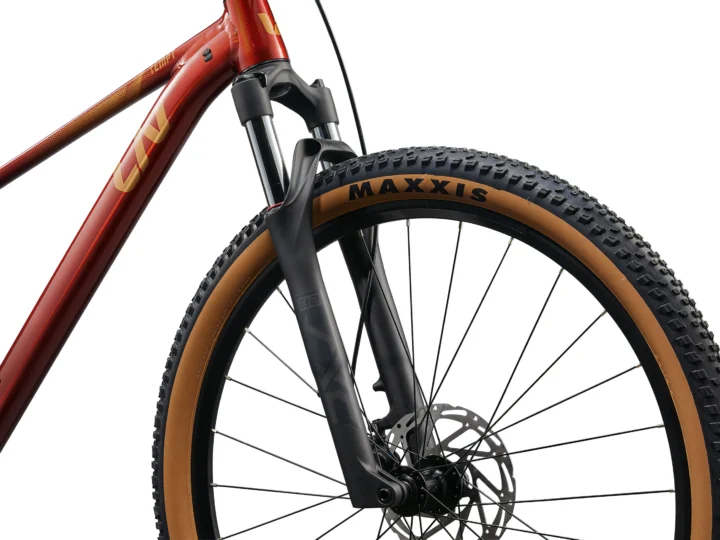

| Fork | Giant SXC32-3 RL Coil w/Pre-load Adj & 15x110 TA 1.5" Taper steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm |

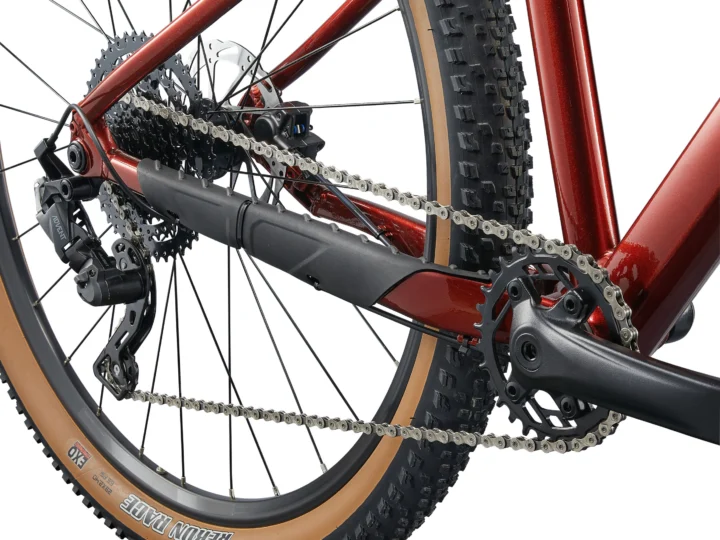

Drivetrain
| Shifters | Microshift, Advent 1x9, SL-M9295R |
|---|---|
| Rear Derailleur | Microshift, Advent 1x9, RD-M6195M with clutch |
| Crankset | ProWheel Charm, steel, 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | cartridge |
| Cassette | Microshift, CS-H093, 11-46 |
| Chain | KMC X9 |
| Pedals | MTB caged |
Brakes

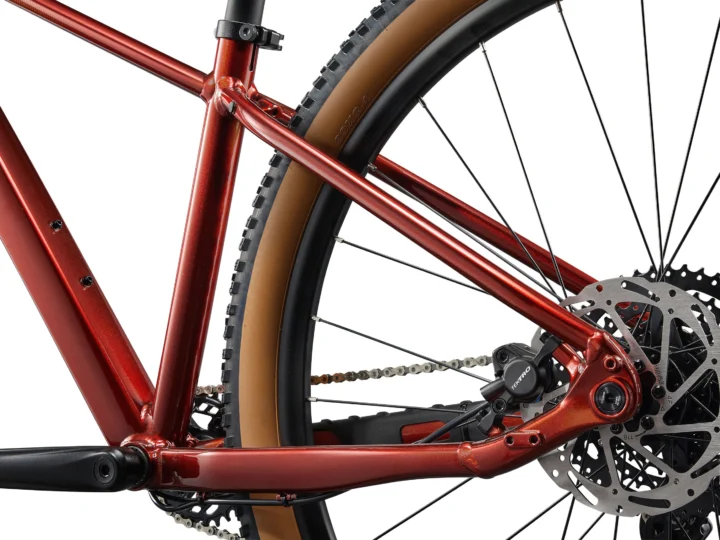

| Brakes | Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm |
|---|---|
| Stem | Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50 |
| Saddle | Contact Ergo |
| Seatpost | Giant Sport, 30.9mm 27.5" XS:100x350mm, S: 100x350mm 29" S: 100x350mm, M:100x375mm, L : 100x375mm |
Wheels & Tires
| Hubs | alloy, sealed bearing |
|---|---|
| Rims | 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width |
| Spokes | stainless, 14g |
| Front Tire | Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead |
| Rear Tire | Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 17 measurements
| Measurement | XS (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|
| Seat tube | 330 mm | 380 mm | 410 mm | 450 mm |
| Top tube | 538 mm | 571 mm | 599 mm | 610 mm |
| Head tube | 90 mm | 90 mm | 100 mm | 105 mm |
| Head-tube angle | 67° | 67.5° | 67.5° | 68.5° |
| Seat-tube angle | 74° | 74.5° | 74.5° | 74° |
| Chainstay / rear center | 440 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1080 mm | 1129 mm | 1158 mm | 1160 mm |
| Bottom-bracket drop | 45 mm | 55 mm | 55 mm | 55 mm |
| Reach | 381 mm | 407 mm | 432 mm | 435 mm |
| Stack | 548 mm | 593 mm | 602 mm | 610 mm |
| Standover height | 680 mm | 689 mm | 708 mm | 757 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 51 mm |
| Trail | 105.2 mm | 108.9 mm | 108.9 mm | 94.3 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 175 mm |
| Stem length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar width | 690 mm | 750 mm | 750 mm | 750 mm |
| Wheel size | 27.5" | 29" | 29" | 29" |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Lowest0.65:1
Highest2.73:1
Total range418%
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Giant Sport
30.9mm 27.5" XS:100x350mm, S: 100x350mm 29" S: 100x350mm, M:100x375mm, L : 100x375mm
Retailer offers
Race Face Ride XC Seatpost Black, 30.9x375mm
Replacement option
Microshift
CS-H093, 11-46
More parts (2)Fewer parts
Microshift
Advent 1x9, RD-M6195M with clutch
microSHIFT RD-M6195M on eBaySponsored links
Microshift
Advent 1x9, SL-M9295R
microSHIFT SL-M9295R on eBaySponsored links
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead
- Rear tire
- Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, disc · Fork: Giant SXC32-3 RL Coil w/Pre-load Adj & 15x110 TA 1.5" Taper steerer 27.5" XS: 80mm, S: 80mm 29" S: 100mm, M: 100mm, L: 100mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Microshift, Advent 1x9, SL-M9295R · Rear derailleur: Microshift, Advent 1x9, RD-M6195M with clutch · Crankset: ProWheel Charm, steel, 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm · Bottom bracket: cartridge · Cassette: Microshift, CS-H093, 11-46 · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width · Hubs: alloy, sealed bearing · Front tire: Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead · Rear tire: Maxxis Recon Race 27.5x2.4" or 29x2.4", 60tpi wire bead
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm · Stem: Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50 · Seatpost: Giant Sport, 30.9mm 27.5" XS:100x350mm, S: 100x350mm 29" S: 100x350mm, M:100x375mm, L : 100x375mm · Saddle: Contact Ergo · Pedals: MTB caged
