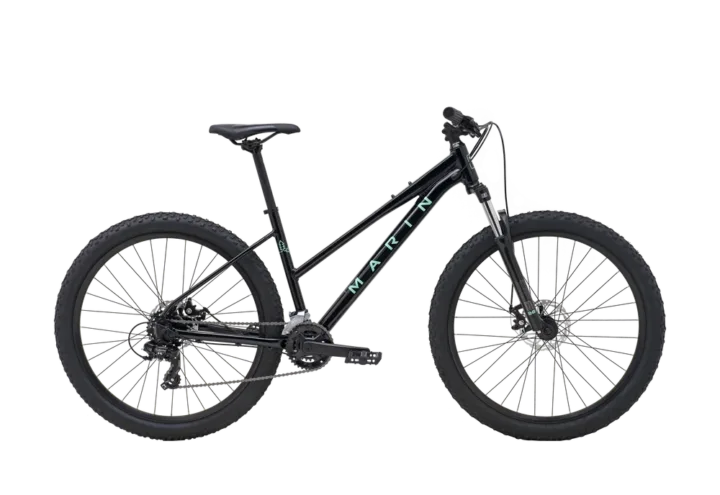

2025 Marin BOLINAS RIDGE 1 ST

Archived: 2025 Marin BOLINAS RIDGE 1 ST · Mountain · Published sizes: XS; S; M

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes · Fork: SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano Tourney 2x7-Speed · Front derailleur: Shimano FD-TX600 · Rear derailleur: Shimano Tourney, 7-Speed · Crankset: Alloy Crank, Steel Chainrings, 36/22T · Bottom bracket: Sealed Cartridge Bearings, Square Taper · Cassette: Shimano, CSHG200, 7-Speed, 11-32T · Chain: KMC Z8

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Tektro MDM280 Mechanical Disc, 160mm Rotor / (R) Tektro MDM280 Mechanical Disc, 160mm Rotor; Levers: Shimano w/ Integrated Shifters

• Check both cables and housings for corrosion, fraying or drag. Confirm each caliper releases cleanly, then inspect pad thickness, rotor wear and rotor alignment.
• Before riding, test the front and rear brakes separately at walking speed. Each should stop firmly and release cleanly without the lever reaching the handlebar.

Archived: Wheel size: 27.5" · Rims: Marin, Double Wall Alloy · Hubs: (F) Forged Alloy, Disc, 32H / (R) Forged Alloy, Disc, 32H · Front tire: MTB, 27.5/29x2.25" · Rear tire: MTB, 27.5/29x2.25"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

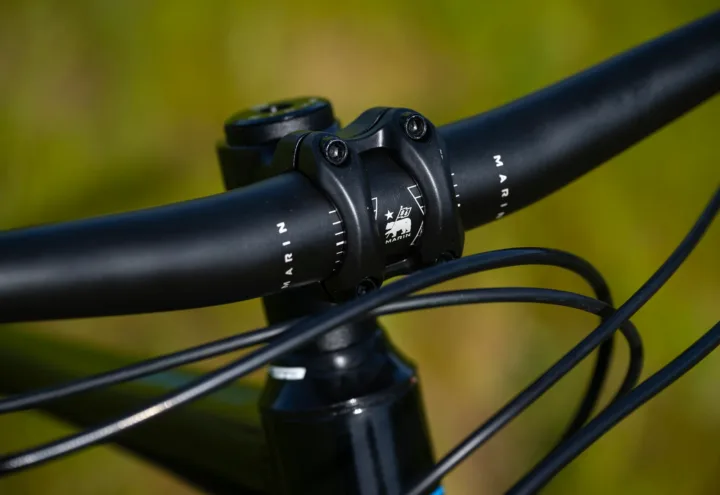

Archived: Headset: FSA No.10-P · Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width · Stem: Marin Alloy, 31.8mm, 45mm · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin MTB · Pedals: Nylon Platform

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
