2025 Marin Bobcat Trail 3

Original specifications: 27.5"; 29" wheels · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000540
Model year
2025
Category
Mountain
Original MSRP
$829.00
Sizes
XS, S, M, L, XL
Colors
Grey Blue, Red Grey
Geometry
5 manufacturer sizes
In this record
23 specifications · 8 archived images · original MSRP · geometry
Campaign
Original buildAluminum · 27.5"; 29"

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Grey BlueRed Grey

Frameset

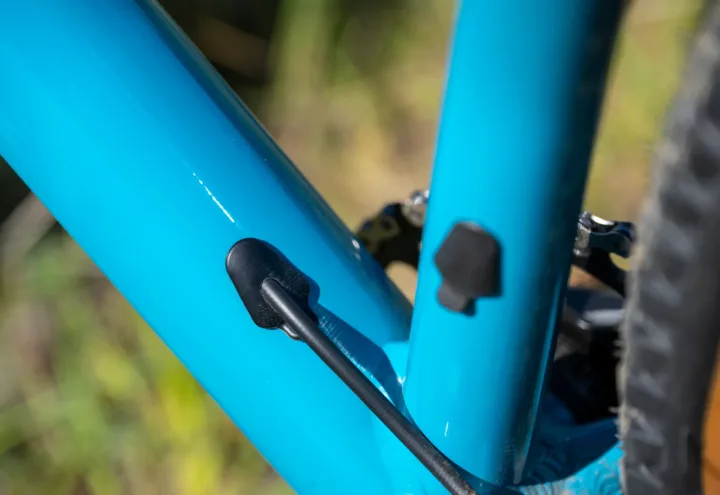

Frame ConstructionSeries 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Frame MaterialAluminum
ForkSR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset

Drivetrain

ShiftersmicroSHIFT Advent 9 Trail
Rear DerailleurmicroSHIFT Advent 9, Clutch
CranksetAlloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom BracketSealed Cartridge Bearings, Square Taper
BB Shell Width68 mm
CassetteSunRace 9-Speed, 11-46T
ChainKMC X9
PedalsNylon Platform

Brakes

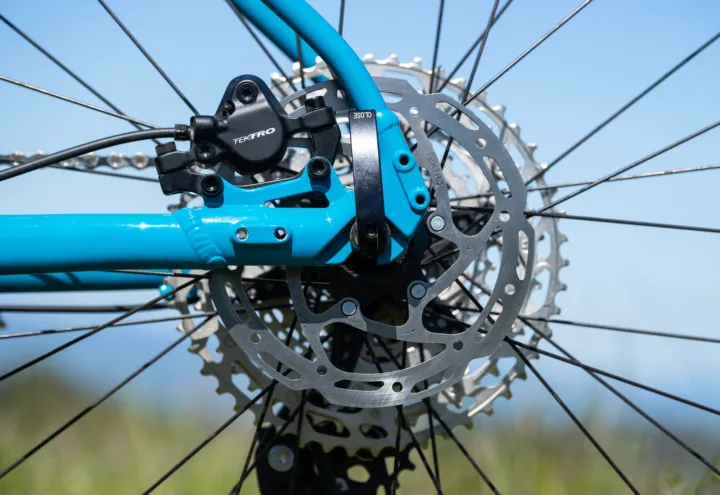

Brakes(F) Tektro M280 Hydraulic Disc, 180mm Rotor / (R) Tektro M280 Hydraulic Disc, 160mm Rotor; Levers: Tektro M280

Cockpit & Contact Points

HeadsetFSA No.10-P
HandlebarMarin 31.8 Riser, 12mm Rise, 780mm Width
StemMarin Alloy, 31.8mm Clamp, 45mm
SaddleMarin MTB
SeatpostMarin Alloy, 30.9

Wheels & Tires

Hubs(F) Forged Alloy, Disc, 32H / (R) Forged Alloy, Disc, 32H
RimsMarin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Spokes14g Black Stainless Steel
Front TireMTB, 27.5/29x2.25"
Rear TireMTB, 27.5/29x2.25"
Wheel Size27.5"; 29"

Geometry

5 sizes · 16 measurements

Frame measurements by size.

All geometry measurements5 sizes · 16 measurements
MeasurementExtra SmallSmallMediumLargeXLarge
Seat tube330 mm381 mm431 mm482 mm520 mm
Effective top tube596 mm612 mm623 mm652 mm673 mm
Head tube100 mm105 mm110 mm115 mm120 mm
Head-tube angle66.5°66.5°66.5°66°66°
Seat-tube angle74.5°74.5°74.5°74.5°74.5°
Chainstay / rear center415 mm415 mm415 mm430 mm430 mm
Wheelbase1127 mm1144 mm1156 mm1208 mm1230 mm
Bottom-bracket drop48 mm48 mm48 mm61 mm61 mm
Bottom-bracket height307 mm307 mm307 mm311.5 mm311.5 mm
Reach430 mm445 mm455 mm475 mm495 mm
Stack599 mm603 mm608 mm639 mm644 mm
Standover height620 mm640 mm690 mm732 mm760 mm
Fork offset / rake42 mm42 mm42 mm46 mm46 mm
Crank length170 mm170 mm170 mm170 mm170 mm
Stem length45 mm45 mm45 mm45 mm45 mm
Handlebar width740 mm740 mm780 mm780 mm780 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes32T · 11–46T · 9-speed
Lowest0.70:1 Highest2.91:1 Total range418%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Seatpost · Original
Marin Alloy

30.9

Retailer offers
Chain · Original
KMC X9
Cassette · Original
SunRace 9-Speed

11-46T

More parts (3)Fewer parts
Rear derailleur · Original
microSHIFT Advent 9

Clutch

Shifters · Original
microSHIFT Advent 9 Trail
Headset · Original
FSA No.10-P

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
MTB, 27.5/29x2.25"
Rear tire
MTB, 27.5/29x2.25"
Drivetrain
9-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Sealed Cartridge Bearings, Square Taper · 68 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing · Fork: SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset

Archived: Fork: SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset

Archived: Shifters: microSHIFT Advent 9 Trail · Rear derailleur: microSHIFT Advent 9, Clutch · Crankset: Alloy Crank, Steel Narrow-Wide Chainring, 32T · Bottom bracket: Sealed Cartridge Bearings, Square Taper · Cassette: SunRace 9-Speed, 11-46T · Chain: KMC X9

Archived: Brakes: (F) Tektro M280 Hydraulic Disc, 180mm Rotor / (R) Tektro M280 Hydraulic Disc, 160mm Rotor; Levers: Tektro M280

Archived: Wheel size: 27.5"; 29" · Rims: Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific · Hubs: (F) Forged Alloy, Disc, 32H / (R) Forged Alloy, Disc, 32H · Front tire: MTB, 27.5/29x2.25" · Rear tire: MTB, 27.5/29x2.25"

Controls and contact points

Archived: Headset: FSA No.10-P · Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width · Stem: Marin Alloy, 31.8mm Clamp, 45mm · Seatpost: Marin Alloy, 30.9 · Saddle: Marin MTB · Pedals: Nylon Platform
