2025 Marin Bolinas Ridge 2 ST

Archived: Frame: Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes · Fork: SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano Altus 1x8-Speed · Rear derailleur: Shimano Essa, 8-Speed · Crankset: Alloy Crank, Steel Narrow/Wide Chainring, 32 · Bottom bracket: Sealed Cartridge Bearings, Square Taper · Cassette: Shimano 8-Speed, 11-45T · Chain: KMC Z8

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Tektro M280 Hydraulic Disc, 160mm Rotor / (R) Tektro M280 Hydraulic Disc, 160mm Rotor; Levers: Tektro Hydraulic

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheel size: 27.5" · Rims: Marin, Double Wall Alloy · Hubs: (F) Forged Alloy, Disc, 32H / (R) Forged Alloy, Disc, 32H · Front tire: MTB, 27.5/29x2.25" · Rear tire: MTB, 27.5/29x2.25"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

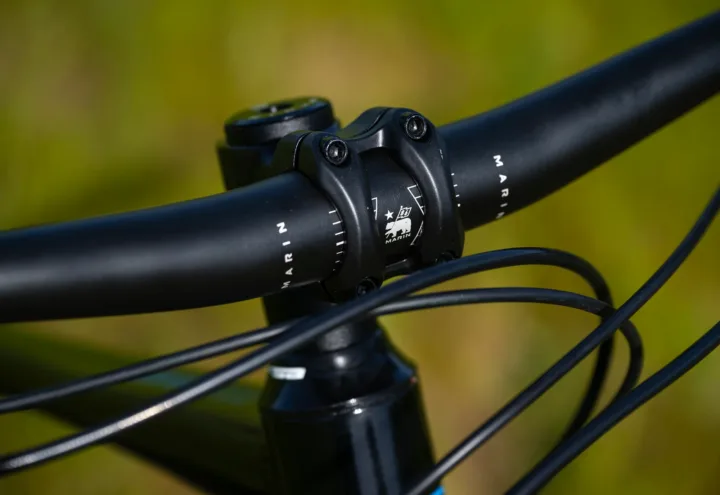

Archived: Headset: FSA No.10-P · Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width · Stem: Marin Alloy, 31.8mm, 45mm · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin MTB · Pedals: Nylon Platform

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.

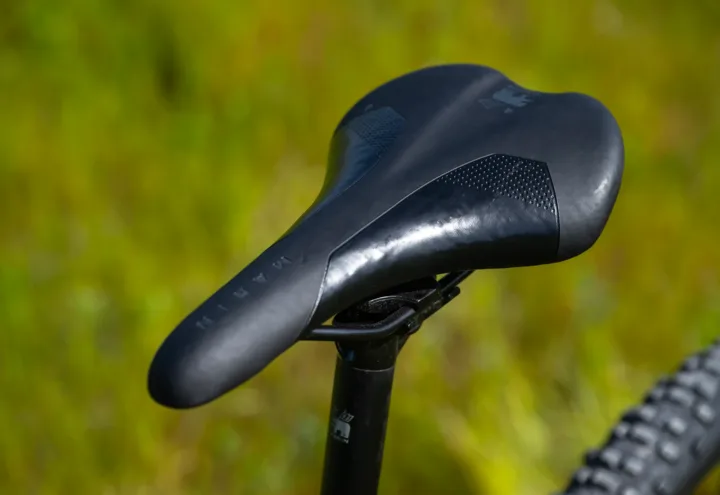

• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
