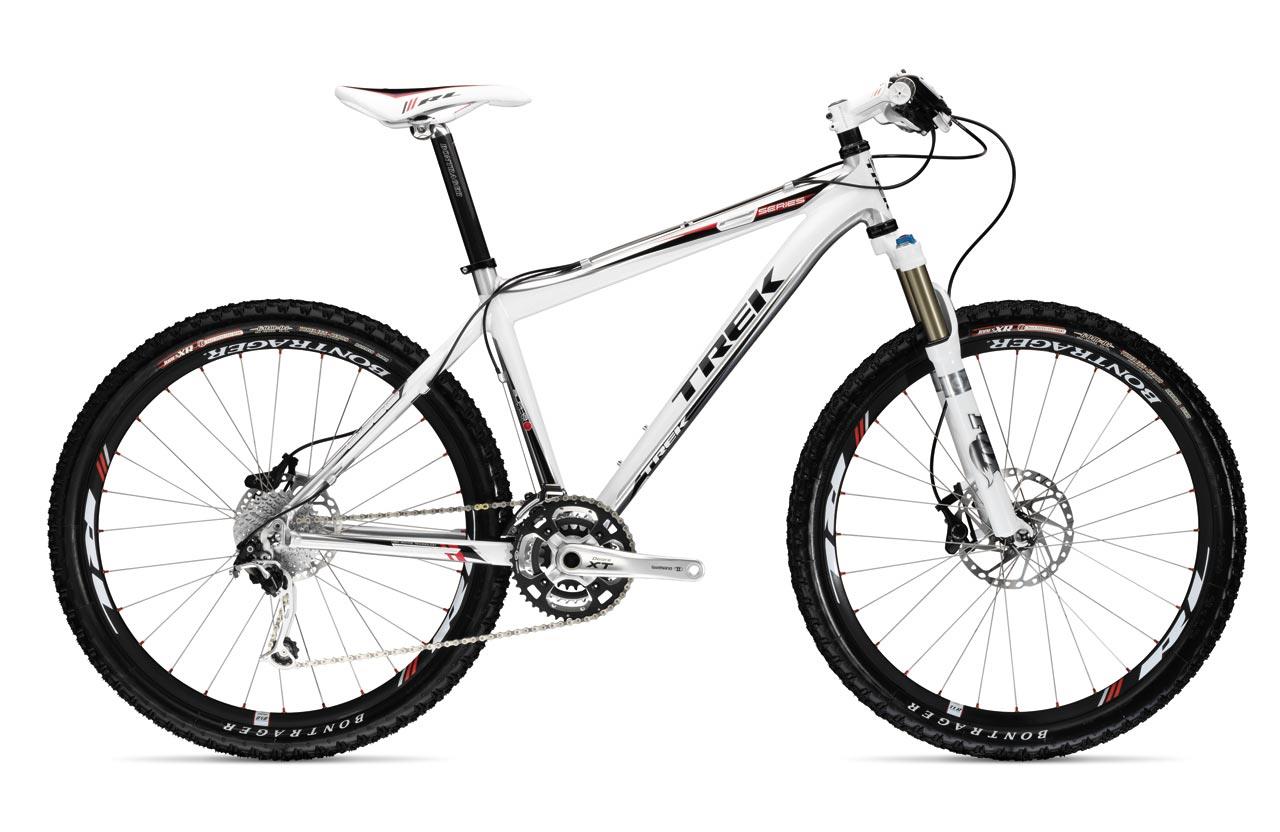

2009 Trek 8500

Original specifications: Shimano Deore XT drivetrain · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #17727
Model year
2009
Category
Mountain
Original MSRP
$2,859.99
Sizes
15.5", 17.5", 18.5", 19.5", 21.5"
Colors
Brushed Pewter/Pearl White
In this record
23 specifications · archived image · original MSRP
Model history 11 other years

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors
Brushed Pewter/Pearl White
Frame
Alpha Red Aluminum
Original equipment
Shimano Deore XT

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAlpha Red Aluminum · Shimano Deore XT · 26" wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

15.5"17.5"18.5"19.5"21.5"

Published colors

Brushed Pewter/Pearl White
View 5 archived size/color combinations
SizeColor
15.5"Brushed Pewter/Pearl White
17.5"Brushed Pewter/Pearl White
18.5"Brushed Pewter/Pearl White
19.5"Brushed Pewter/Pearl White
21.5"Brushed Pewter/Pearl White

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialAlpha Red Aluminum
ForkFox F100 RL, 100mm travel
Fork MaterialSingle crown

Drivetrain

Component GroupShimano Deore XT
ShiftersShimano Deore XT
Front DerailleurShimano Deore XT
Rear DerailleurShimano Deore XT Shadow
CranksetShimano Deore XT, 22/32/44 teeth
CassetteSRAM PG-970
Rear Cogs9-speed, 11 - 32 teeth

Brakes

BrakesShimano Deore XT Ti hydraulic disc w/180mm rotor front/Shimano Deore XT Ti hydraulic disc w/160mm rotor rear brakes, Shimano Deore XT Ti levers

Cockpit & Contact Points

Headset1 1/8" threadless Cane Creek S-3
HandlebarBontrager Race Lite
Handlebar ExtensionsNot included
StemBontrager Race X Lite
SaddleBontrager Race Lite
SeatpostBontrager Race Lite, 31.6mm diameter

Wheels & Tires

HubsBontrager Race Lite Disc
RimsBontrager Race Lite Disc, tubeless ready
Front Tire26 x 2.20" Bontrager Jones XR
Rear Tire26 x 2.25" Bontrager Jones XR
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–32T · 9-speed
Lowest0.69:1 Highest4.00:1 Total range582%
Estimated speed At 90 RPM Lowest gear4.9 mph Highest gear28.4 mph

Rear tire: 26×2.25.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
26 x 2.20" Bontrager Jones XR
Cassette · Original
SRAM PG-970
More parts (10)Fewer parts
Rear tire · Original
26 x 2.25" Bontrager Jones XR
Saddle · Original
Bontrager Race Lite
Crankset · Original
Shimano Deore XT

22/32/44 teeth

Front derailleur · Original
Shimano Deore XT Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Rear derailleur · Original
Shimano Deore XT Shadow Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
Shimano Deore XT Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Handlebar · Original
Bontrager Race Lite
Stem · Original
Bontrager Race X Lite
Rims · Original
Bontrager Race Lite Disc

tubeless ready

Hubs · Original
Bontrager Race Lite Disc

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 26 x 2.20" Bontrager Jones XR, Rear: 26 x 2.25" Bontrager Jones XR
Drivetrain
9-speed
Seatpost diameter
31.6 mm
Equipment inspection checks 12 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 12 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Fox F100 RL, 100mm travel · Single crown

Archived: Fork: Fox F100 RL, 100mm travel

Archived: Group: Shimano Deore XT · Shifters: Shimano Deore XT · Front derailleur: Shimano Deore XT · Rear derailleur: Shimano Deore XT Shadow · Crankset: Shimano Deore XT, 22/32/44 teeth · Cassette: SRAM PG-970 · Rear cogs: 9-speed, 11 - 32 teeth

Archived: Brakes: Shimano Deore XT Ti hydraulic disc w/180mm rotor front/Shimano Deore XT Ti hydraulic disc w/160mm rotor rear brakes, Shimano Deore XT Ti levers

Archived: Wheel size: 26" wheels · Rims: Bontrager Race Lite Disc, tubeless ready · Hubs: Bontrager Race Lite Disc · Front tire: Front: 26 x 2.20" Bontrager Jones XR, Rear: 26 x 2.25" Bontrager Jones XR

Controls and contact points

Archived: Headset: 1 1/8" threadless Cane Creek S-3 · Handlebar: Bontrager Race Lite · Stem: Bontrager Race X Lite · Seatpost: Bontrager Race Lite, 31.6mm diameter · Saddle: Bontrager Race Lite
