Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2; rear size isn’t listed.
Velopedia Bicycle Archive

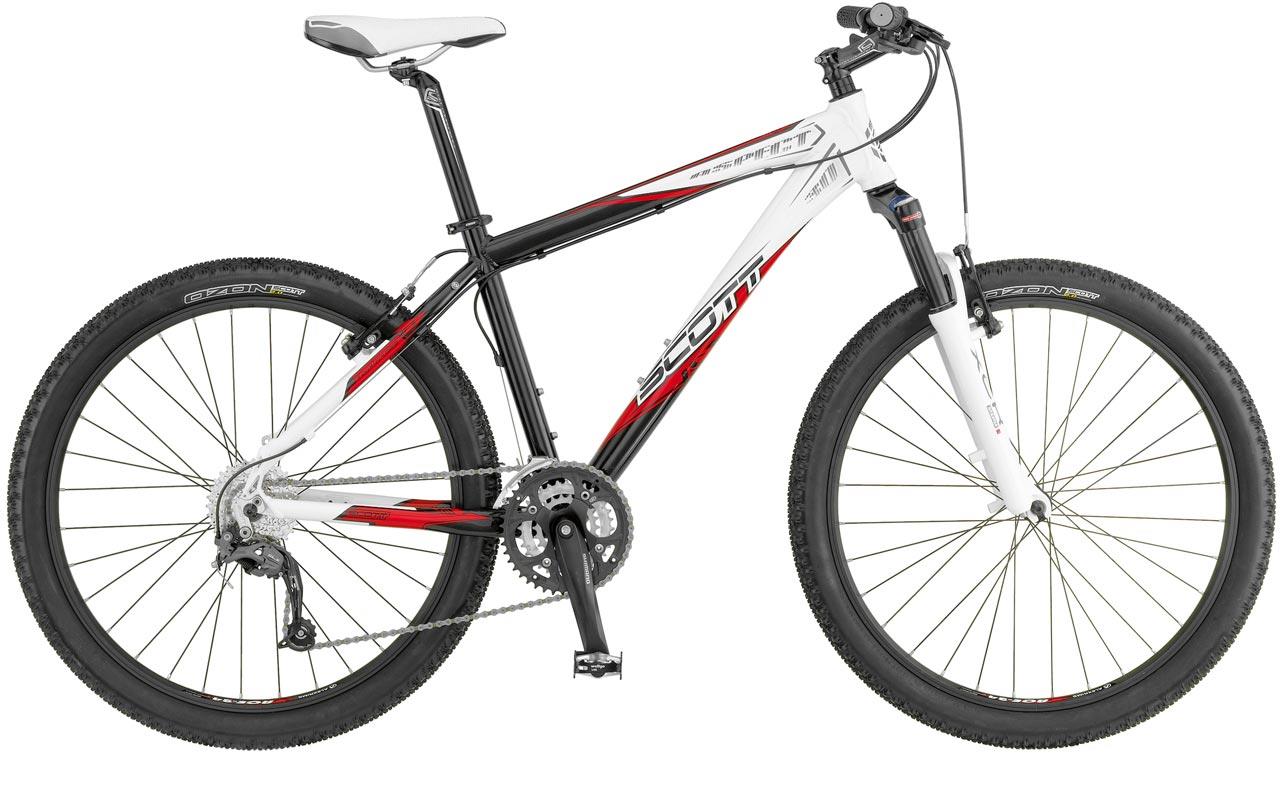

2009 Scott Aspect 30
Original specifications: Shimano Deore LX · 9-speed rear derailleur · 26" wheels · 28.41 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #17515- Model year
- 2009
- Category
- Mountain
- Original MSRP
- $885.49
- Sizes
- XS, S, M, L, XL, XXL
- Colors
- White/Black/Red
- Weight
- 28.41 lb
- In this record
- 27 specifications · archived image · original MSRP
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- White/Black/Red
- Frame
- Hydraformed and Butted Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildHydraformed and Butted Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hydraformed and Butted Aluminum |
| Fork | RockShox Dart 2 w/lockout, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore RapidFire |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano LX |
| Crankset | Shimano FC-M442, 22/32/44 teeth |
| Bottom Bracket | Shimano UN-26, 113mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG53-9 |
| Pedals | Wellgo LU-998-S |
Brakes
| Brakes | Scott Comp brakes, Scott Comp levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey Logic OE |
|---|---|
| Handlebar | Scott Comp riser |
| Handlebar Extensions | Not included |
| Stem | Scott Comp |
| Saddle | SCT-10 SL Aspect |
| Seatpost | Scott Comp HL-209, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Formula CO-31, Rear: Shimano RM60 |
|---|---|
| Rims | Alex ACE-24 |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.00" Scott Ozon |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Scott Comp HL-209
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
Shimano HG50
More parts (9)Fewer parts
26 x 2.00" Scott Ozon
Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano UN-26
113mm spindle
Wellgo LU-998-S
Shimano FC-M442
22/32/44 teeth
Shimano Deore
Shimano LX
Shimano Deore RapidFire
1 1/8" Ritchey Logic OE
Alex ACE-24
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00" Scott Ozon
- Drivetrain
- 9-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Shimano UN-26, 113mm spindle · 68mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RockShox Dart 2 w/lockout, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: RockShox Dart 2 w/lockout, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore RapidFire · Front derailleur: Shimano Deore · Rear derailleur: Shimano LX · Crankset: Shimano FC-M442, 22/32/44 teeth · Bottom bracket: Shimano UN-26, 113mm spindle · Cassette: Shimano HG50 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano HG53-9
Brakes
Inspect the brakes →Archived: Brakes: Scott Comp brakes, Scott Comp levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex ACE-24 · Hubs: Front: Formula CO-31, Rear: Shimano RM60 · Front tire: 26 x 2.00" Scott Ozon
Controls and contact points
Archived: Headset: 1 1/8" Ritchey Logic OE · Handlebar: Scott Comp riser · Stem: Scott Comp · Seatpost: Scott Comp HL-209, 31.6mm diameter · Saddle: SCT-10 SL Aspect · Pedals: Wellgo LU-998-S
