Velopedia Bicycle Archive

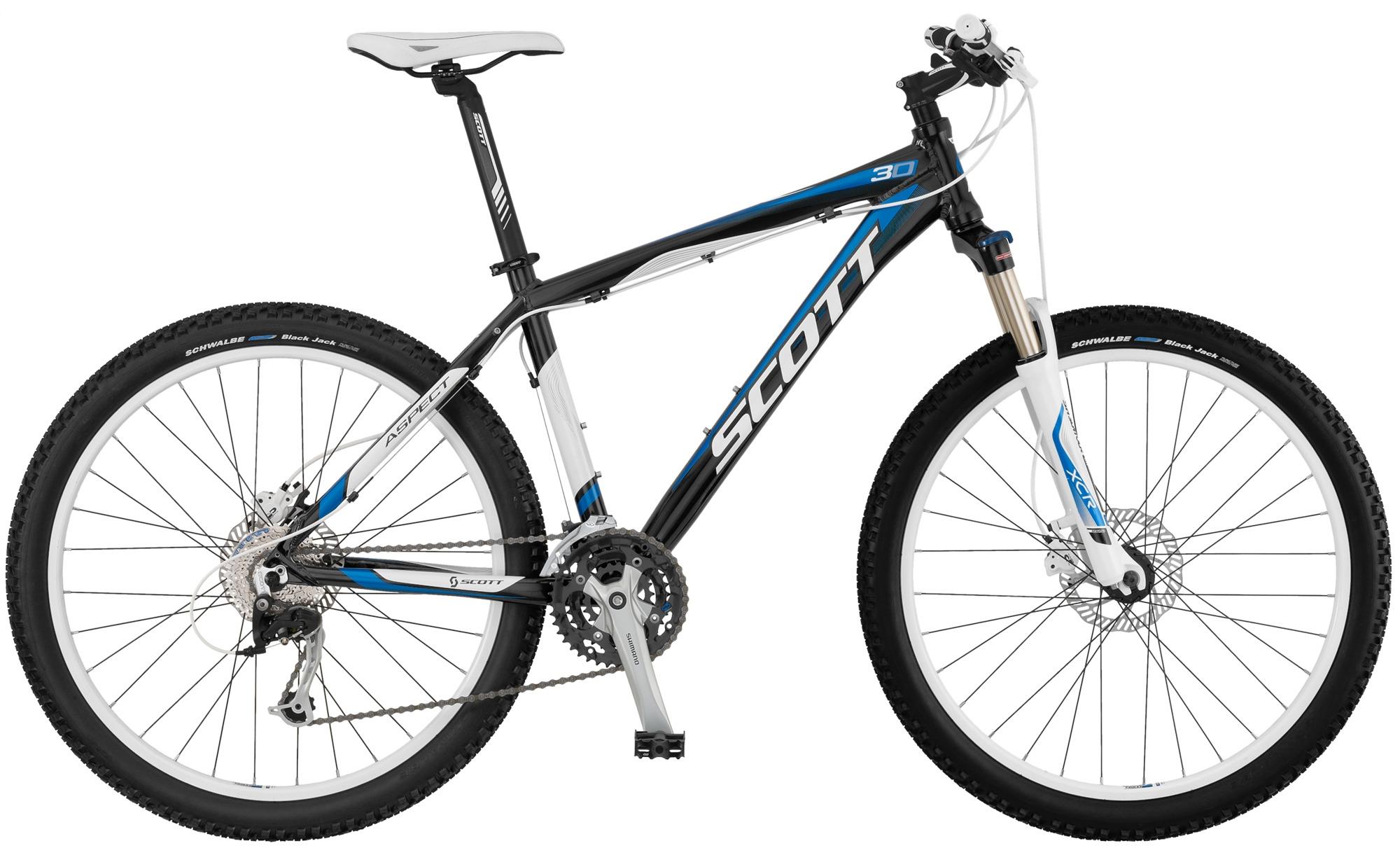

2011 Scott Aspect 30

Original specifications: Mountain Mix drivetrain · 26" wheels · 30.40 lbs published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #23855
Model year
2011
Category
Mountain
Original MSRP
$679.99
Sizes
XS, S, M, L, XL, XXL
Colors
White/red, Black/Blue
Weight
30.40 lbs
In this record
25 specifications · archived image · original MSRP
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
White/red, Black/Blue
Frame
Alloy 6061 Double Butted
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAlloy 6061 Double Butted · Mountain Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

12 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XSSMLXLXXL

Published colors

White/RedBlack/Blue
View 12 archived size/color combinations
SizeColor
XSWhite/Red
SWhite/Red
MWhite/Red
LWhite/Red
XLWhite/Red
XXLWhite/Red
XSBlack/Blue
SBlack/Blue
MBlack/Blue
LBlack/Blue
XLBlack/Blue
XXLBlack/Blue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionAlloy
Frame MaterialAlloy 6061 Double Butted
ForkSuntour XCR, 100mm travel

Drivetrain

Component GroupMountain Mix
ShiftersShimano SL-M310
Front DerailleurShimano Acera, clamp on
Rear DerailleurShimano Alivio
CranksetShimano FC-M361, 44/32/22t teeth
Bottom BracketShimano BB-UN26
CassetteShimano CS-HG40
Rear Cogs11 - 32 teeth
ChainKMC Z7
PedalsWellgo C 127

Brakes

BrakesTektro Draco brakes, Tektro Draco levers

Cockpit & Contact Points

HeadsetRitchey Logic OE
HandlebarScott Aspect
Handlebar ExtensionsNot included
StemScott TDS-D345A
SaddleScott Aspect
SeatpostScott, 31.6mm diameter

Wheels & Tires

HubsFront: Scott Disc Team, Rear: Shimano FH-M475
RimsAraya TX 633
SpokesStainless, 15ga. (1.8mm)
Front Tire26 x 2.1'' Schwalbe Black Jack
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–32T
Lowest0.69:1 Highest4.00:1 Total range582%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC Z7
Cassette · Original
Shimano CS-HG40
More parts (5)Fewer parts
Front tire · Original
26 x 2.1'' Schwalbe Black Jack
Bottom bracket · Original
Shimano BB-UN26
Crankset · Original
Shimano FC-M361

44/32/22t teeth

Shifters · Original
Shimano SL-M310
Headset · Original
Ritchey Logic OE

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.1'' Schwalbe Black Jack
Drivetrain
Mountain Mix
Seatpost diameter
31.6 mm
Bottom bracket / shell
Shimano BB-UN26
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alloy · Fork: Suntour XCR, 100mm travel

Archived: Fork: Suntour XCR, 100mm travel

Archived: Group: Mountain Mix · Shifters: Shimano SL-M310 · Front derailleur: Shimano Acera, clamp on · Rear derailleur: Shimano Alivio · Crankset: Shimano FC-M361, 44/32/22t teeth · Bottom bracket: Shimano BB-UN26 · Cassette: Shimano CS-HG40 · Rear cogs: 11 - 32 teeth · Chain: KMC Z7

Archived: Brakes: Tektro Draco brakes, Tektro Draco levers

Archived: Wheel size: 26" wheels · Rims: Araya TX 633 · Hubs: Front: Scott Disc Team, Rear: Shimano FH-M475 · Front tire: 26 x 2.1'' Schwalbe Black Jack

Controls and contact points

Archived: Headset: Ritchey Logic OE · Handlebar: Scott Aspect · Stem: Scott TDS-D345A · Seatpost: Scott, 31.6mm diameter · Saddle: Scott Aspect · Pedals: Wellgo C 127
