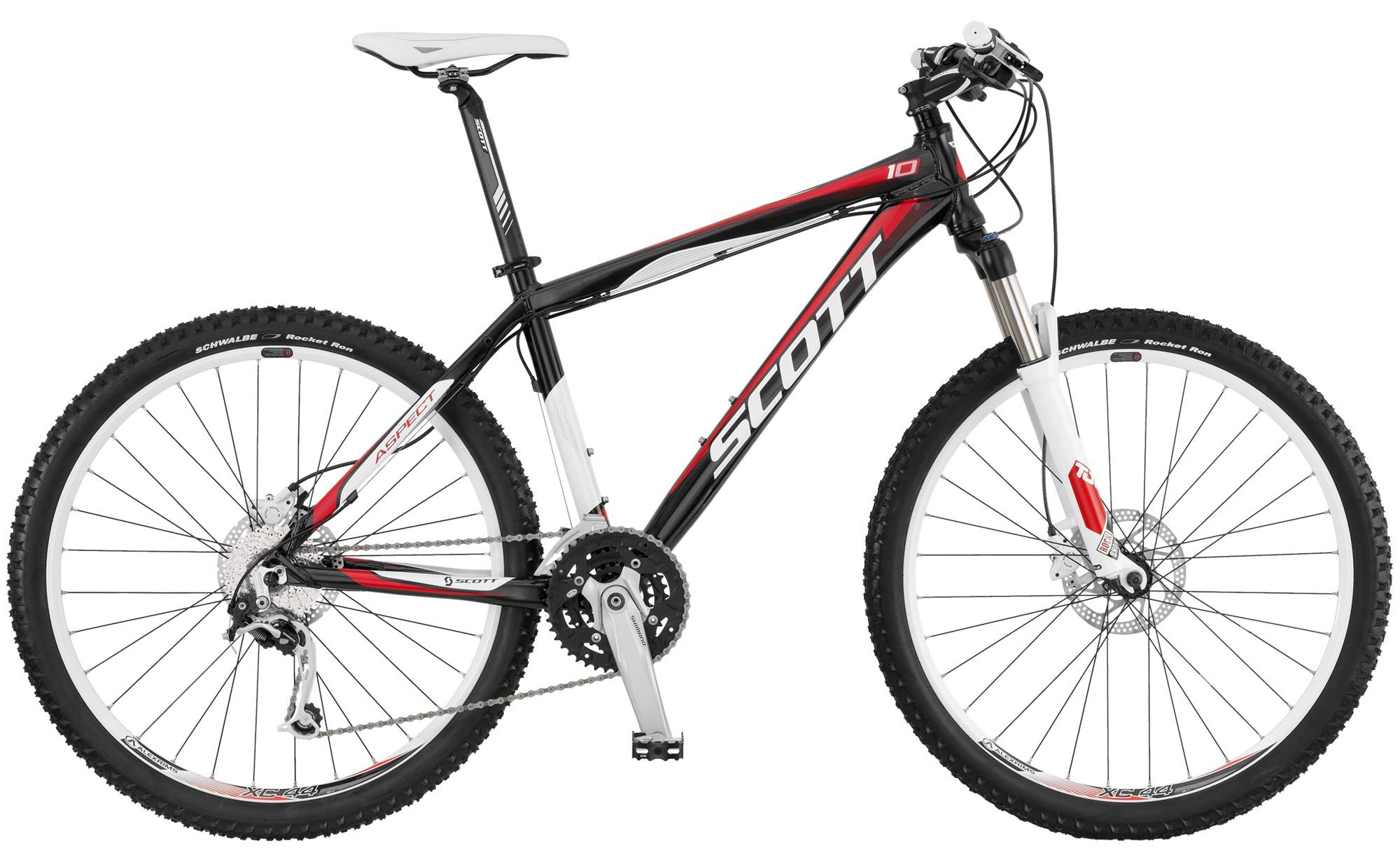

2011 Scott Aspect 10

Original specifications: Shimano Deore XT · 9-speed rear derailleur · 26" wheels · 27.97 lbs published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #23853
Model year
2011
Category
Mountain
Original MSRP
$1,049.99
Sizes
XS, S, M, L, XL, XXL
Colors
Black/red/white
Weight
27.97 lbs
In this record
25 specifications · archived image · original MSRP
Original buildAlloy 6061 Double Butted · Shimano mix · 26" wheels

Historical catalog variants

Archived sizes and colors

6 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XSSMLXLXXL

Published colors

Black/Red/White
View 6 archived size/color combinations
SizeColor
XSBlack/Red/White
SBlack/Red/White
MBlack/Red/White
LBlack/Red/White
XLBlack/Red/White
XXLBlack/Red/White

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionAlloy
Frame MaterialAlloy 6061 Double Butted
ForkRockShox Tora TK, 100mm travel

Drivetrain

Component GroupShimano mix
ShiftersShimano Deore
Front DerailleurShimano Deore, clamp on
Rear DerailleurShimano XT
CranksetShimano FC-M430, 44/32/22t teeth
Bottom BracketShimano BB-ES25
CassetteShimano CS HG50
Rear Cogs11 - 32 teeth
ChainShimano CN-HG53
PedalsWellgo C 128

Brakes

BrakesShimano BR-M445 Hydraulic Disc brakes, Shimano BL-M445 levers

Cockpit & Contact Points

HeadsetRitchey Logic OE
HandlebarScott Aspect
Handlebar ExtensionsNot included
StemScott Comp
SaddleScott Aspect
SeatpostScott Comp, 31.6mm diameter

Wheels & Tires

HubsFront: Scott Disc Comp centerlock, Rear: Shimano FH-RM 65
RimsAlex XC-44 disc, 32-hole
SpokesStainless, 15ga. (1.8mm)
Front Tire26 x 2.1'' Schwalbe Rocket Ron
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–32T
Lowest0.69:1 Highest4.00:1 Total range582%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-HG53
Cassette · Original
Shimano CS HG50
More parts (9)Fewer parts
Front tire · Original
26 x 2.1'' Schwalbe Rocket Ron
Brake pads · Original
Shimano BR-M445 Hydraulic Disc brakes

Shimano BL-M445 levers

Bottom bracket · Original
Shimano BB-ES25
Crankset · Original
Shimano FC-M430

44/32/22t teeth

Front derailleur · Original
Shimano Deore

clamp on

Rear derailleur · Original
Shimano XT Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
Shimano Deore
Headset · Original
Ritchey Logic OE
Rims · Original
Alex XC-44 disc

32-hole

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.1'' Schwalbe Rocket Ron
Drivetrain
Shimano mix
Seatpost diameter
31.6 mm
Bottom bracket / shell
Shimano BB-ES25
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alloy · Fork: RockShox Tora TK, 100mm travel

Archived: Fork: RockShox Tora TK, 100mm travel

Archived: Group: Shimano mix · Shifters: Shimano Deore · Front derailleur: Shimano Deore, clamp on · Rear derailleur: Shimano XT · Crankset: Shimano FC-M430, 44/32/22t teeth · Bottom bracket: Shimano BB-ES25 · Cassette: Shimano CS HG50 · Rear cogs: 11 - 32 teeth · Chain: Shimano CN-HG53

Archived: Brakes: Shimano BR-M445 Hydraulic Disc brakes, Shimano BL-M445 levers

Archived: Wheel size: 26" wheels · Rims: Alex XC-44 disc, 32-hole · Hubs: Front: Scott Disc Comp centerlock, Rear: Shimano FH-RM 65 · Front tire: 26 x 2.1'' Schwalbe Rocket Ron

Controls and contact points

Archived: Headset: Ritchey Logic OE · Handlebar: Scott Aspect · Stem: Scott Comp · Seatpost: Scott Comp, 31.6mm diameter · Saddle: Scott Aspect · Pedals: Wellgo C 128
