Uses front tire 26×2; rear size isn’t listed.
Velopedia Bicycle Archive

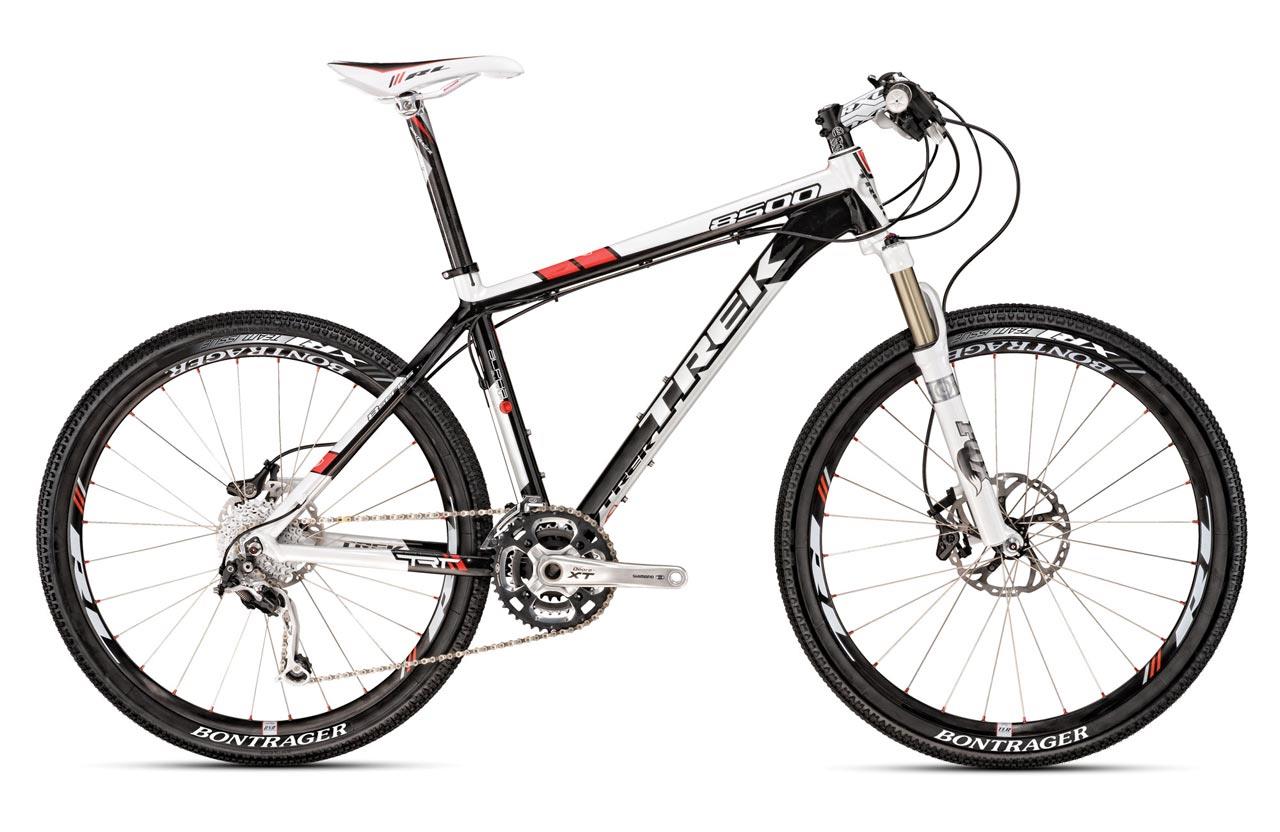

2010 Trek 8500
Original specifications: Shimano Deore XT · 9-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #19962- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $2,939.99
- Sizes
- 15.5", 17.5", 18.5", 19.5", 21.5"
- Colors
- Pearl White/Gloss Black
- In this record
- 22 specifications · archived image · original MSRP
Model history 11 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Pearl White/Gloss Black
- Frame
- Alpha Red Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAlpha Red Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Red Aluminum |
| Fork | Fox F-series Remote RL, 100mm travel |
| Fork Material | Single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT |
| Front Derailleur | Shimano Deore XT |
| Rear Derailleur | Shimano Deore XT |
| Crankset | Shimano Deore XT, 44/32/22 teeth |
| Cassette | SRAM PG-970 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
Brakes
| Brakes | Shimano Deore XT Ti Custom brakes, Shimano Deore XT Ti Custom levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated FSA Orbit Z |
|---|---|
| Handlebar | Bontrager Race X Lite Flat |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race X Lite |
| Saddle | Bontrager Race Lite |
| Seatpost | Bontrager Race X Lite, 31.6mm diameter |
Wheels & Tires
| Hubs | Bontrager Race Lite Centerlock Disc |
|---|---|
| Rims | Bontrager Race Lite Disc |
| Front Tire | 26 x 2.00" Bontrager XR 1 Team |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
31.6mm diameter
More parts (10)Fewer parts
44/32/22 teeth
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00" Bontrager XR 1 Team
- Drivetrain
- 9-speed
- Seatpost diameter
- 31.6 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Fox F-series Remote RL, 100mm travel · Single crown
Suspension
Evaluate the suspension →Archived: Fork: Fox F-series Remote RL, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore XT · Front derailleur: Shimano Deore XT · Rear derailleur: Shimano Deore XT · Crankset: Shimano Deore XT, 44/32/22 teeth · Cassette: SRAM PG-970 · Rear cogs: 9-speed, 11 - 34 teeth
Brakes
Inspect the brakes →Archived: Brakes: Shimano Deore XT Ti Custom brakes, Shimano Deore XT Ti Custom levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Bontrager Race Lite Disc · Hubs: Bontrager Race Lite Centerlock Disc · Front tire: 26 x 2.00" Bontrager XR 1 Team
Controls and contact points
Archived: Headset: 1 1/8" semi-ntegrated FSA Orbit Z · Handlebar: Bontrager Race X Lite Flat · Stem: Bontrager Race X Lite · Seatpost: Bontrager Race X Lite, 31.6mm diameter · Saddle: Bontrager Race Lite
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
