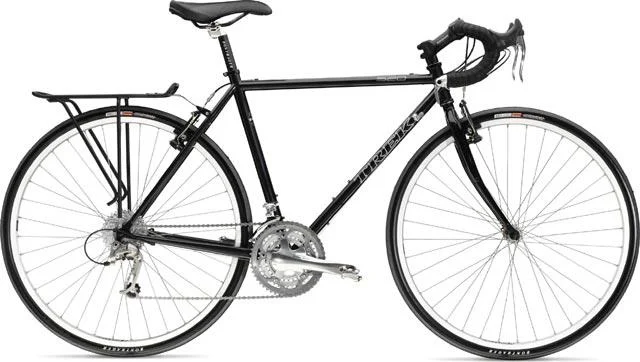

2008 Trek 520

Original specifications: Shimano Deore LX · 9-speed · mechanical rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #12801
Model year
2008
Category
Touring
Original MSRP
$1,239.99
Sizes
17", 19", 21", 23", 25"
Colors
Titanite Black
In this record
22 specifications · archived image · original MSRP
Model history 22 other years

Browse other years

Compare side by side

Identification clues

2008 archived details

Published colors
Titanite Black
Frame
Trek Butted Cro-Moly
Original equipment
Touring Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildTrek Butted Cro-Moly · Touring Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

17"19"21"23"25"

Published colors

Titanite Black
View 5 archived size/color combinations
SizeColor
17"Titanite Black
19"Titanite Black
21"Titanite Black
23"Titanite Black
25"Titanite Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialTrek Butted Cro-Moly
Fork MaterialCromo Blades and Steerer, unicrown crown

Drivetrain

Component GroupTouring Mix
ShiftersShimano Dura-Ace Bar End
Front DerailleurShimano Tiagra
Rear DerailleurShimano LX
CranksetShimano FC-R453, 30/39/50 teeth
CassetteSRAM PG-970
Rear Cogs9-speed, 11 - 32 teeth
PedalsShimano 520

Brakes

BrakesAvid SD-5 brakes, Dia-Compe 287 levers

Cockpit & Contact Points

HeadsetCane Creek BL
HandlebarBontrager Select VR OS
Handlebar ExtensionsNot included
StemBontrager Select OS
SaddleBontrager Race Basic Lux
SeatpostBontrager Select

Wheels & Tires

HubsShimano LX
RimsBontrager Maverick
Front Tire700 x 32c Bontrager Race Lite Hardcase
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/39/30T · 11–32T · 9-speed
Lowest0.94:1 Highest4.55:1 Total range485%
Estimated speed At 90 RPM Lowest gear6.8 mph Highest gear32.9 mph

Uses front tire 700C×32; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 32c Bontrager Race Lite Hardcase
Cassette · Original
SRAM PG-970
Saddle · Original
Bontrager Race Basic Lux
More parts (10)Fewer parts
Crankset · Original
Shimano FC-R453

30/39/50 teeth

Front derailleur · Original
Shimano Tiagra
Rear derailleur · Original
Shimano LX
Shifters · Original
Shimano Dura-Ace Bar End
Handlebar · Original
Bontrager Select VR OS
Stem · Original
Bontrager Select OS
Seatpost · Original
Bontrager Select
Headset · Original
Cane Creek BL
Rims · Original
Bontrager Maverick
Hubs · Original
Shimano LX

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 32c Bontrager Race Lite Hardcase
Drivetrain
9-speed
Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: · Cromo Blades and Steerer, unicrown crown

Archived: Group: Touring Mix · Shifters: Shimano Dura-Ace Bar End · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano LX · Crankset: Shimano FC-R453, 30/39/50 teeth · Cassette: SRAM PG-970 · Rear cogs: 9-speed, 11 - 32 teeth

Archived: Brakes: Avid SD-5 brakes, Dia-Compe 287 levers

Archived: Wheel size: 700c wheels · Rims: Bontrager Maverick · Hubs: Shimano LX · Front tire: 700 x 32c Bontrager Race Lite Hardcase

Controls and contact points

Archived: Headset: Cane Creek BL · Handlebar: Bontrager Select VR OS · Stem: Bontrager Select OS · Seatpost: Bontrager Select · Saddle: Bontrager Race Basic Lux · Pedals: Shimano 520
