Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

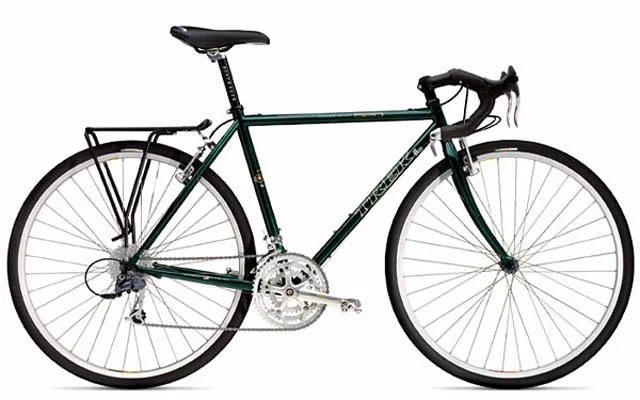

2004 Trek 520
Original specifications: Shimano Deore LX · 9-speed · mechanical rear derailleur · 700c wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #31168- Model year
- 2004
- Category
- Touring
- Original MSRP
- $1,099.99
- Sizes
- 17", 19", 21", 23", 25"
- Colors
- Rainforest Green
- Geometry
- Legacy reference
- In this record
- 27 specifications · archived image · original MSRP · geometry
Model history 22 other years
Browse other years
Compare side by side
Identification clues
2004 archived details
- Published colors
- Rainforest Green
- Frame
- Chromoly
- Original equipment
- Touring Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly · Touring Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Trek |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Touring Mix |
|---|---|
| Shifters | Shimano Dura-Ace bar-end |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano Deore LX SGS |
| Crankset | Shimano 105 Triple, 30/42/52 teeth |
| Bottom Bracket | Shimano BB-5500, 118.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Shimano PD-M520 SPD |
Brakes
| Brakes | Avid Single Digit 5 brakes, Dia-Compe 287 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cane Creek C1 |
|---|---|
| Handlebar | Bontrager Select |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race |
| Saddle | Bontrager CRZ |
| Seatpost | Bontrager Sport |
Wheels & Tires
| Hubs | Shimano Deore LX |
|---|---|
| Rims | Bontrager Fairlane, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 35c Bontrager Select |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 555 mm |
| Head-tube angle | 71° |
| Seat-tube angle | 73.5° |
| Chainstay / rear center | 450 mm |
| Wheelbase | 1054 mm |
| Fork offset / rake | 52 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
118.5mm spindle
More parts (10)Fewer parts
32-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Bontrager Select
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano BB-5500, 118.5mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Trek · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Touring Mix · Shifters: Shimano Dura-Ace bar-end · Front derailleur: Shimano 105 · Rear derailleur: Shimano Deore LX SGS · Crankset: Shimano 105 Triple, 30/42/52 teeth · Bottom bracket: Shimano BB-5500, 118.5mm spindle · Rear cogs: 9-speed, 11 - 34 teeth · Chain: 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Single Digit 5 brakes, Dia-Compe 287 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Bontrager Fairlane, 32-hole · Hubs: Shimano Deore LX · Front tire: 700 x 35c Bontrager Select
Controls and contact points
Archived: Headset: 1 1/8" threadless Cane Creek C1 · Handlebar: Bontrager Select · Stem: Bontrager Race · Seatpost: Bontrager Sport · Saddle: Bontrager CRZ · Pedals: Shimano PD-M520 SPD
