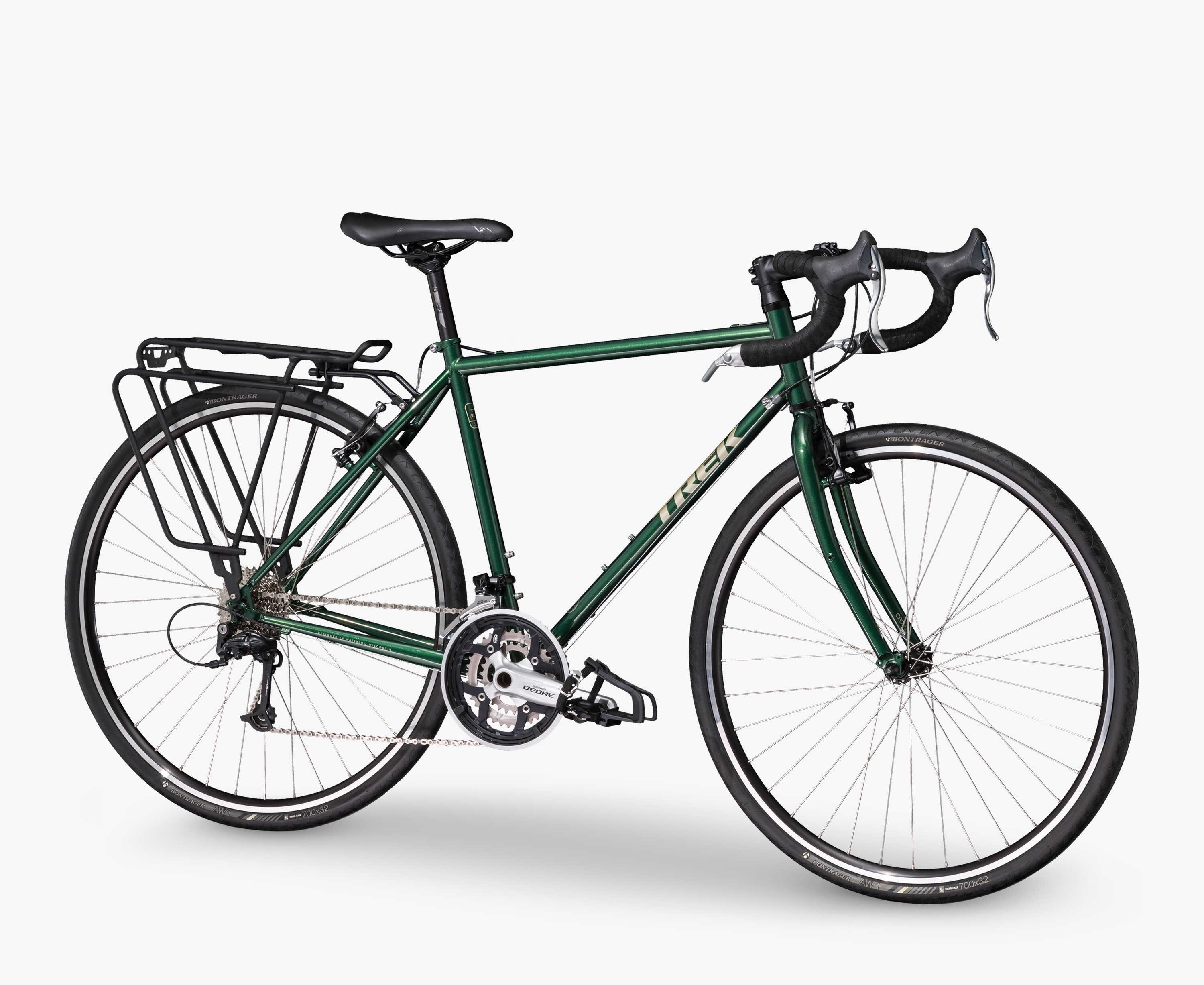

2016 Trek 520
Touring bicycle from the Velopedia specification archive.
- Original MSRP
- $1,259.99
- Sizes
- 48, 51, 54, 57, 60, 63cm
- Colors
- Deep Evergreen
- Archive ID
- 1299279
Frameset
| Frame Construction | Trek butted chromoly touring, rack & fender mounts |
|---|---|
| Frame Material | Chromoly |
| Fork | Chromoly |
| Fork Material | Chromoly |
Drivetrain
| Component Group | Touring mix |
|---|---|
| Shifters | Shimano bar end shifters |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano Trekking M590 48/36/26 w/chainguard |
| Rear Cogs | Shimano HG50, 11-32, 9 speed |
| Chain | KMC X9 |
Brakes
| Brakes | Shimano T400, V-Brakes, Tektro RL520 alloy levers |
|---|
Cockpit & Contact Points
| Headset | VP Slimstak, sealed semi-cartridge bearings |
|---|---|
| Handlebar | Bontrager Race, VR-C, 31.8mm |
| Stem | Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts |
| Saddle | Bontrager Evoke 1 |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
Wheels & Tires
| Hubs | Bontrager |
|---|---|
| Rims | Bontrager |
| Front Tire | Bontrager AW1 Hard-Case, 700x32c |
| Wheel Size | 700c |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
