Velopedia Bicycle Archive

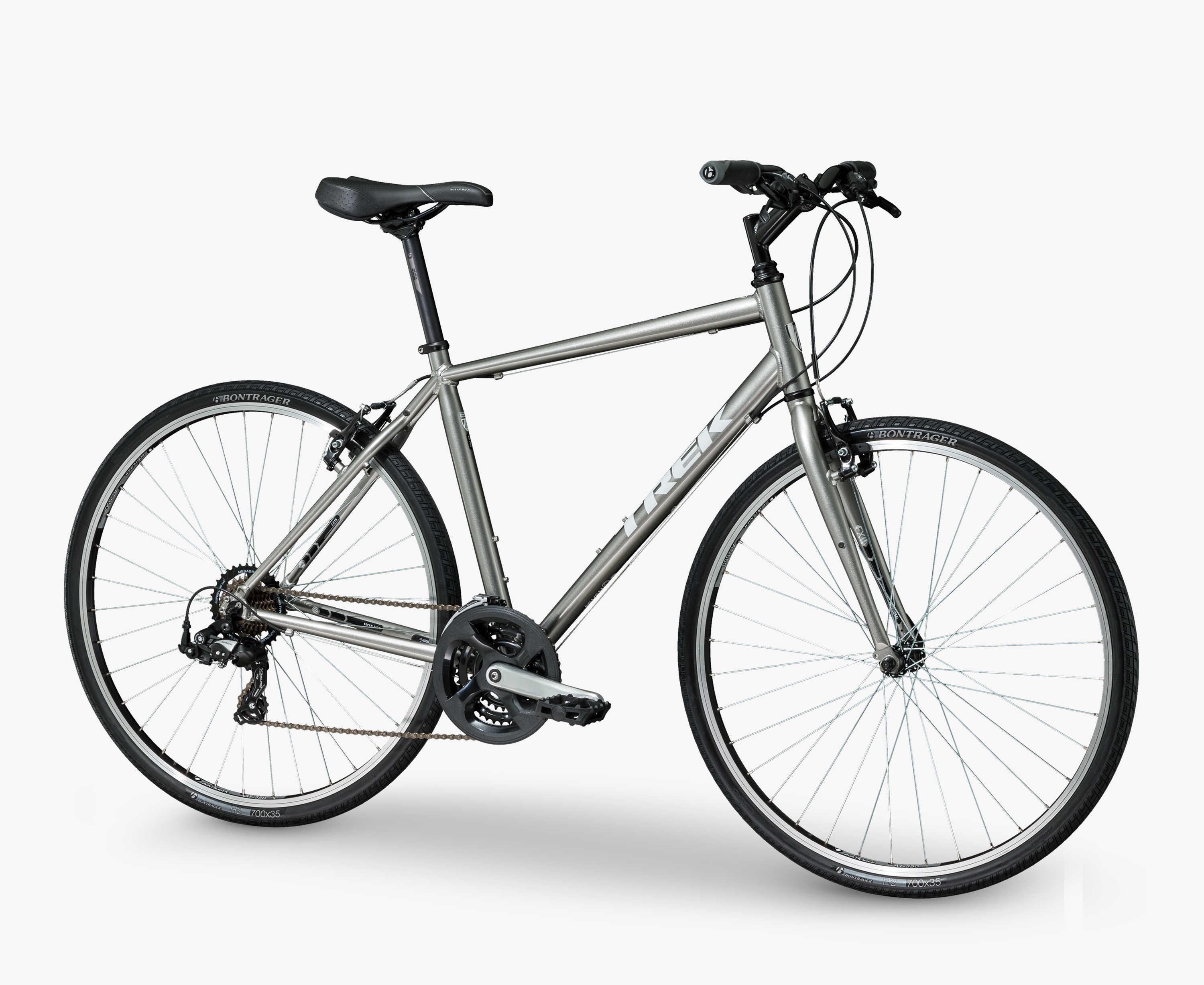

2016 Trek 7.0 FX

Original specifications: Shimano Tourney · 7-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1349735
Model year
2016
Category
City & Commuter
Original MSRP
$379.99
Sizes
15, 17.5, 20, 22.5"
Colors
Platinum
In this record
20 specifications · 2 archived images · original MSRP
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Platinum
Frame
Aluminum
Original equipment
Shimano mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum · Shimano mix · 700c

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

1517.52022.5"

Published colors

Platinum

Frameset

Frame ConstructionFX Alpha Silver Aluminum, DuoTrap S compatible, rack & fender mounts
Frame MaterialAluminum
ForkSteel
Fork MaterialSteel

Drivetrain

Component GroupShimano mix
ShiftersShimano EZ-Fire ST-EF51, 7sp
Rear DerailleurShimano Tourney
CranksetForged alloy, 48/38/28 w/chainguard
Rear CogsSunRace freewheel, 14-34, 7 speed
ChainKMC Z51

Brakes

BrakesTektro alloy linear-pull, Shimano Altus levers

Cockpit & Contact Points

HeadsetThreaded, ball bearing
HandlebarBontrager Riser, 25.4mm, 30mm rise
StemBontrager quill, 25.4mm, 25 degree
SaddleBontrager SSR
SeatpostBontrager SSR, 2-bolt head, 27.2mm, 12mm offset

Wheels & Tires

HubsBontrager
RimsBontrager
Front TireBontrager H2, 700x35c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48/38/28T · 14–34T · 7-speed
Lowest0.82:1 Highest3.43:1 Total range416%
Estimated speed At 90 RPM Lowest gear6.0 mph Highest gear25.0 mph

Uses front tire 700C×35; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z51
Cassette / rear cogs · Original
SunRace freewheel

14-34, 7 speed

Front tire · Original
Bontrager H2

700x35c

Replacement search: 700cx35 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (6)Fewer parts
Brake pads · Original
Tektro alloy linear-pull

Shimano Altus levers

Saddle · Original
Bontrager SSR
Rear derailleur · Original
Shimano Tourney
Shifters · Original
Shimano EZ-Fire ST-EF51

7sp

Stem · Original
Bontrager quill

25.4mm, 25 degree

Seatpost · Original
Bontrager SSR

2-bolt head, 27.2mm, 12mm offset

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H2, 700x35c
Drivetrain
7-speed
Seatpost diameter
27.2 mm
Sponsored affiliate link
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: FX Alpha Silver Aluminum, DuoTrap S compatible, rack & fender mounts · Fork: Steel · Steel

Archived: Group: Shimano mix · Shifters: Shimano EZ-Fire ST-EF51, 7sp · Rear derailleur: Shimano Tourney · Crankset: Forged alloy, 48/38/28 w/chainguard · Rear cogs: SunRace freewheel, 14-34, 7 speed · Chain: KMC Z51

Archived: Brakes: Tektro alloy linear-pull, Shimano Altus levers

Archived: Wheel size: 700c · Rims: Bontrager · Hubs: Bontrager · Front tire: Bontrager H2, 700x35c

Controls and contact points

Archived: Headset: Threaded, ball bearing · Handlebar: Bontrager Riser, 25.4mm, 30mm rise · Stem: Bontrager quill, 25.4mm, 25 degree · Seatpost: Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset · Saddle: Bontrager SSR
