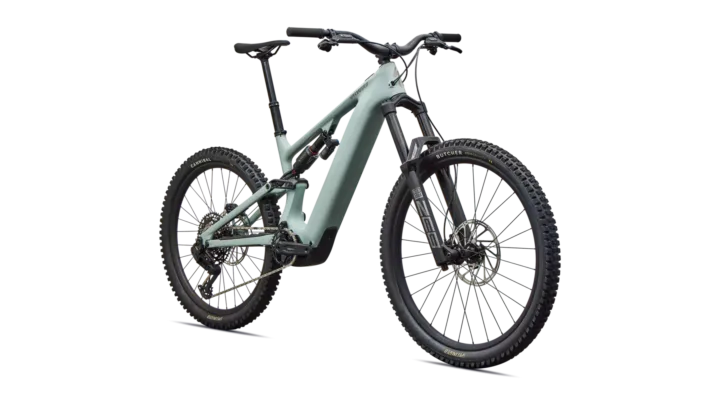

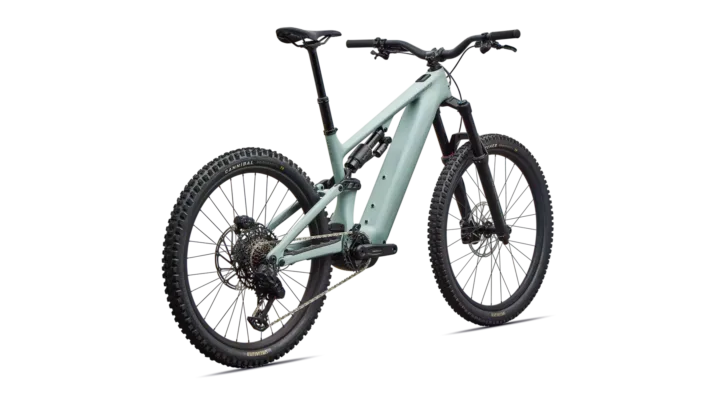

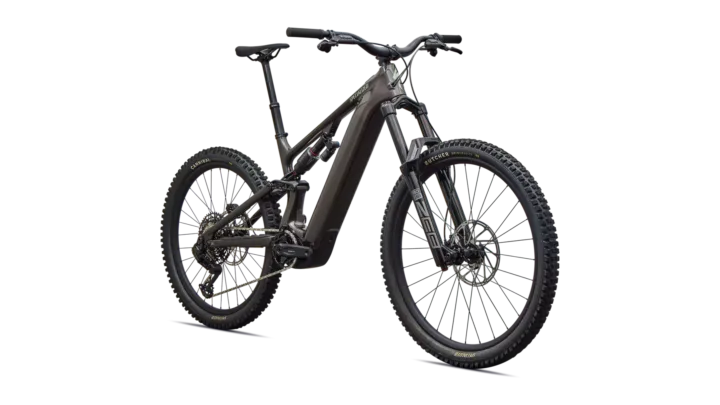

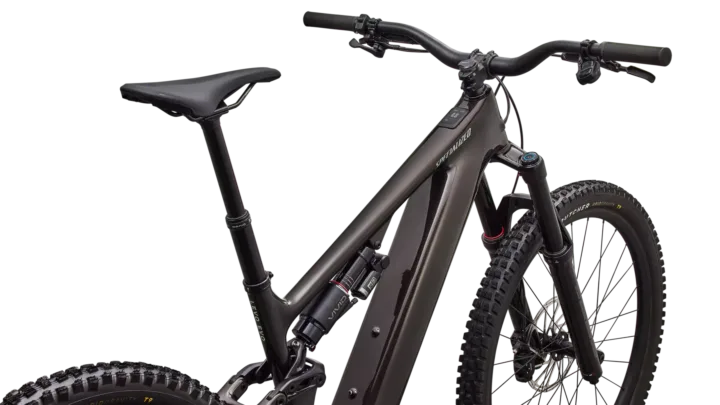

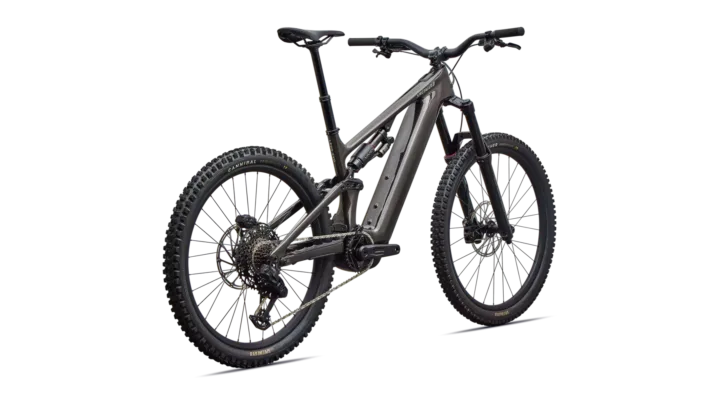

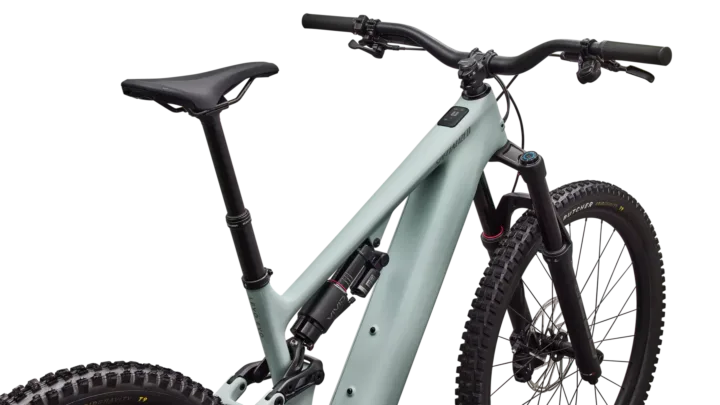

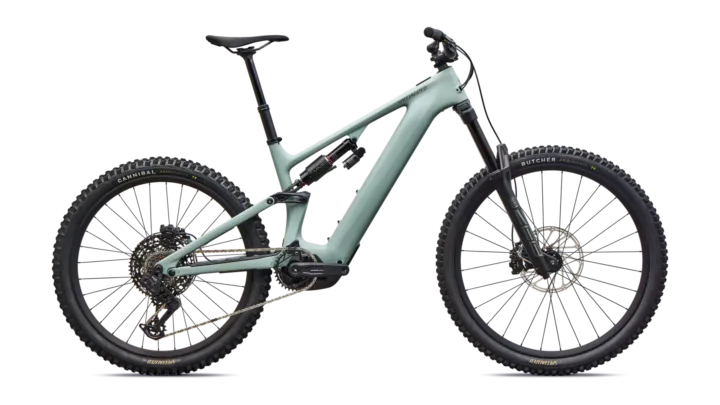

2027 Specialized Turbo Levo 4 EVO Comp

Archived: 2027 Specialized Turbo Levo 4 EVO Comp · Electric-assist · Published sizes: S2, S3, S4, S5, S6

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage · Fork: All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust · Rear shock: All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM AXS Pod Controller w/discrete clamp · Rear derailleur: SRAM S1000 Eagle AXS · Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length · Cassette: SRAM 12-speed,10-52t · Chain: SRAM GX Eagle Transmission 12-Speed Flattop Chain

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor / (R) SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: Specialized Alloy Rims · Front tire: Butcher, GRID Gravity, T9, TLR, 29x2.4" · Rear tire: Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Handlebar: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise · Stem: Alloy Trail Stem, 35mm bar bore · Seatpost: Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm · Saddle: Bridge Comp, Hollow Cr-mo rails 155/143

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Motor: Specialized 3.1 Motor, 105Nm torque, 810W power · Battery: 840Wh battery · Display: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My · Charger: Specialized 4amp charger

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
