2027 Specialized Epic 9 Sport
Original specifications: 11.91 kg (26 lb, 4.1 oz) published weight · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000950- Model year
- 2027
- Category
- Mountain
- Original MSRP
- $4,699.99
- Sizes
- S, M, L, XL
- Colors
- Gloss Dolomite Metallic, Gloss Fjord Metallic
- Weight
- 11.91 kg (26 lb, 4.1 oz)
- Geometry
- 4 manufacturer sizes
- In this record
- 20 specifications · 6 archived images · original MSRP · geometry
Original buildCarbon Fiber
Frameset
| Frame Construction | FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox REBA, Motion Control damper, 15x110mm, 44mm offset, 120mm Travel |
| Rear Shock | RockShox SIDLuxe Select+, Ride Dynamics developed 3 position, Lever adjust, Solo Air, 190x45mm |
Drivetrain
| Shifters | SRAM AXS Pod Controller w/discrete clamp |
|---|---|
| Rear Derailleur | SRAM S1000 Eagle AXS |

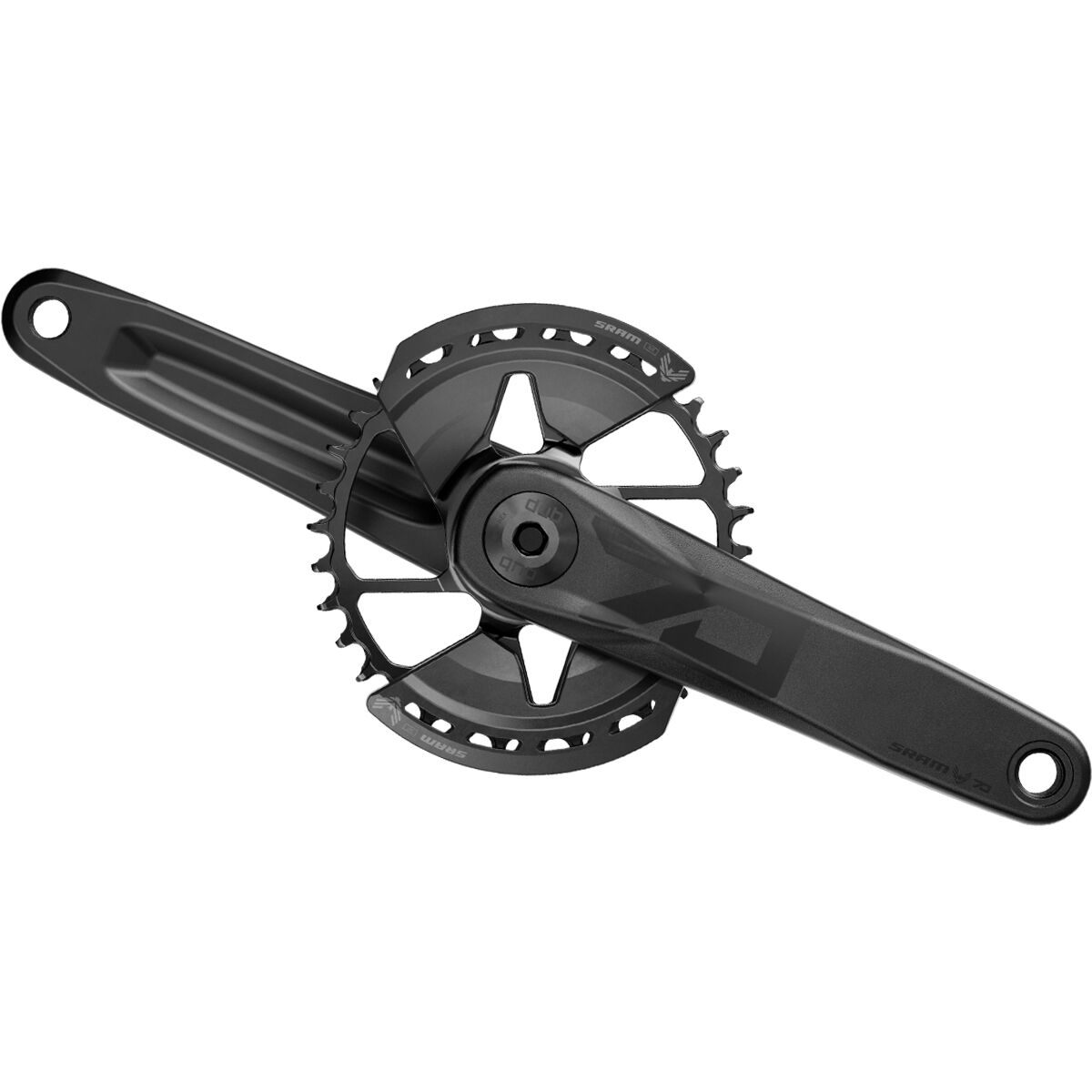

| Crankset | SRAM Eagle 70, 165/170mm, 55mm chainline, 32T |
| Bottom Bracket | SRAM DUB Threaded Wide |
| Cassette | SRAM 12-speed,10-52t |
| Chain | SRAM 70 Transmission 12-Speed Flattop Chain |
Brakes
| Brakes | (F) SRAM DB4, 4-piston caliper, hydraulic disc, 180mm rotor / (R) SRAM DB4, 4-piston caliper, hydraulic disc, 160mm rotor |
|---|
Cockpit & Contact Points
| Handlebar | Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm |
|---|---|
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | TranzX Dropper, 30.9mm, SM: 100mm, M: 125mm, L-XL: 150mm |
Wheels & Tires
| Hubs | (F) Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h / (R) Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|---|---|
| Rims | Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h |
| Spokes | Stainless, 14g |
| Front Tire | Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35 |
| Rear Tire | Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35 |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 18 measurements
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 390 mm | 410 mm | 455 mm | 505 mm |
| Effective top tube | 568 mm | 601 mm | 634 mm | 666 mm |
| Head tube | 92 mm | 105 mm | 120 mm | 150 mm |
| Head-tube angle | 65.9° | 65.9° | 65.9° | 65.9° |
| Seat-tube angle | 76° | 76° | 76° | 76° |
| Chainstay / rear center | 435 mm | 435 mm | 438 mm | 442 mm |
| Wheelbase | 1148 mm | 1184 mm | 1223 mm | 1264 mm |
| Bottom-bracket drop | 42 mm | 40 mm | 40 mm | 40 mm |
| Bottom-bracket height | 333 mm | 335 mm | 335 mm | 335 mm |
| Reach | 420 mm | 450 mm | 480 mm | 505 mm |
| Stack | 594 mm | 604 mm | 618 mm | 645 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Front center | 716 mm | 752 mm | 788 mm | 823 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Fork length / axle-to-crown | 531 mm | 531 mm | 531 mm | 531 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 60 mm | 70 mm | 70 mm | 70 mm |
| Handlebar width | 750 mm | 750 mm | 750 mm | 750 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
