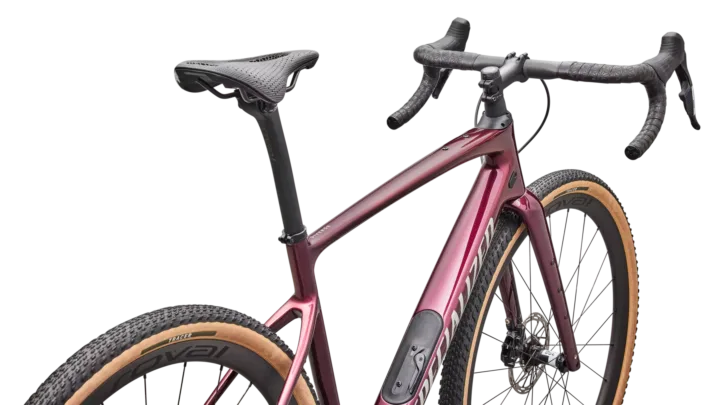

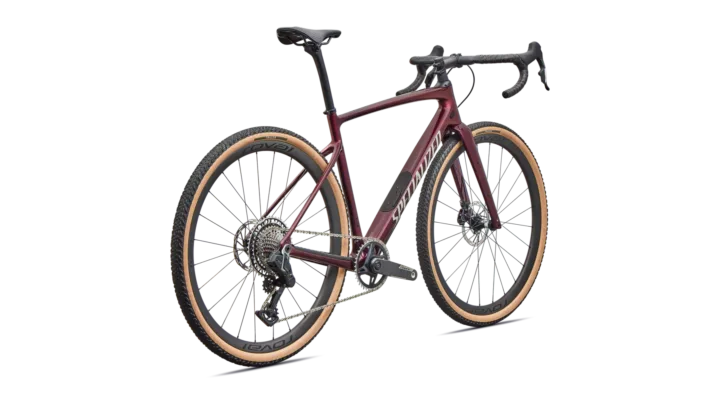

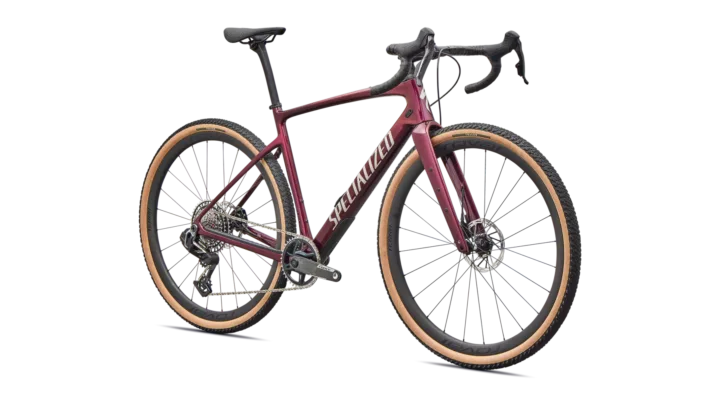

2026 Specialized Diverge 4 Pro

Original specifications: 8.39 kg (18 lb, 7.9 oz) published weight · geometry for 6 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001068
Model year
2026
Category
Gravel & Cyclocross
Original MSRP
$7,999.99
Sizes
49, 52, 54, 56, 58, 61
Colors
Bordeaux Metallic/Pearl/Dolomite
Weight
8.39 kg (18 lb, 7.9 oz)
Geometry
6 manufacturer sizes
In this record
18 specifications · 7 archived images · original MSRP · geometry
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2026 archived details

Published colors
Bordeaux Metallic/Pearl/Dolomite
Frame
Carbon Fiber

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

6 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

495254565861

Published colors

Bordeaux Metallic/Pearl/Dolomite

Frameset

Frame ConstructionSpecialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Frame MaterialCarbon Fiber
ForkFuture Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Fork MaterialCarbon Fiber

Drivetrain

ShiftersSRAM Force AXS E1, hydraulic disc
Rear DerailleurNew SRAM Force AXS E1 XPLR
CranksetNew SRAM Force E1 XPLR, DUB Wide, 40t, Quarq Power Meter
Bottom BracketSRAM DUB BSA 68 Wide
CassetteNew SRAM Force E1 XPLR 10-46t, 13sp
ChainNew SRAM Force XPLR, 13sp

Brakes

Brakes(F) New SRAM Force E1, hydraulic disc / (R) New SRAM Force E1, hydraulic disc

Cockpit & Contact Points

HandlebarRoval Terra, carbon, 103mm drop x 70mm reach x 12º flare
StemSpecialized Pro SL, alloy, 4-bolt
SaddlePower Pro Mirror, Hollow Ti rails
SeatpostRoval Terra Carbon Seat Post, 20mm Offset

Wheels & Tires

Wheels(F) Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes / (R) Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Front TireTracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear TireTracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready

Geometry

6 sizes · 18 measurements

Frame measurements by size.

All geometry measurements6 sizes · 18 measurements
Measurement495254565861
Seat tube400 mm430 mm470 mm500 mm530 mm560 mm
Effective top tube521 mm537 mm556 mm575 mm593 mm613 mm
Head tube90 mm104 mm116 mm135 mm161 mm187 mm
Head-tube angle70°70.5°71°71°71°71°
Seat-tube angle74.5°74°74°74°74°74°
Chainstay / rear center430 mm430 mm430 mm430 mm430 mm430 mm
Wheelbase1019 mm1031 mm1041 mm1060 mm1081 mm1102 mm
Bottom-bracket drop85 mm85 mm85 mm85 mm85 mm85 mm
Reach365 mm374 mm387 mm400 mm412 mm425 mm
Stack563 mm578 mm592 mm610 mm634 mm659 mm
Standover height700 mm725 mm754 mm779 mm805 mm832 mm
Fork offset / rake55 mm55 mm55 mm55 mm55 mm55 mm
Front center604 mm613 mm626 mm645 mm665 mm686 mm
Trail72 mm68 mm65 mm65 mm65 mm65 mm
Fork length / axle-to-crown391 mm391 mm391 mm391 mm391 mm391 mm
Crank length165 mm170 mm172.5 mm172.5 mm175 mm175 mm
Stem length60 mm70 mm80 mm90 mm100 mm100 mm
Handlebar width380 mm400 mm420 mm420 mm440 mm440 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes40T · 10–46T · 13-speed
Lowest0.87:1 Highest4.00:1 Total range460%
Estimated speed At 90 RPM Lowest gear6.5 mph Highest gear30.0 mph

Rear tire: 700C×45.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Bottom bracket · Original
SRAM DUB BSA 68 Wide Before ordering: Use the spacer setup for your crank.
Retailer offers
Chain · Original
New SRAM Force XPLR

13sp

Cassette · Original
New SRAM Force E1 XPLR 10-46t

13sp

More parts (7)Fewer parts
Front tire · Original
Tracer TLR All Terrain Gravel Tire 700x45

Tan Sidewall, Tubeless Ready

Replacement search: 700cx45 bicycle tire Before ordering: Check rim type and tire clearance.
Crankset · Original
New SRAM Force E1 XPLR

DUB Wide, 40t, Quarq Power Meter

Rear derailleur · Original
New SRAM Force AXS E1 XPLR
Shifters · Original
SRAM Force AXS E1

hydraulic disc

Handlebar · Original
Roval Terra

carbon, 103mm drop x 70mm reach x 12º flare

Stem · Original
Specialized Pro SL

alloy, 4-bolt

Seatpost · Original
Roval Terra Carbon Seat Post

20mm Offset

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Drivetrain
13-speed
Bottom bracket / shell
SRAM DUB BSA 68 Wide
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout · Fork: Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc · Carbon Fiber

Archived: Shifters: SRAM Force AXS E1, hydraulic disc · Rear derailleur: New SRAM Force AXS E1 XPLR · Crankset: New SRAM Force E1 XPLR, DUB Wide, 40t, Quarq Power Meter · Bottom bracket: SRAM DUB BSA 68 Wide · Cassette: New SRAM Force E1 XPLR 10-46t, 13sp · Chain: New SRAM Force XPLR, 13sp

Archived: Brakes: (F) New SRAM Force E1, hydraulic disc / (R) New SRAM Force E1, hydraulic disc

Archived: Front tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready · Rear tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready

Controls and contact points

Archived: Handlebar: Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare · Stem: Specialized Pro SL, alloy, 4-bolt · Seatpost: Roval Terra Carbon Seat Post, 20mm Offset · Saddle: Power Pro Mirror, Hollow Ti rails
