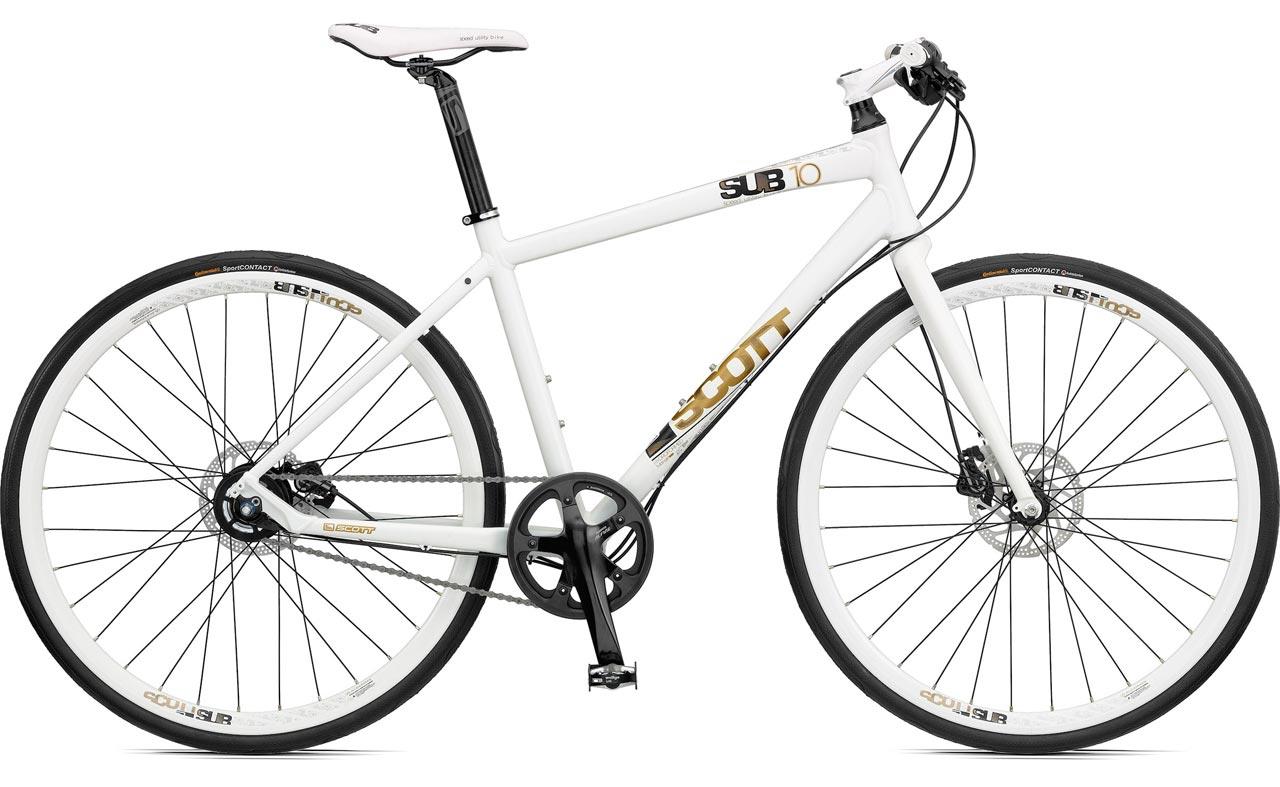

2010 Scott Sub 10

Original specifications: Commuter Mix drivetrain · 700c wheels · 26.32 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #20306
Model year
2010
Category
City & Commuter
Original MSRP
$1,149.99
Sizes
XS, S, M, L, XL
Colors
White
Weight
26.32 lb
In this record
24 specifications · archived image · original MSRP
Model history 7 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
White
Frame
Scott hydroformed alloy w Evo D/O
Original equipment
Commuter Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildScott hydroformed alloy w Evo D/O · Commuter Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XSSMLXL

Published colors

White
View 5 archived size/color combinations
SizeColor
XSWhite
SWhite
MWhite
LWhite
XLWhite

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialScott hydroformed alloy w Evo D/O
ForkStraight Blade
Fork MaterialAlloy, unicrown crown

Drivetrain

Component GroupCommuter Mix
ShiftersShimano SL-S500 Alfine Rapidfire
CranksetShimano FC-S500, 45 teeth
Bottom BracketShimano
CassetteShimano CS-S500
Rear Cogs1-speed, 20 teeth
ChainShimano HG53
PedalsWellgo 127A

Brakes

BrakesShimano BR-M575 w/160mm CL rotor brakes, Shimano BR-M575 Hydraulic levers

Cockpit & Contact Points

Headset1 1/8" semi-ntegrated Ritchey Comp Logic Zero
HandlebarScott SUB 1 OS, 580mm 9-degree
Handlebar ExtensionsNot included
StemScott Comp JD ST 57 OS
SaddleScott SUB SCT 19
SeatpostScott Comp, 31.6mm diameter

Wheels & Tires

HubsFront: Scott Comp Disc centerlock, Rear: Shimano SG-S 501 Inter 8
RimsFront: Alex SUB, Rear: Aluex SUB, 32-hole
SpokesDT Swiss stainless steel, 15ga. (1.8mm) straight gauge
Front Tire700 x 32c Continental Sport Contact
Wheel Size700c wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
700 x 32c Continental Sport Contact
Retailer offers

Continental Ultra Sport Iii Road Bike Tire - 700C - (Clincher Wire) Black/Black, 700c x 32mm

700x32c

Replacement option

Other replacement options (1)
Seatpost · Original
Scott Comp

31.6mm diameter

Retailer offers
Chain · Original
Shimano HG53
More parts (5)Fewer parts
Cassette · Original
Shimano CS-S500
Pedals · Original
Wellgo 127A
Crankset · Original
Shimano FC-S500

45 teeth

Shifters · Original
Shimano SL-S500 Alfine Rapidfire
Headset · Original
1 1/8" semi-ntegrated Ritchey Comp Logic Zero

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 32c Continental Sport Contact
Drivetrain
1-speed
Seatpost diameter
31.6 mm
Bottom bracket / shell
Shimano
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Straight Blade · Alloy, unicrown crown

Archived: Group: Commuter Mix · Shifters: Shimano SL-S500 Alfine Rapidfire · Crankset: Shimano FC-S500, 45 teeth · Bottom bracket: Shimano · Cassette: Shimano CS-S500 · Rear cogs: 1-speed, 20 teeth · Chain: Shimano HG53

Archived: Brakes: Shimano BR-M575 w/160mm CL rotor brakes, Shimano BR-M575 Hydraulic levers

Archived: Wheel size: 700c wheels · Rims: Front: Alex SUB, Rear: Aluex SUB, 32-hole · Hubs: Front: Scott Comp Disc centerlock, Rear: Shimano SG-S 501 Inter 8 · Front tire: 700 x 32c Continental Sport Contact

Controls and contact points

Archived: Headset: 1 1/8" semi-ntegrated Ritchey Comp Logic Zero · Handlebar: Scott SUB 1 OS, 580mm 9-degree · Stem: Scott Comp JD ST 57 OS · Seatpost: Scott Comp, 31.6mm diameter · Saddle: Scott SUB SCT 19 · Pedals: Wellgo 127A
