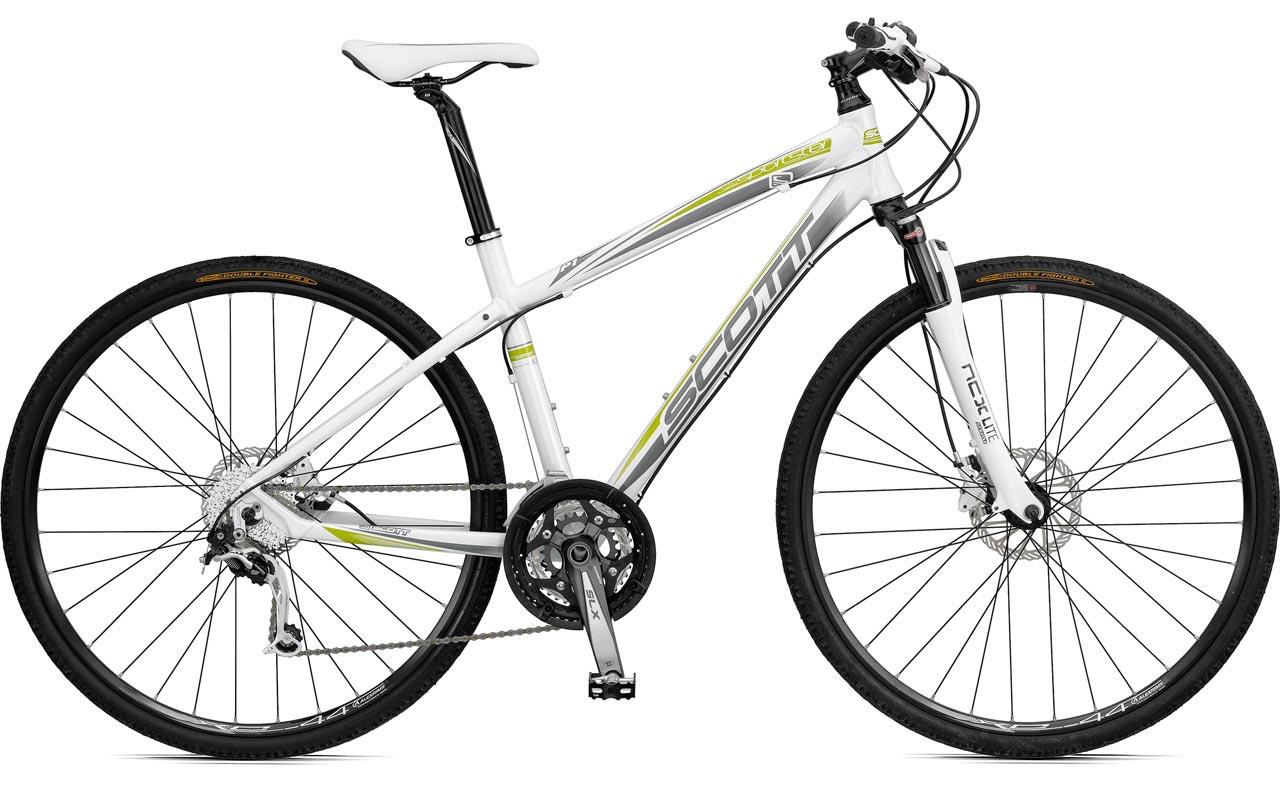

2010 Scott Sportster P1
City/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $1,199.99
- Sizes
- S,M,L,XL,XXL
- Colors
- White/Gray/Green
- Weight
- 26.65
- Archive ID
- 20273
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | 6061 Alloy |
|---|
| Fork | Suntour NCX-D RL-A, 63mm travel |
|---|
| Fork Material | Single |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Commuter Mix |
|---|
| Shifters | Shimano Deore SL-M590 R-fire plus 2 |
|---|
| Front Derailleur | Shimano Deore FC-M590, clamp on 34.9mm |
|---|
| Rear Derailleur | Shimano XT RD-M772 SGS Shadow |
|---|
| Crankset | Shimano SLX FC-M660, 26/36/48 teeth |
|---|
| Bottom Bracket | Shimano Cartridge |
|---|
| BB Shell Width | 68mm |
|---|
| Cassette | Shimano HG-50 |
|---|
| Rear Cogs | 9-speed, 11 - 32 teeth |
|---|
| Chain | Shimano CN-HG53 |
|---|
| Pedals | Wellgo C 128 |
|---|
Brakes
| Brakes | Avid Elixer 5 w/160mm rotor brakes, Avid Elixer 5 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey Logic Comp |
|---|
| Handlebar | Scott Sportster OS 580mm, 9° bend/Solution: 610mm, 15° bend |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Scott Comp |
|---|
| Saddle | Scott Sportster/Sportster Solution |
|---|
| Seatpost | Scott Comp, 31.6mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Scott Team Disc, Rear: Shimano M525 disc |
|---|
| Rims | Alex XC-44 disc, 32-hole |
|---|
| Spokes | DT Swiss Champion stainless steel, 15ga. (1.8mm) straight gauge |
|---|
| Front Tire | 700 x 37c Continental Double Fighter 2 |
|---|
| Wheel Size | 700c wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
