Lowest0.81:1
Highest4.36:1
Total range537%
Velopedia Bicycle Archive

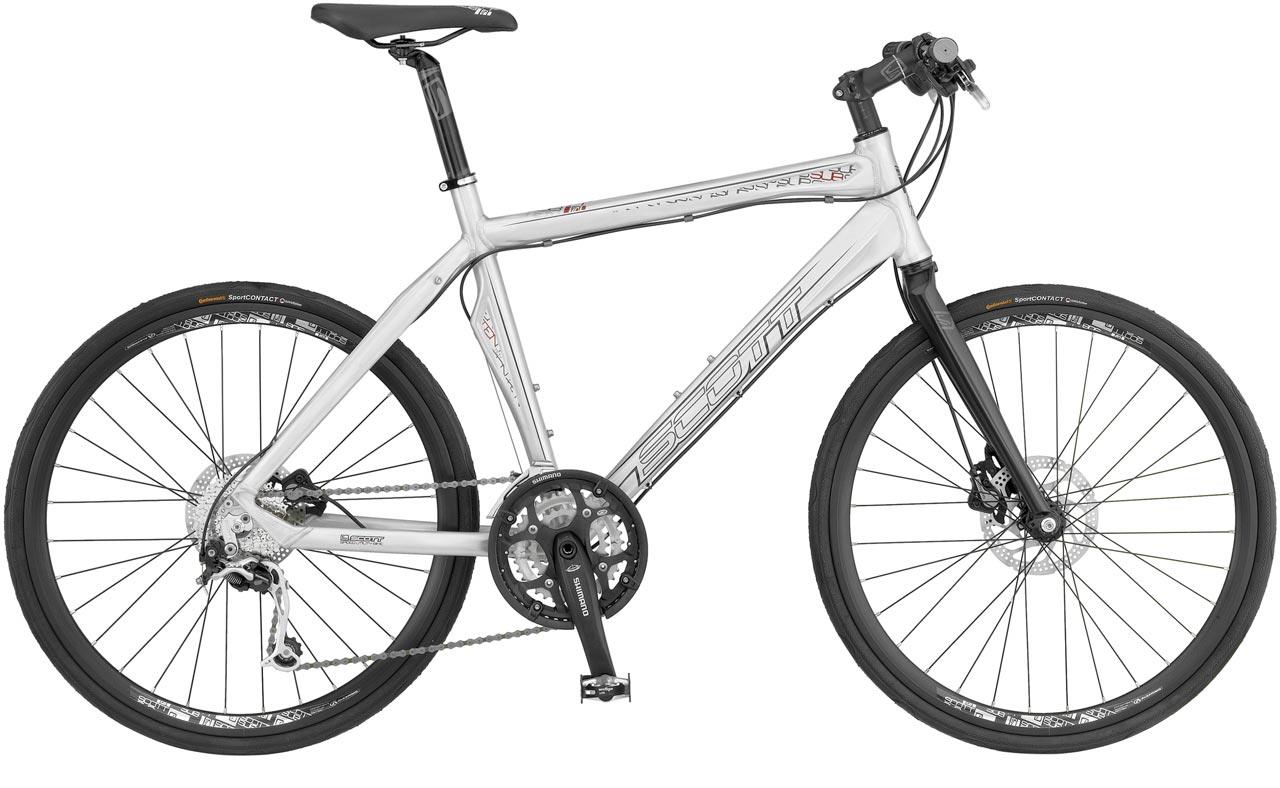

2009 Scott Sub 10
Original specifications: Shimano Deore drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #17506- Model year
- 2009
- Category
- Road
- Original MSRP
- $1,099.99
- Sizes
- S, M, L, XL
- Colors
- Silver/Black/Red
- In this record
- 27 specifications · archived image · original MSRP
Model history 7 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Silver/Black/Red
- Frame
- Evo/Aero alloy
- Original equipment
- Shimano Deore
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildEvo/Aero alloy · Shimano Deore · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Evo/Aero alloy |
| Fork | Scott Sub |
| Fork Material | Alloy, unicrown crown |
Drivetrain
| Component Group | Shimano Deore |
|---|---|
| Shifters | Shimano Deore RapidFire |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano XT |
| Crankset | Shimano FC-M521, 26/36/48 teeth |
| Bottom Bracket | Shimano BB-ES25, 113mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG-53 |
| Pedals | Wellgo 998S |
Brakes
| Brakes | Shimano M486 w/160mm Rotor brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey Comp Logic Zero |
|---|---|
| Handlebar | Scott X-Rod |
| Handlebar Extensions | Not included |
| Stem | NVO F2 OS adjustable |
| Saddle | Scott SUB |
| Seatpost | Scott Comp HL-209, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Scott Comp Disc centerlock, Rear: Shimano FH-M535 centerlock |
|---|---|
| Rims | Alex SUB, 32-hole |
| Spokes | Sapim stainless, 15ga. (1.8mm) |
| Front Tire | 26 x 1.30" Continental Sport Contact |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Scott Comp HL-209
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
Shimano HG50
More parts (9)Fewer parts
26 x 1.30" Continental Sport Contact
Continental Sport Contact on eBaySponsored links
Shimano BB-ES25
113mm spindle
Wellgo 998S
Shimano FC-M521
26/36/48 teeth
Shimano Deore
Shimano XT
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano Deore RapidFire
1 1/8" Ritchey Comp Logic Zero
Alex SUB
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 1.30" Continental Sport Contact
- Drivetrain
- 9-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Shimano BB-ES25, 113mm spindle · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Scott Sub · Alloy, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Deore · Shifters: Shimano Deore RapidFire · Front derailleur: Shimano Deore · Rear derailleur: Shimano XT · Crankset: Shimano FC-M521, 26/36/48 teeth · Bottom bracket: Shimano BB-ES25, 113mm spindle · Cassette: Shimano HG50 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano HG-53
Brakes
Inspect the brakes →Archived: Brakes: Shimano M486 w/160mm Rotor brakes, Shimano M486 hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex SUB, 32-hole · Hubs: Front: Scott Comp Disc centerlock, Rear: Shimano FH-M535 centerlock · Front tire: 26 x 1.30" Continental Sport Contact
Controls and contact points
Archived: Headset: 1 1/8" Ritchey Comp Logic Zero · Handlebar: Scott X-Rod · Stem: NVO F2 OS adjustable · Seatpost: Scott Comp HL-209, 31.6mm diameter · Saddle: Scott SUB · Pedals: Wellgo 998S
