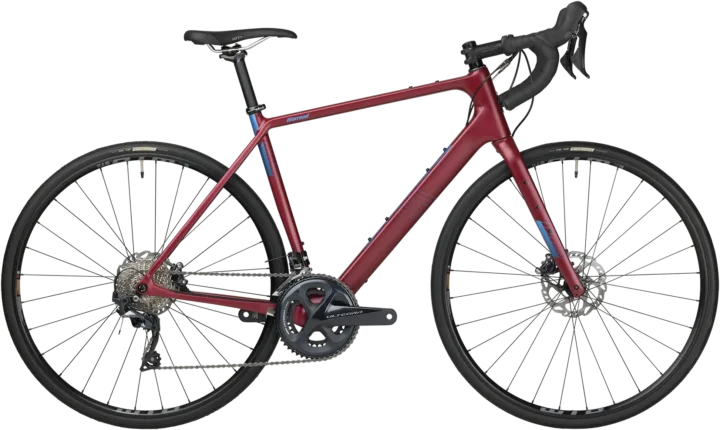

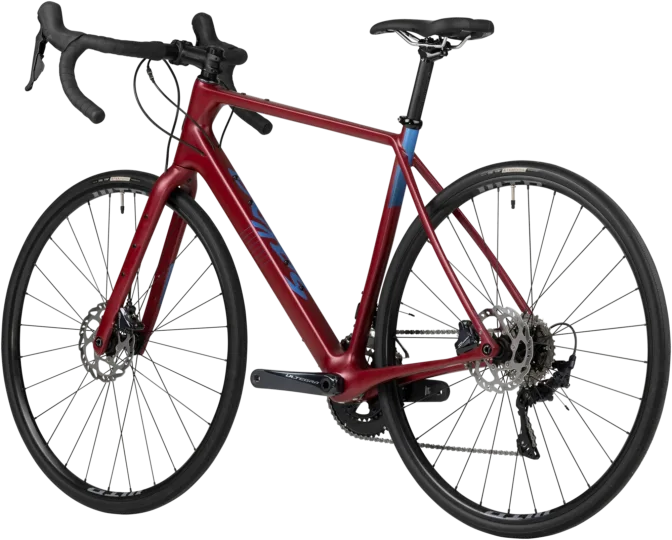

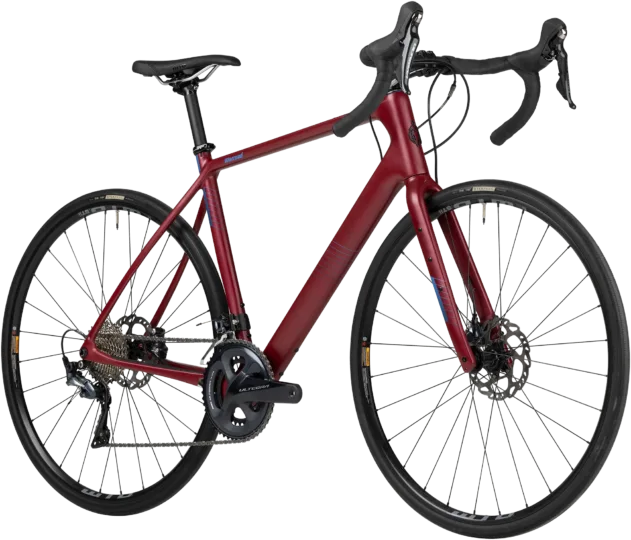

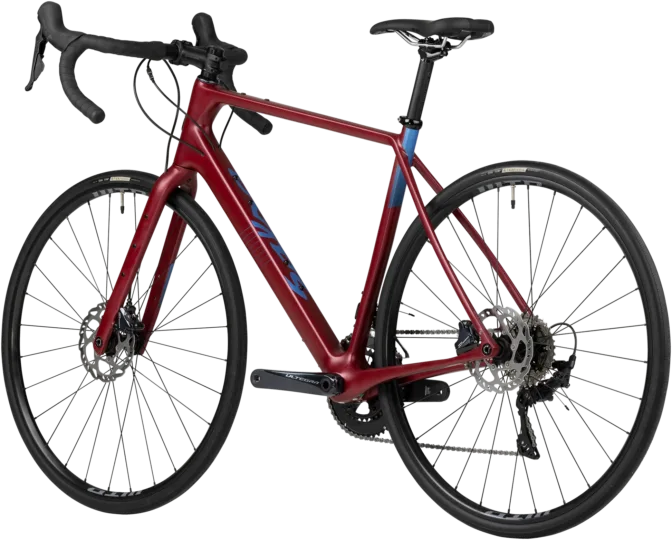

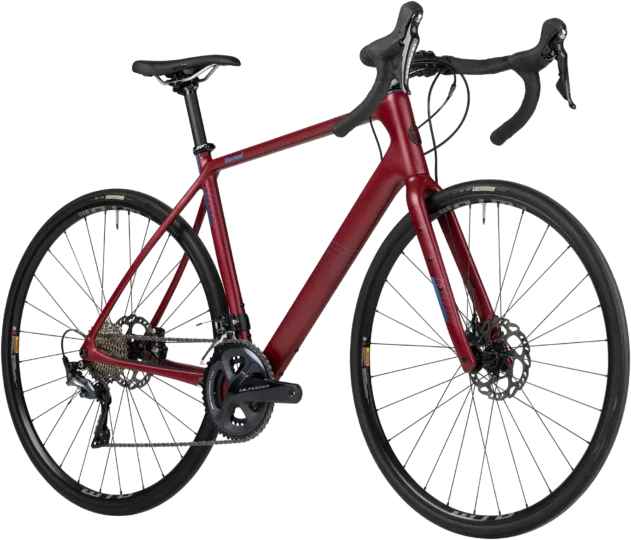

2022 Salsa Warroad C Ultegra
Original specifications: 700C; 32"; 29"; 27.5"; 26" wheels · 19 lb 4 oz (56 cm frame) published weight · geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2022
- Category
- Road
- Original MSRP
- $4,599.00
- Sizes
- 49cm, 52.5cm, 54.5cm, 56cm, 57.5cm, 59cm, 61cm
- Colors
- Dark Red
- Weight
- 19 lb 4 oz (56 cm frame)
- Geometry
- 7 manufacturer sizes
- In this record
- 18 specifications · 6 archived images · original MSRP · geometry
- Archive ID
- 900000613
Original build700C; 32"; 29"; 27.5"; 26"
Frameset
| Frame Construction | Warroad |
|---|---|
| Fork | Warroad Carbon |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Ultegra R8020 |
|---|---|
| Front Derailleur | Shimano Ultegra R8000 |
| Rear Derailleur | Shimano Ultegra R8000 |
| Crankset | Shimano Ultegra R8000, 50/34t |
| Cassette | Shimano HG700, 11–34t, 11-speed |
| Chain | Shimano HG601 |
Brakes
| Brakes | Brake Calipers: Shimano Ultegra 8070; Rotors: Shimano RT70 (Center Lock, 160 mm) |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 40 |
|---|---|
| Handlebar | Zoom DR-AL-199BTFOV |
| Stem | Salsa Guide |
| Saddle | WTB SL8 Medium Steel SL |
| Seatpost | Salsa Guide |
Wheels & Tires
| Front Tire | Teravail Rampart 700c x 32 mm, Light & Supple casing, tubeless-ready |
|---|---|
| Rear Tire | Teravail Rampart 700c x 32 mm, Light & Supple casing, tubeless-ready |
| Wheel Size | 700C; 32"; 29"; 27.5"; 26" |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements7 sizes · 15 measurements
| Measurement | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Seat tube | 400 mm | 450 mm | 485 mm | 520 mm | 530 mm | 555 mm | 580 mm |
| Effective top tube | 499 mm | 525 mm | 545 mm | 560 mm | 575 mm | 590 mm | 610 mm |
| Head tube | 92 mm | 132 mm | 152 mm | 172 mm | 192 mm | 212 mm | 232 mm |
| Head-tube angle | 70.5° | 71° | 71° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 75° | 74° | 73° | 73° | 73° | 73° | 72.5° |
| Chainstay / rear center | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 994.33 mm | 1004.68 mm | 1020.41 mm | 1036.14 mm | 1051.87 mm | 1066.47 mm |
| Bottom-bracket drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Reach | 363.14 mm | 368.25 mm | 372.1 mm | 381.31 mm | 390.54 mm | 399.75 mm | 407.83 mm |
| Stack | 507.02 mm | 546.64 mm | 565.55 mm | 584.46 mm | 603.73 mm | 622.28 mm | 641.19 mm |
| Standover height | 665.27 mm | 717.9 mm | 747.41 mm | 761.44 mm | 787.56 mm | 809.98 mm | 832.12 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork length / axle-to-crown | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 70 mm | 80 mm | 90 mm | 90 mm | 100 mm | 110 mm |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts

Shimano SLX/105 CN-HG601 11-Speed Chain Grey, 126 Links
126 Links

Shimano 105 CS-HG700 Cassette Gray, 11x34
11x34

Challenge Strada Pro Tubeless Tire Tan, 700x32
700x32
Replacement option · verify fit
More parts (6)

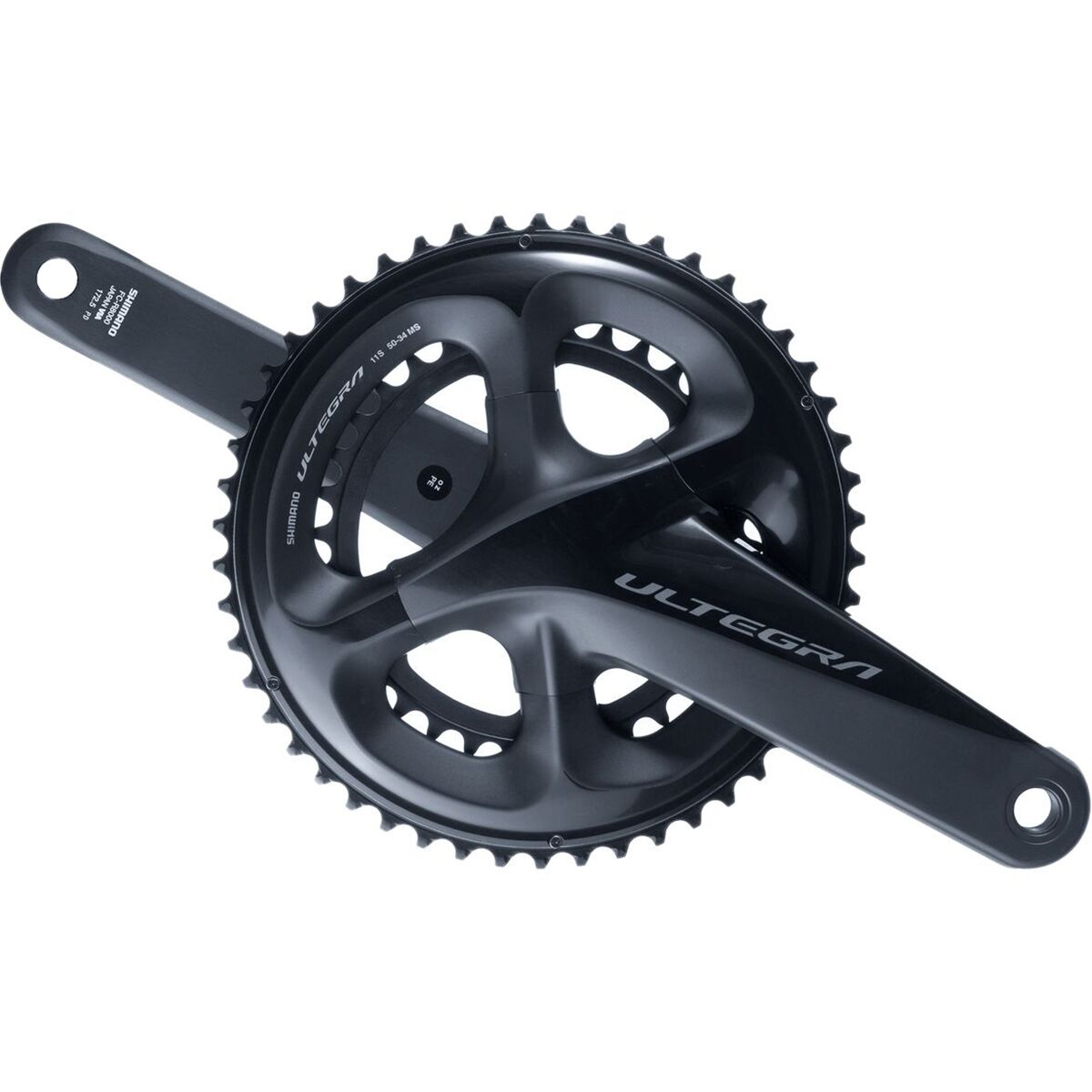

Shimano Ultegra FC-R8000 Crankset Gray, 172.5x50/34
172.5x50/34
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Salsa Warroad C Ultegra · Road · Published sizes: 49cm, 52.5cm, 54.5cm, 56cm, 57.5cm, 59cm, 61cm
Frame and fork
Inspect the frame and fork →Archived: Frame: Warroad · Fork: Warroad Carbon · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Ultegra R8020 · Front derailleur: Shimano Ultegra R8000 · Rear derailleur: Shimano Ultegra R8000 · Crankset: Shimano Ultegra R8000, 50/34t · Cassette: Shimano HG700, 11–34t, 11-speed · Chain: Shimano HG601
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano Ultegra 8070; Rotors: Shimano RT70 (Center Lock, 160 mm)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C; 32"; 29"; 27.5"; 26" · Front tire: Teravail Rampart 700c x 32 mm, Light & Supple casing, tubeless-ready · Rear tire: Teravail Rampart 700c x 32 mm, Light & Supple casing, tubeless-ready
Controls and contact points
Archived: Headset: Cane Creek 40 · Handlebar: Zoom DR-AL-199BTFOV · Stem: Salsa Guide · Seatpost: Salsa Guide · Saddle: WTB SL8 Medium Steel SL
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery6 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
