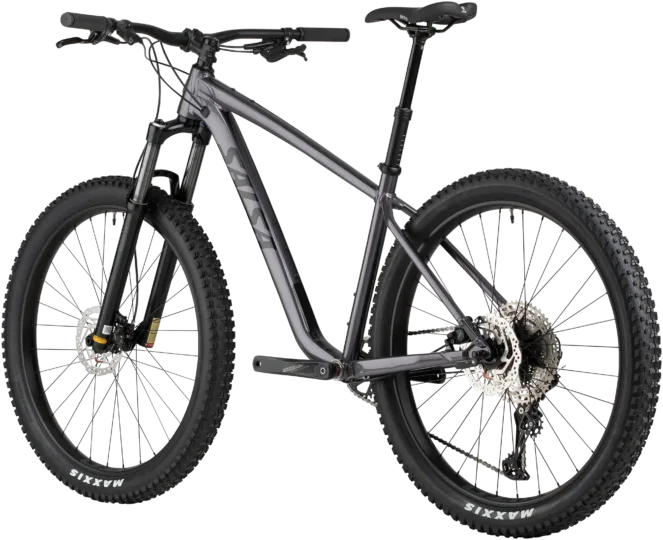

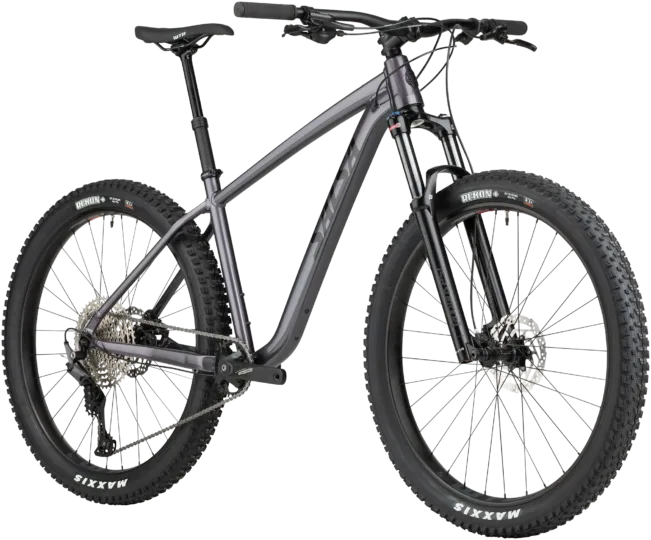

2022 Salsa Rangefinder Deore 11 27.5+
Original specifications: 27.5"; 29" wheels · 32 lb 11 oz (with tubes, no pedals) for Medium published weight · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000602- Model year
- 2022
- Category
- Mountain
- Original MSRP
- $1,199.00
- Sizes
- XS, S, M, L, XL
- Colors
- Dark Gray
- Weight
- 32 lb 11 oz (with tubes, no pedals) for Medium
- Geometry
- 5 manufacturer sizes
- In this record
- 17 specifications · 3 archived images · original MSRP · geometry
Original buildAluminum · 27.5"; 29"
Frameset
| Frame Construction | Rangefinder Aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm |
Drivetrain
| Shifters | Shimano Deore M5100 |
|---|---|
| Rear Derailleur | Shimano Deore M5100 SGS |
| Crankset | FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket |
| Cassette | Shimano Deore M5100 11–51t, 11-speed |
| Chain | Shimano HG601 |
Brakes
| Brakes | Brake Calipers: Shimano MT200 OR Promax DSK-925; Rotors: Shimano RT10 Center Lock rotors (160 mm) |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit NO.57B 1.5 ZS |
|---|---|
| Handlebar | Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL |
| Stem | Salsa Guide 31.8, 60 mm |
| Saddle | WTB Volt Medium, Steel, 142 x 265 mm |
| Seatpost | TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL |
Wheels & Tires
| Front Tire | Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible) |
|---|---|
| Rear Tire | Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible) |
| Wheel Size | 27.5"; 29" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 16 measurements
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 355 mm | 381 mm | 431 mm | 470 mm | 508 mm |
| Effective top tube | 568.2 mm | 590.5 mm | 614.8 mm | 643.5 mm | 670.1 mm |
| Head tube | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Head-tube angle | 68° | 68° | 68° | 68° | 68° |
| Seat-tube angle | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1100.6 mm | 1123.4 mm | 1148.3 mm | 1178 mm | 1205.8 mm |
| Bottom-bracket drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Reach | 395 mm | 416 mm | 439 mm | 465 mm | 489 mm |
| Stack | 605.6 mm | 610.2 mm | 614.9 mm | 624.2 mm | 633.4 mm |
| Standover height | 678.6 mm | 698.3 mm | 737.2 mm | 769.1 mm | 798.7 mm |
| Fork offset / rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Fork length / axle-to-crown | 510 mm | 510 mm | 510 mm | 510 mm | 510 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Handlebar width | 750 mm | 750 mm | 800 mm | 800 mm | 800 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
