Velopedia Bicycle Archive

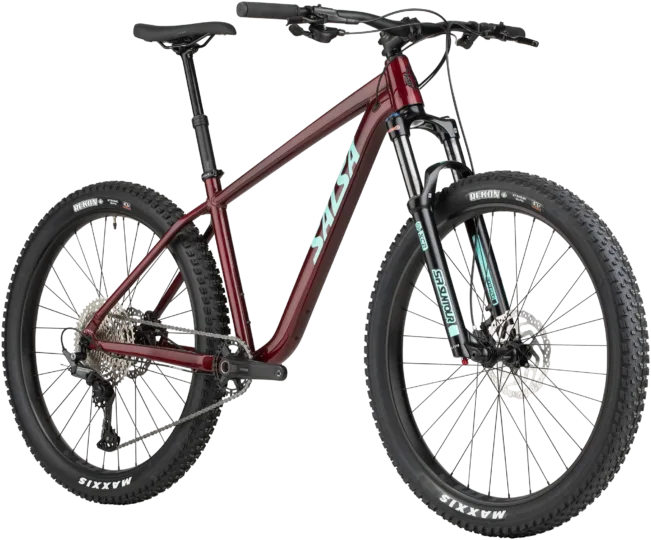

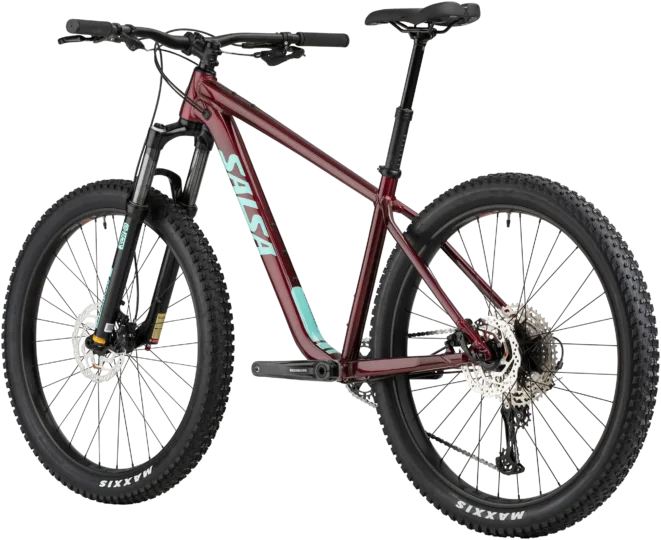

2022 Salsa Rangefinder Deore 12 27.5+
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $1,499.00
- Sizes
- XS, S, M, L, XL
- Colors
- Dark Red
- Weight
- 32 lb 10 oz (with tubes, no pedals) for Medium
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000600
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The fork provides the documented suspension, so fork setup and rear-tire pressure are the main adjustments for balancing the two ends of the bike. Both 27.5- and 29-inch wheels appear in the record, but it does not establish a mixed front/rear build; confirm the correct diameter for the selected frame size. The 510% cassette range describes the available gearing more clearly than the component-group name alone.
Suspension setup
Front only
Fork settings affect the front while rear-wheel behavior remains dependent on tire and wheel setup.
Wheel system
27.5 / 29 options
Both diameters are documented, but the archive does not prove a mixed front/rear setup.
Gearing
510% cassette range
Calculated from the published 10–51-tooth sprocket span.
Tire setup
Tubeless-ready
The rims and tires may support tubeless use, but the bike may still be running tubes.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Salsa Rangefinder Deore 12 27.5+ · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Rangefinder Aluminum · Fork: SR Suntour XCR34 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, TNL, 120 mm
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour XCR34 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, TNL, 120 mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore M6100 · Rear derailleur: Shimano Deore M6100 SGS · Crankset: Shimano MT501, 30t, Shimano BB52 BSA bottom bracket · Cassette: Shimano Deore M6100 10–51t, 12-speed · Chain: Shimano Deore M6100
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano MT200 OR Promax DSK-925; Rotors: Shimano RT10 Center Lock rotors (160 mm)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5"; 29" · Front tire: Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible) · Rear tire: Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)
Controls and contact points
Archived: Headset: FSA Orbit NO.57E 1.5 ZS · Handlebar: Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL · Stem: Salsa Guide 31.8, 60 mm · Seatpost: TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL · Saddle: WTB Volt Medium, Steel, 142 x 265 mm
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Rangefinder Aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCR34 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, TNL, 120 mm |
Drivetrain
| Shifters | Shimano Deore M6100 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore M6100 SGS |
| Crankset | Shimano MT501, 30t, Shimano BB52 BSA bottom bracket |
| Cassette | Shimano Deore M6100 10–51t, 12-speed |
| Chain | Shimano Deore M6100 |
Brakes
| Brakes | Brake Calipers: Shimano MT200 OR Promax DSK-925; Rotors: Shimano RT10 Center Lock rotors (160 mm) |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit NO.57E 1.5 ZS |
|---|---|
| Handlebar | Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL |
| Stem | Salsa Guide 31.8, 60 mm |
| Saddle | WTB Volt Medium, Steel, 142 x 265 mm |
| Seatpost | TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL |
Wheels & Tires
| Front Tire | Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible) |
|---|---|
| Rear Tire | Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible) |
| Wheel Size | 27.5"; 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 355 mm | 381 mm | 431 mm | 470 mm | 508 mm |
| Effective top tube | 568.2 mm | 590.5 mm | 614.8 mm | 643.5 mm | 670.1 mm |
| Head tube | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Head-tube angle | 68° | 68° | 68° | 68° | 68° |
| Seat-tube angle | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1100.6 mm | 1123.4 mm | 1148.3 mm | 1178 mm | 1205.8 mm |
| Bottom-bracket drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Reach | 395 mm | 416 mm | 439 mm | 465 mm | 489 mm |
| Stack | 605.6 mm | 610.2 mm | 614.9 mm | 624.2 mm | 633.4 mm |
| Standover height | 678.6 mm | 698.3 mm | 737.2 mm | 769.1 mm | 798.7 mm |
| Fork offset / rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Fork length / axle-to-crown | 510 mm | 510 mm | 510 mm | 510 mm | 510 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Handlebar width | 750 mm | 750 mm | 800 mm | 800 mm | 800 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
X-Small geometry
Riding position
The 605.6 mm stack is tall relative to the 395 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit.
Handling tendencies
A 68° head angle combined with a 1100.6 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 395 mm sits toward the shorter end. Its stack of 605.6 mm sits toward the taller end. Its wheelbase of 1100.6 mm sits toward the shorter end.
Small geometry
Riding position
The 610.2 mm stack is tall relative to the 416 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit.
Handling tendencies
A 68° head angle combined with a 1123.4 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its wheelbase of 1123.4 mm sits toward the shorter end. The seat angle of 74° sits toward the more relaxed end. The head angle of 68° sits toward the steeper end.
Medium geometry
Riding position
The 614.9 mm stack is tall relative to the 439 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit.
Handling tendencies
A 68° head angle combined with a 1148.3 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its wheelbase of 1148.3 mm sits toward the shorter end. The head angle of 68° sits toward the steeper end. The seat angle of 74° sits toward the more relaxed end.
Large geometry
Riding position
A 465 mm reach paired with 624.2 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end.
Handling tendencies
A 68° head angle combined with a 1178 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its wheelbase of 1178 mm sits toward the shorter end. The head angle of 68° sits toward the steeper end. The seat angle of 74° sits toward the more relaxed end.
X-Large geometry
Riding position
With 489 mm of reach and 633.4 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit.
Handling tendencies
A 68° head angle combined with a 1205.8 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its wheelbase of 1205.8 mm sits toward the shorter end. Its reach of 489 mm sits toward the shorter end. The head angle of 68° sits toward the steeper end.
Across the size range
From X-Small to X-Large, reach grows by 94 mm and stack by 27.8 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 439 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
