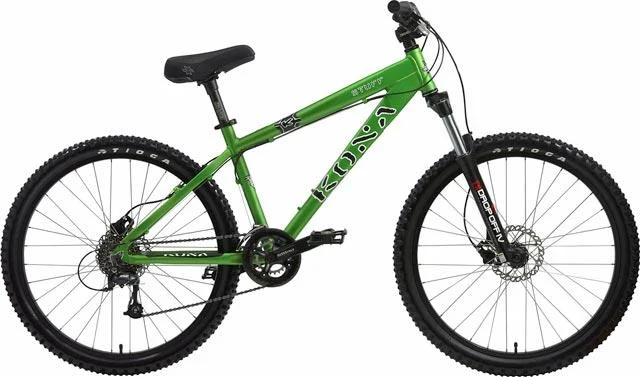

2006 Kona Stuff

Original specifications: Shimano Alivio · 8-speed · mechanical rear derailleur · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #10888
Model year
2006
Category
Mountain
Original MSRP
$999.00
Sizes
13"(XS), 15"(S), 15.5"(M), 17"(L), 17.5"(XL)
Colors
Green
In this record
26 specifications · archived image · original MSRP
Model history 10 other years

Browse other years

Compare side by side

Identification clues

2006 archived details

Published colors
Green
Frame
Kona Clump 7005 Aluminum
Original equipment
Mountain mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildKona Clump 7005 Aluminum · Mountain mix · 26" wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

13"(XS)15"(S)15.5"(M)17"(L)17.5"(XL)

Published colors

Green
View 5 archived size/color combinations
SizeColor
13"(XS)Green
15"(S)Green
15.5"(M)Green
17"(L)Green
17.5"(XL)Green

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialKona Clump 7005 Aluminum
ForkMarzocchi Drop-Off 4, 100mm travel
Fork MaterialAluminum, single crown

Drivetrain

Component GroupMountain mix
ShiftersShimano Alivio
Front DerailleurShimano Alivio
Rear DerailleurShimano Alivio
CranksetTruvativ Hussefelt-Howitzer, 24/36 teeth
Bottom BracketTruVativ Howitzer
Rear Cogs8-speed, 11 - 32 teeth
ChainShimano CN-IG31
PedalsKona Jackshit

Brakes

BrakesHayes Hydraulic HFX-9 XC brakes, Hayes Hydraulic HFX-9 XC levers

Cockpit & Contact Points

HeadsetFSA w/Big Nut
HandlebarTruvativ Hussefelt Riser
Handlebar ExtensionsNot included
StemTruvativ Hussefelt
SaddleKona DJ
SeatpostTruvativ XR Double Clamp

Wheels & Tires

HubsFront: KK Disc (20mm Thu-Axle), Rear: Shimano FH-M475 disc
RimsSun Ditch Witch
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Front Tire26 x 2.30" Tioga Blue Dragon
Rear Tire26 x 2.10" Tioga Blue Dragon
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes36/24T · 11–32T · 8-speed
Lowest0.75:1 Highest3.27:1 Total range436%
Estimated speed At 90 RPM Lowest gear5.3 mph Highest gear23.0 mph

Rear tire: 26×2.1.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-IG31
Search Amazon Search eBay
Retailer offers
Front derailleur · Original
Shimano Alivio
Search eBay
Rear derailleur · Original
Shimano Alivio
Search eBay
More parts (2)Fewer parts
Shifters · Original
Shimano Alivio
Search eBay
Headset · Original
FSA w/Big Nut
Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 26 x 2.30" Tioga Blue Dragon, Rear: 26 x 2.10" Tioga Blue Dragon
Drivetrain
8-speed
Bottom bracket / shell
TruVativ Howitzer
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: Marzocchi Drop-Off 4, 100mm travel · Aluminum, single crown

Suspension

Evaluate the suspension →

Archived: Fork: Marzocchi Drop-Off 4, 100mm travel

Drivetrain

Check drivetrain wear →

Archived: Group: Mountain mix · Shifters: Shimano Alivio · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Alivio · Crankset: Truvativ Hussefelt-Howitzer, 24/36 teeth · Bottom bracket: TruVativ Howitzer · Rear cogs: 8-speed, 11 - 32 teeth · Chain: Shimano CN-IG31

Brakes

Inspect the brakes →

Archived: Brakes: Hayes Hydraulic HFX-9 XC brakes, Hayes Hydraulic HFX-9 XC levers

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 26" wheels · Rims: Sun Ditch Witch · Hubs: Front: KK Disc (20mm Thu-Axle), Rear: Shimano FH-M475 disc · Front tire: Front: 26 x 2.30" Tioga Blue Dragon, Rear: 26 x 2.10" Tioga Blue Dragon

Controls and contact points

Archived: Headset: FSA w/Big Nut · Handlebar: Truvativ Hussefelt Riser · Stem: Truvativ Hussefelt · Seatpost: Truvativ XR Double Clamp · Saddle: Kona DJ · Pedals: Kona Jackshit
