Velopedia Bicycle Archive

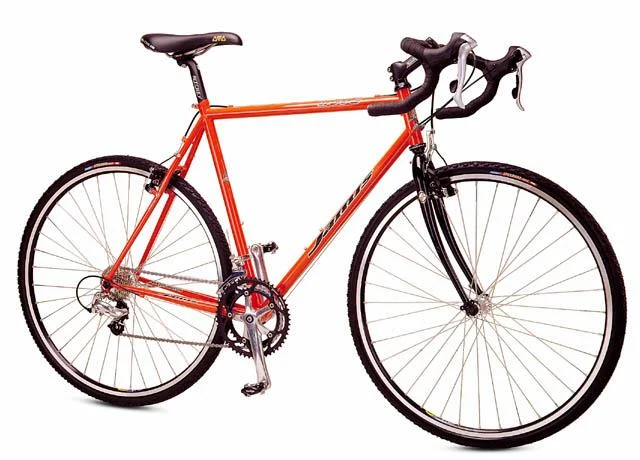

2001 Jamis Nova
Original specifications: Shimano Tiagra · 9-speed · mechanical rear derailleur · 700c wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #90582- Model year
- 2001
- Category
- Gravel & Cyclocross
- Original MSRP
- $900.00
- Sizes
- 47 (650c Wheel), 50, 53, 55, 57, 59, 62
- Colors
- Orange
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 7 other years
Browse other years
Compare side by side
Identification clues
2001 archived details
- Published colors
- Orange
- Frame
- Reynolds 631
- Original equipment
- Cross Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 631 · Cross Mix · 700c wheels
Frameset
| Frame Construction | Brazed/welded |
|---|---|
| Frame Material | Reynolds 631 |
| Fork | Spinner |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Cross Mix |
|---|---|
| Shifters | Shimano Tiagra STI Dual Control |
| Front Derailleur | Shimano Tiagra, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Tiagra SS |
| Crankset | Shimano Tiagra, 39/53 teeth |
| Bottom Bracket | Shimano BB-UN52, 110mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | Shimano CN-HG72, 1/2 x 3/32" |
| Pedals | Wellgo WPD-400 clipless |
Brakes
| Brakes | Avid Shorty 4 brakes, Shimano Tiagra STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1" threadless Aheadset SAS |
|---|---|
| Handlebar | Ritchey Biomax Pro |
| Stem | Ritchey Logic Road Comp |
| Saddle | Selle Italia Octavia Gel |
| Seatpost | Ritchey Comp, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano Tiagra |
|---|---|
| Rims | Mavic T221, 32-hole |
| Spokes | Sha-Dar stainless steel, 1.8mm double-butted |
| Spoke Nipples | Aluminum nipples |
| Front Tire | 700 x 32c Ritchey Speed Max Cross |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 560 mm |
| Head-tube angle | 73° |
| Seat-tube angle | 73.5° |
| Chainstay / rear center | 410 mm |
| Wheelbase | 995 mm |
| Fork offset / rake | 41.9 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 32c Ritchey Speed Max Cross
Retailer offers
Goodyear Eagle Tubeless Tire Black, 700x32
700x32c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Tan, 700x32
700x32c
Replacement option
Ritchey Comp
27.2mm diameter
Retailer offers
Ritchey Comp 2-Bolt Seatpost Black, 27.2x400mm
Model match
More parts (10)Fewer parts
Shimano BB-UN52
110mm spindle
Wellgo WPD-400 clipless
Selle Italia Octavia Gel
Shimano Tiagra
39/53 teeth
Shimano Tiagra SS
Shimano Tiagra STI Dual Control
Ritchey Biomax Pro
Ritchey Logic Road Comp
Mavic T221
32-hole
Shimano Tiagra
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 32c Ritchey Speed Max Cross
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-UN52, 110mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Brazed/welded · Fork: Spinner · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Cross Mix · Shifters: Shimano Tiagra STI Dual Control · Front derailleur: Shimano Tiagra, bottom-pull/clamp-on 28.6mm · Rear derailleur: Shimano Tiagra SS · Crankset: Shimano Tiagra, 39/53 teeth · Bottom bracket: Shimano BB-UN52, 110mm spindle · Rear cogs: 9-speed, 12 - 25 teeth · Chain: Shimano CN-HG72, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Shorty 4 brakes, Shimano Tiagra STI Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic T221, 32-hole · Hubs: Shimano Tiagra · Front tire: 700 x 32c Ritchey Speed Max Cross
Controls and contact points
Archived: Headset: 1" threadless Aheadset SAS · Handlebar: Ritchey Biomax Pro · Stem: Ritchey Logic Road Comp · Seatpost: Ritchey Comp, 27.2mm diameter · Saddle: Selle Italia Octavia Gel · Pedals: Wellgo WPD-400 clipless
