Velopedia Bicycle Archive

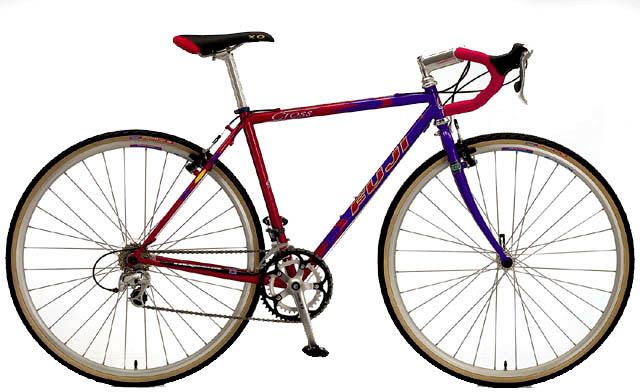

2001 Fuji Cross
Original specifications: Shimano 105 · 9-speed · mechanical rear derailleur · 700c wheels · 21.5 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #90765- Model year
- 2001
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,200.00
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Blue/Red
- Weight
- 21.5 lb
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2001 archived details
- Published colors
- Blue/Red
- Frame
- Columbus Genius
- Original equipment
- Cyclocross Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildColumbus Genius · Cyclocross Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Columbus Genius |
| Fork | Fuji Custom Cro-Moly Cyclocross |
| Fork Material | Chromoly, triple butted, aero crown |
Drivetrain
| Component Group | Cyclocross Mix |
|---|---|
| Shifters | Shimano 105 STI Dual Control |
| Front Derailleur | Shimano Deore LX, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano 105 SS |
| Crankset | Sugino XD-2 Forged, 36/48 teeth |
| Bottom Bracket | FSA, 103mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | KMC Z9000, 1/2 x 3/32" |
| Pedals | Time ATAC Alium |
Brakes
| Brakes | Avid Shorty 10C brakes, Shimano 105 STI front/Shimano 105 STI Dual Control rear levers |
|---|
Cockpit & Contact Points
| Headset | 1" threadless Ritchey Logic |
|---|---|
| Handlebar | Ritchey Logic Road Pro |
| Stem | Ritchey Logic Road Comp |
| Saddle | Selle Italia XO |
| Seatpost | Zoom Superlite, 27.2mm diameter |
Wheels & Tires
| Hubs | Ritchey Comp |
|---|---|
| Rims | Front: Ritchey Pro, Rear: Ritchey Zero Pro Road OCR, 32-hole |
| Spokes | Ritchey stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 32c Ritchey Speed Max Cross |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 560 mm |
| Head-tube angle | 72° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 430 mm |
| Wheelbase | 1020 mm |
| Fork offset / rake | 45 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 32c Ritchey Speed Max Cross
Retailer offers
Goodyear Eagle Tubeless Tire Black, 700x32
700x32c
Replacement option
Zoom Superlite
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (7)Fewer parts
Selle Italia XO
Shimano 105 SS
Shimano 105 STI Dual Control
Ritchey Logic Road Pro
Ritchey Logic Road Comp
1" threadless Ritchey Logic
Ritchey Comp
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 32c Ritchey Speed Max Cross
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- FSA, 103mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Fuji Custom Cro-Moly Cyclocross · Chromoly, triple butted, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Cyclocross Mix · Shifters: Shimano 105 STI Dual Control · Front derailleur: Shimano Deore LX, bottom-pull/clamp-on 28.6mm · Rear derailleur: Shimano 105 SS · Crankset: Sugino XD-2 Forged, 36/48 teeth · Bottom bracket: FSA, 103mm spindle · Rear cogs: 9-speed, 12 - 25 teeth · Chain: KMC Z9000, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Shorty 10C brakes, Shimano 105 STI front/Shimano 105 STI Dual Control rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Front: Ritchey Pro, Rear: Ritchey Zero Pro Road OCR, 32-hole · Hubs: Ritchey Comp · Front tire: 700 x 32c Ritchey Speed Max Cross
Controls and contact points
Archived: Headset: 1" threadless Ritchey Logic · Handlebar: Ritchey Logic Road Pro · Stem: Ritchey Logic Road Comp · Seatpost: Zoom Superlite, 27.2mm diameter · Saddle: Selle Italia XO · Pedals: Time ATAC Alium
