Lowest1.56:1
Highest4.42:1
Total range283%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×30; rear size isn’t listed.
Velopedia Bicycle Archive

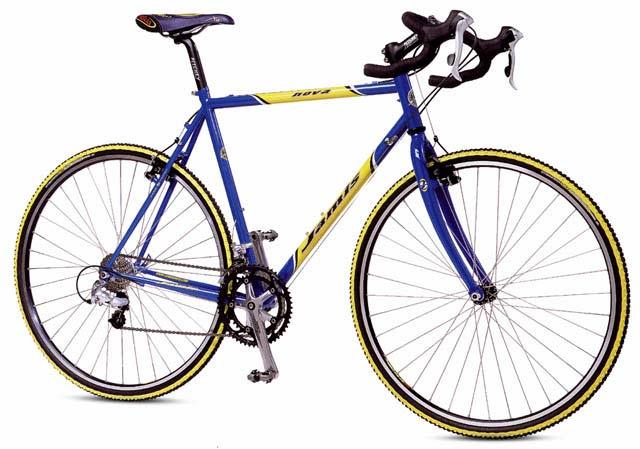

2002 Jamis Nova
Original specifications: Shimano Tiagra · 9-speed · mechanical rear derailleur · 700c wheels · 23 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #36921- Model year
- 2002
- Category
- Gravel & Cyclocross
- Original MSRP
- $939.95
- Sizes
- 47cm (26" wheel), 50cm, 53cm, 55cm, 57cm, 59cm, 62cm
- Colors
- Blue/Yellow
- Weight
- 23 lb
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 7 other years
Browse other years
Compare side by side
Identification clues
2002 archived details
- Published colors
- Blue/Yellow
- Frame
- Reynolds 631
- Original equipment
- Cyclocross Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 631 · Cyclocross Mix · 700c wheels
Frameset
| Frame Construction | Brazed/welded |
|---|---|
| Frame Material | Reynolds 631 |
| Fork | Kinesis Crosslight |
| Fork Material | Aluminum, unicrown crown |
Drivetrain
| Component Group | Cyclocross Mix |
|---|---|
| Shifters | Shimano Tiagra STI Dual Control |
| Front Derailleur | Shimano Tiagra, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Tiagra SS |
| Crankset | Shimano Tiagra, 39/53 teeth |
| Bottom Bracket | Shimano BB-UN52, 110mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | Shimano CN-HG72, 1/2 x 3/32" |
| Pedals | Ritchey Logic Comp |
Brakes
| Brakes | Avid Shorty 4 brakes, Shimano Tiagra STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Dia-Compe SAS |
|---|---|
| Handlebar | Ritchey Biomax Pro |
| Handlebar Extensions | Not included |
| Stem | Ritchey Logic Comp |
| Saddle | Selle Italia XO |
| Seatpost | Ritchey Pro, 27.2mm diameter |
Wheels & Tires
| Hubs | Ritchey Pro Road |
|---|---|
| Rims | Mavic MA3, 36-hole |
| Spokes | Stainless steel, 14/15 ga. (2.0/1.8mm) double-butted |
| Front Tire | 700 x 30c Hutchinson ProSeries Gold |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 560 mm |
| Head-tube angle | 73° |
| Seat-tube angle | 73.5° |
| Chainstay / rear center | 410 mm |
| Wheelbase | 995 mm |
| Fork offset / rake | 41.9 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 30c Hutchinson ProSeries Gold
Retailer offers
Vittoria Zaffiro Pro V Clincher Tire Black, 700x30
700x30c
Replacement option
Other replacement options (1)
Challenge Strada Bianca Pro Tubeless Tire Tan, 700x30
700x30c
Replacement option
Hutchinson ProSeries Gold on eBaySponsored links
Ritchey Pro
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (10)Fewer parts
Shimano BB-UN52
110mm spindle
Ritchey Logic Comp
Selle Italia XO
Shimano Tiagra
39/53 teeth
Shimano Tiagra SS
Shimano Tiagra STI Dual Control
Ritchey Biomax Pro
Ritchey Logic Comp
Mavic MA3
36-hole
Ritchey Pro Road
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 30c Hutchinson ProSeries Gold
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-UN52, 110mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Brazed/welded · Fork: Kinesis Crosslight · Aluminum, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Cyclocross Mix · Shifters: Shimano Tiagra STI Dual Control · Front derailleur: Shimano Tiagra, bottom-pull/clamp-on 28.6mm · Rear derailleur: Shimano Tiagra SS · Crankset: Shimano Tiagra, 39/53 teeth · Bottom bracket: Shimano BB-UN52, 110mm spindle · Rear cogs: 9-speed, 12 - 25 teeth · Chain: Shimano CN-HG72, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Shorty 4 brakes, Shimano Tiagra STI Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic MA3, 36-hole · Hubs: Ritchey Pro Road · Front tire: 700 x 30c Hutchinson ProSeries Gold
Controls and contact points
Archived: Headset: 1 1/8" threadless Dia-Compe SAS · Handlebar: Ritchey Biomax Pro · Stem: Ritchey Logic Comp · Seatpost: Ritchey Pro, 27.2mm diameter · Saddle: Selle Italia XO · Pedals: Ritchey Logic Comp
