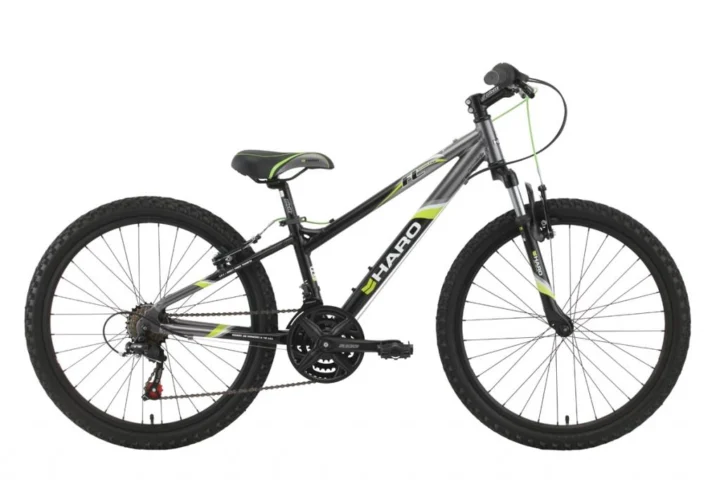

2012 Haro Flightline 24

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #4013671
Model year
2012
Category
Mountain
Sizes
12"
Colors
SG Charcoal/SG Black, White/Bluebell, White/Race Red
In this record
18 specifications · 15 archived images
Model history 5 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors

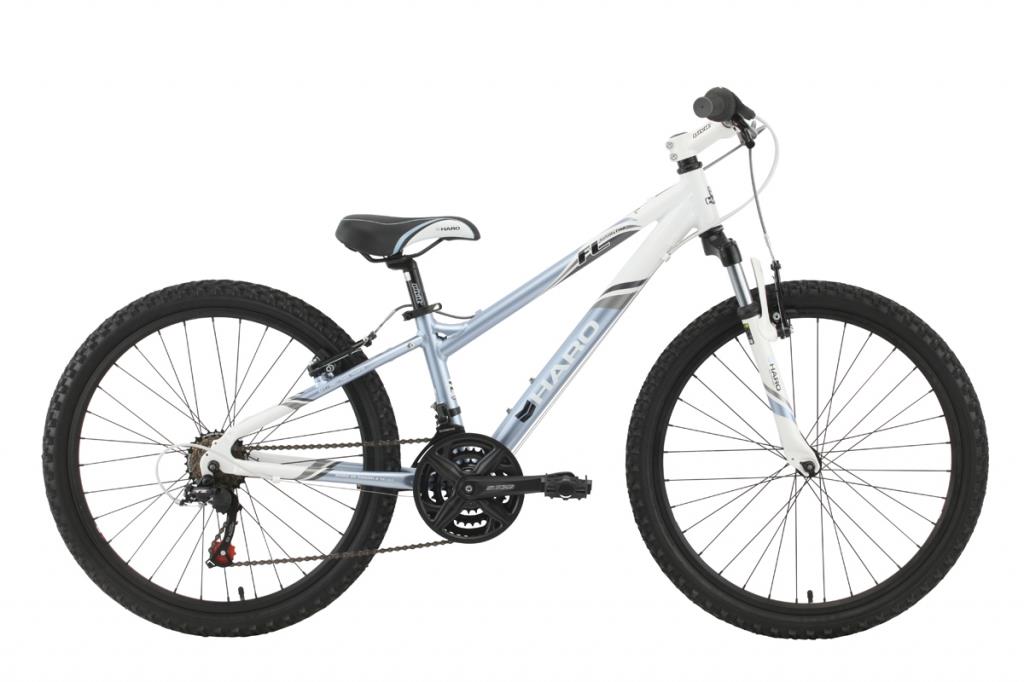

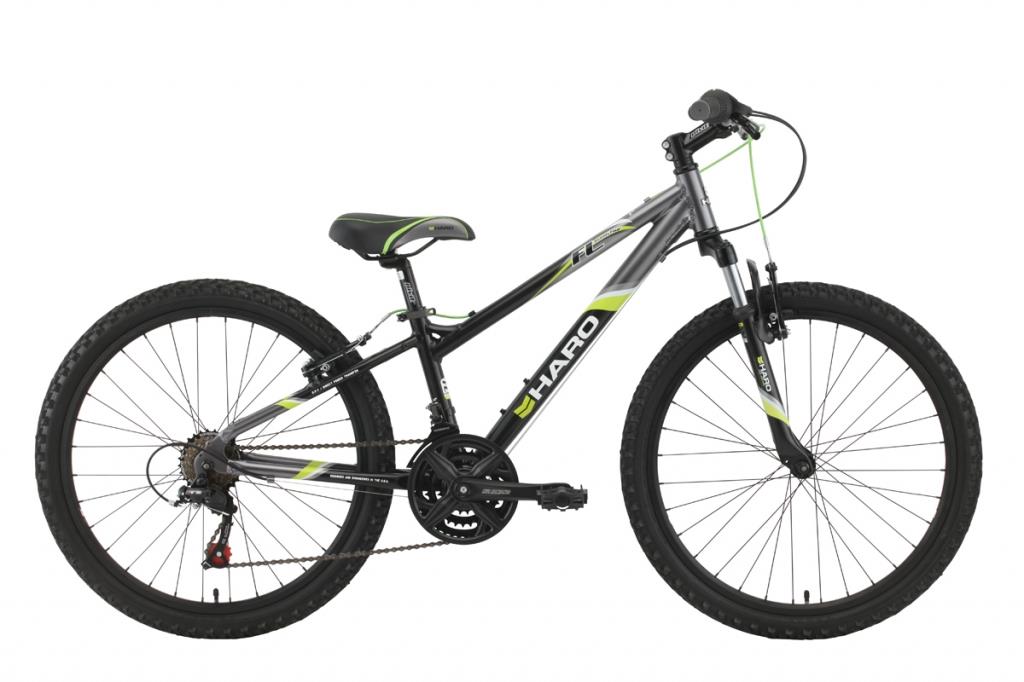

SG Charcoal/SG Black, White/Bluebell, White/Race Red
Frame
6061 T-6 Alloy

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061 T-6 Alloy

Manufacturer catalog

Published sizes and colors

1 size · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

12"

Published colors

SG Charcoal/SG BlackWhite/BluebellWhite/Race Red

Frameset

Frame Material6061 T-6 Alloy
ForkHaro 410-E 40mm

Drivetrain

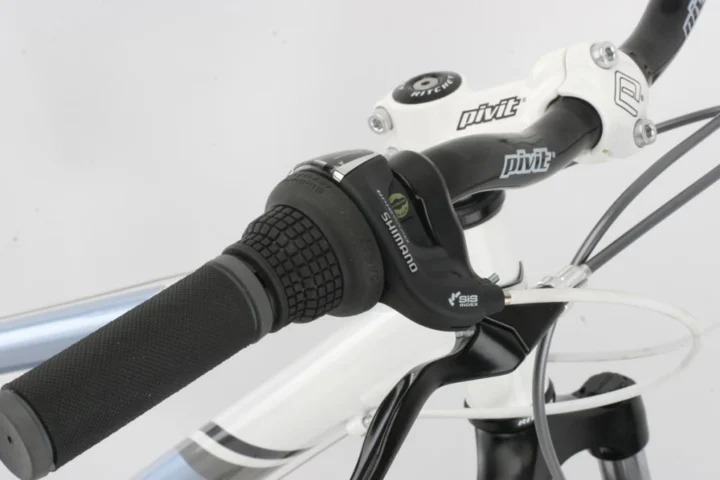

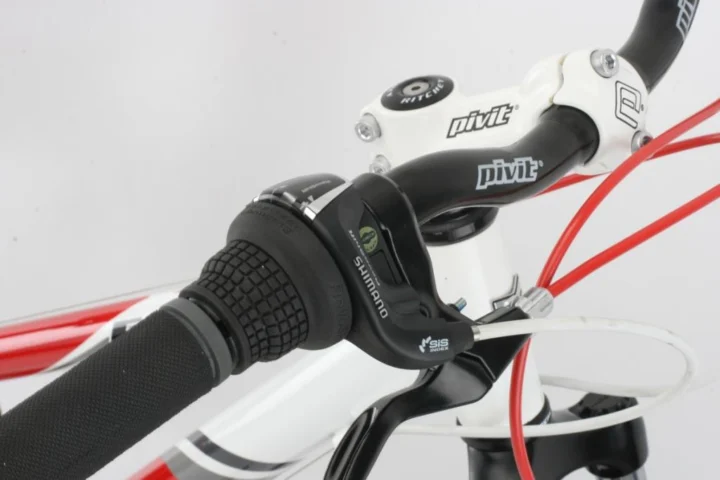

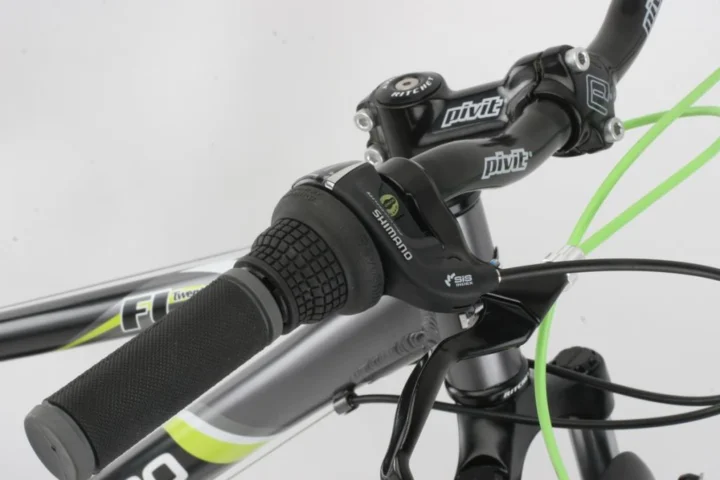

ShiftersShimano Revo 6spd twist
Front DerailleurShimano TZ-30

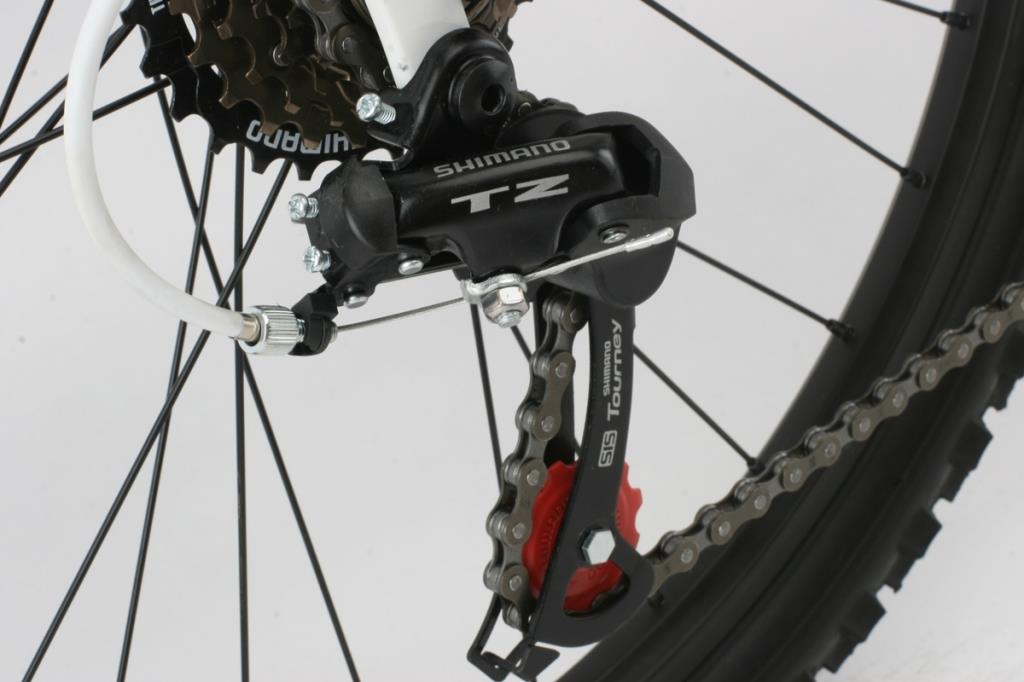

Rear DerailleurShimano TZ-50
CranksetSR Suntour XR 172 22/32/42t
Bottom Bracketsealed cartridge
CassetteShimano TZ-20 14-28t
ChainKMC Z33
PedalsNylon ATB

Brakes

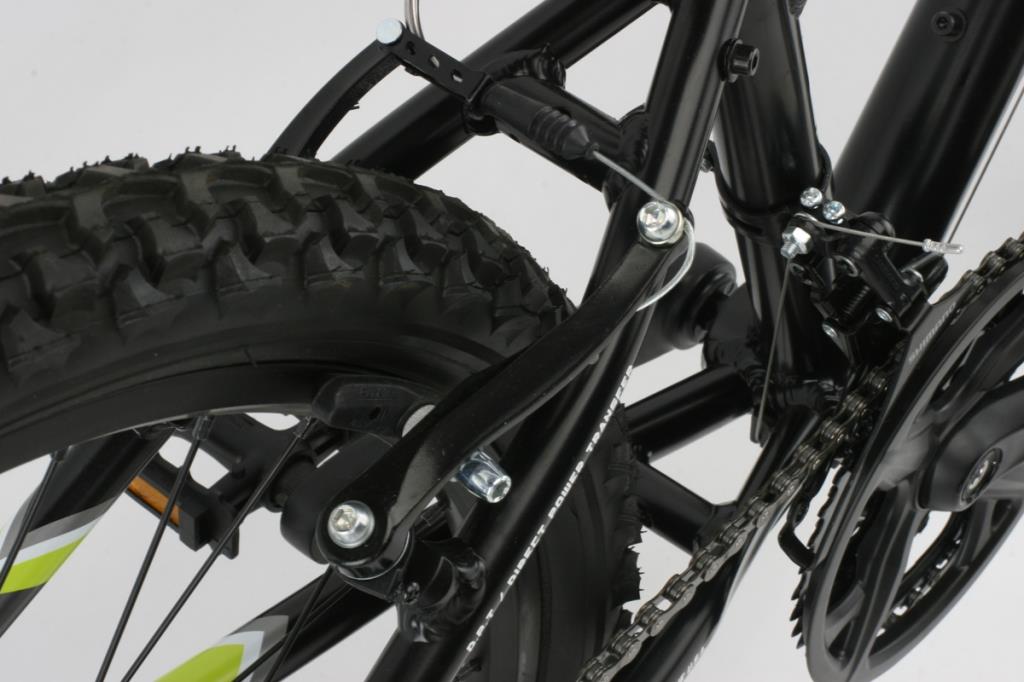

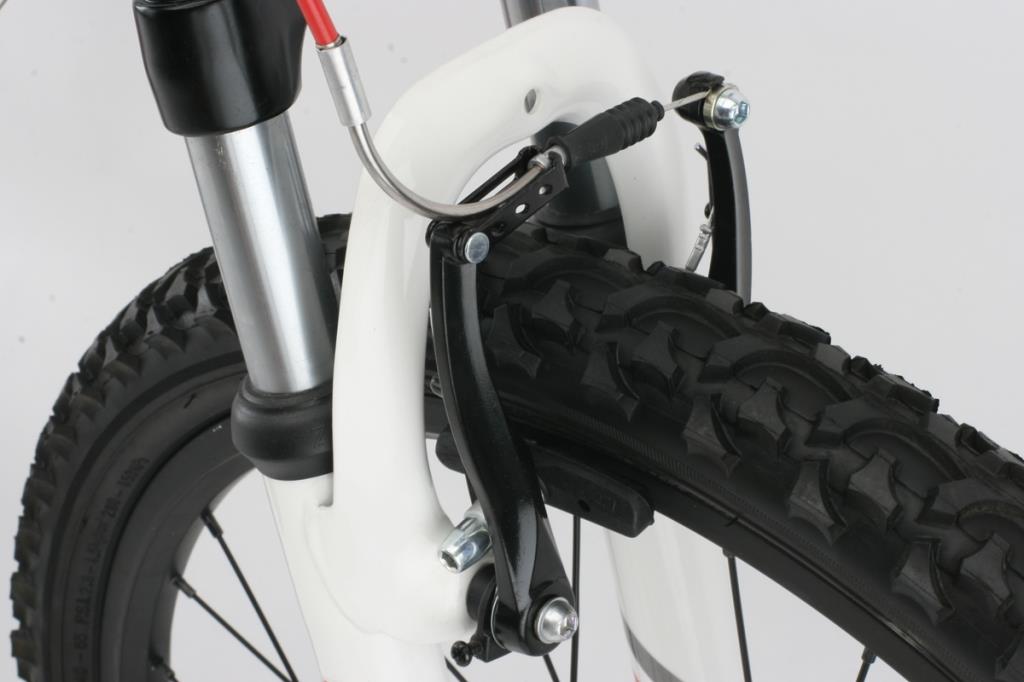

BrakesAlloy linear pull

Cockpit & Contact Points

HeadsetRitchey Logic LB

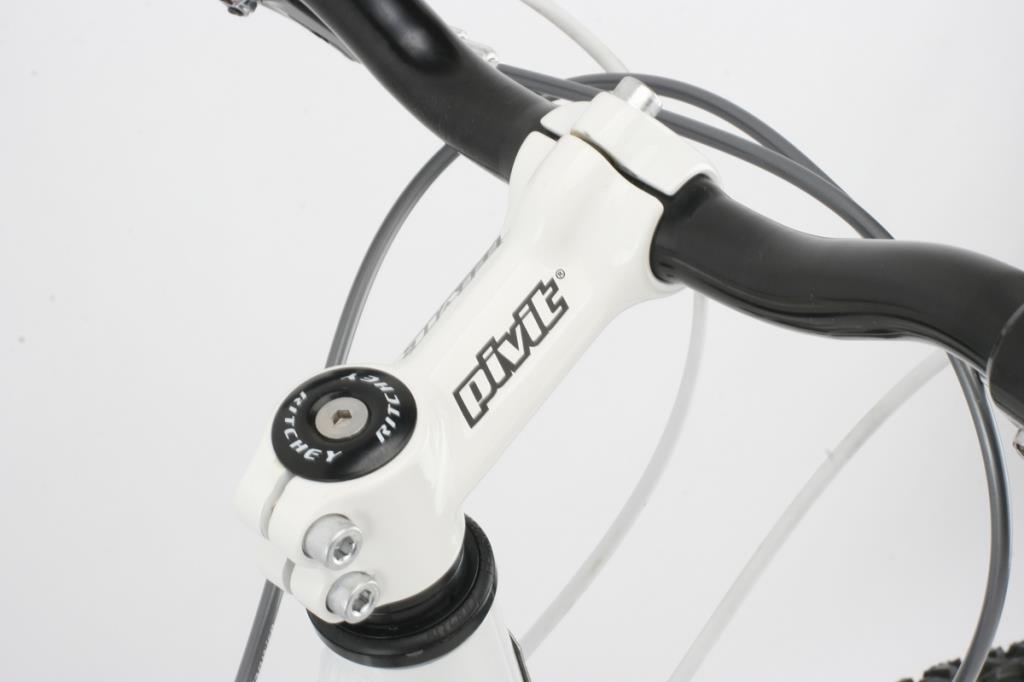

HandlebarPivit riser bar
StemPivit alloy

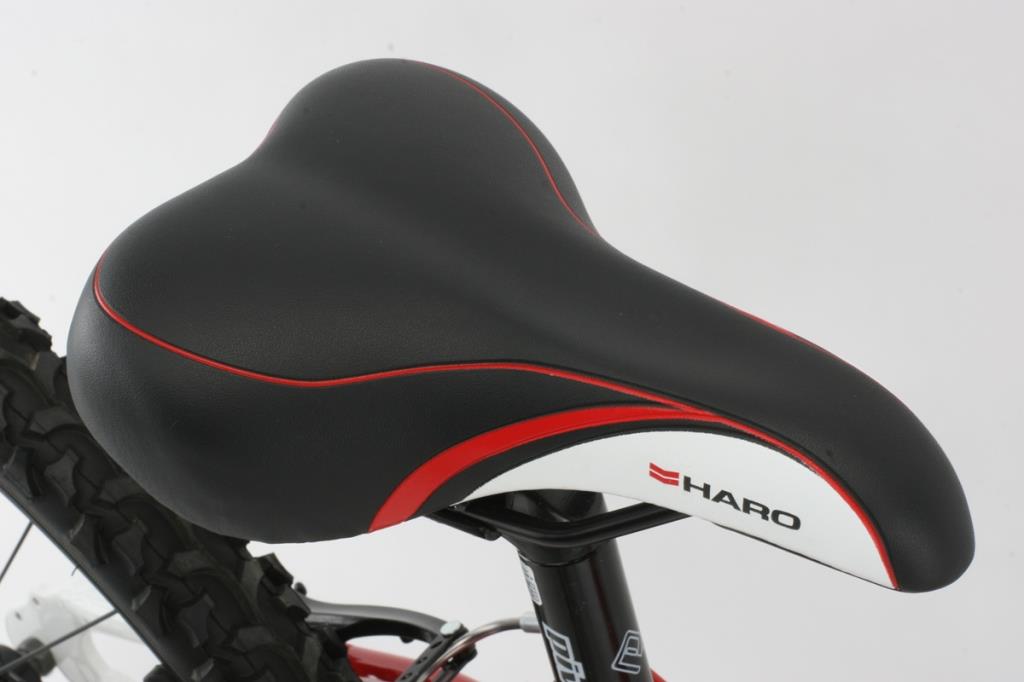

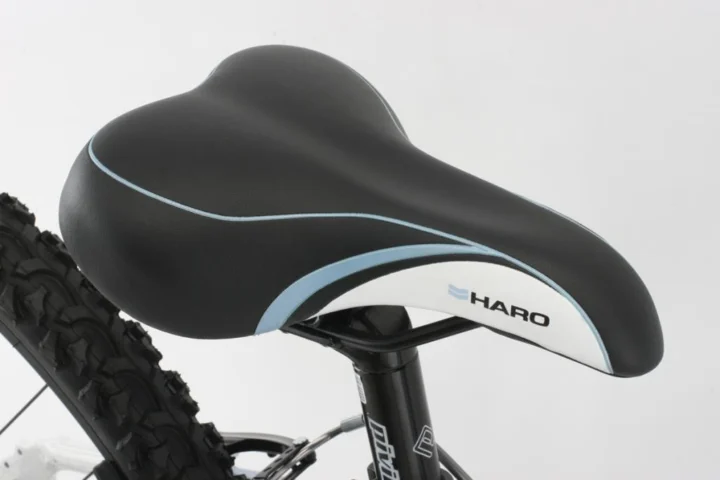

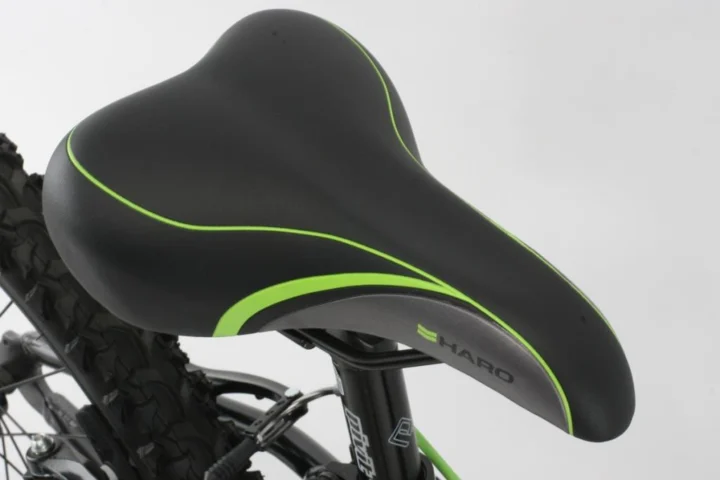

SaddleHaro Junior
SeatpostPivit alloy 27.2mm

Wheels & Tires

RimsDH 18
Front TireKenda 831A 24 X 2.1"

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/32/22T · 14–28T · 6-speed
Lowest0.79:1 Highest3.00:1 Total range382%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC Z33
Front tire · Original
Kenda 831A 24 X 2.1"
More parts (3)Fewer parts
Cassette · Original
Shimano TZ-20 14-28t
Brake pads · Original
Alloy linear pull
Headset · Original
Ritchey Logic LB

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda 831A 24 X 2.1"
Drivetrain
6-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
sealed cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: 6061 T-6 Alloy · Fork: Haro 410-E 40mm

Archived: Shifters: Shimano Revo 6spd twist · Front derailleur: Shimano TZ-30 · Rear derailleur: Shimano TZ-50 · Crankset: SR Suntour XR 172 22/32/42t · Bottom bracket: sealed cartridge · Cassette: Shimano TZ-20 14-28t · Chain: KMC Z33

Archived: Brakes: Alloy linear pull

Archived: Rims: DH 18 · Front tire: Kenda 831A 24 X 2.1"

Controls and contact points

Archived: Headset: Ritchey Logic LB · Handlebar: Pivit riser bar · Stem: Pivit alloy · Seatpost: Pivit alloy 27.2mm · Saddle: Haro Junior · Pedals: Nylon ATB
