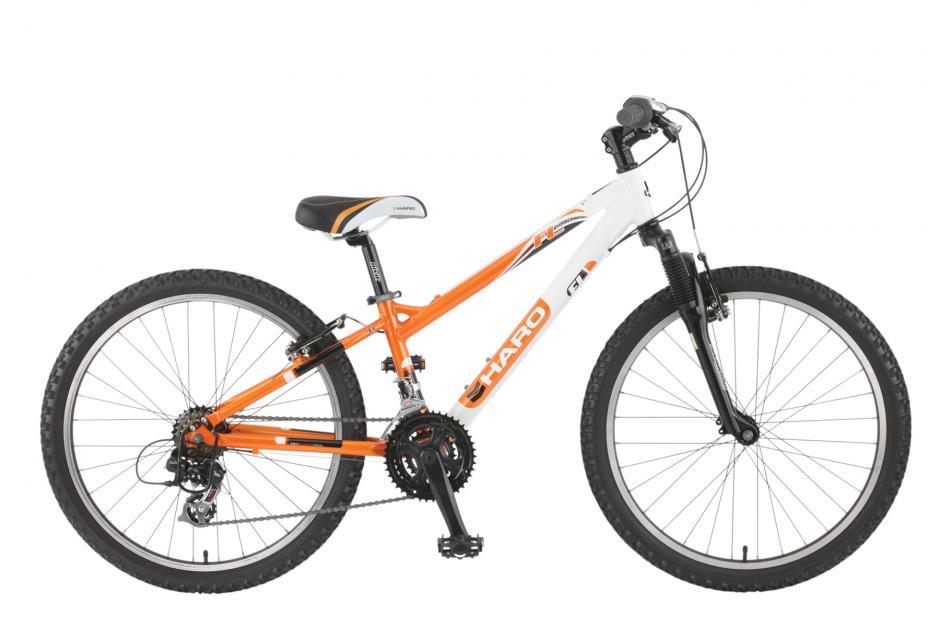

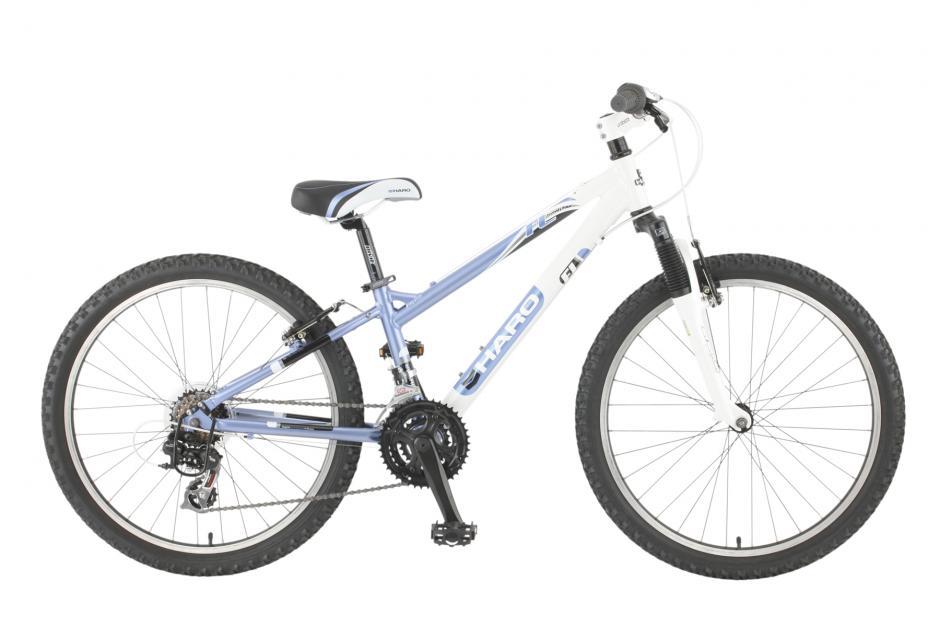

2011 Haro Flightline 24

Original specifications: Mountain Mix drivetrain.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22239
Model year
2011
Category
Mountain
Sizes
12"
Colors
Gloss Black, Pumpkin, Bluebell
In this record
24 specifications · 15 archived images

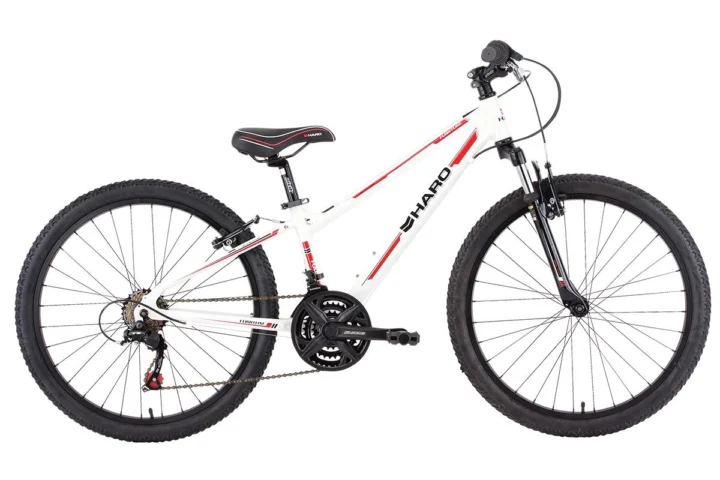

Model history 5 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Gloss Black, Pumpkin, Bluebell
Frame
Flightline 6061 T6 Alloy
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildFlightline 6061 T6 Alloy · Mountain Mix

Historical catalog variants

Archived sizes and colors

3 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

12"

Published colors

Gloss BlackPumpkinBluebell
View 3 archived size/color combinations
SizeColor
12"Gloss Black
12"Pumpkin
12"Bluebell

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

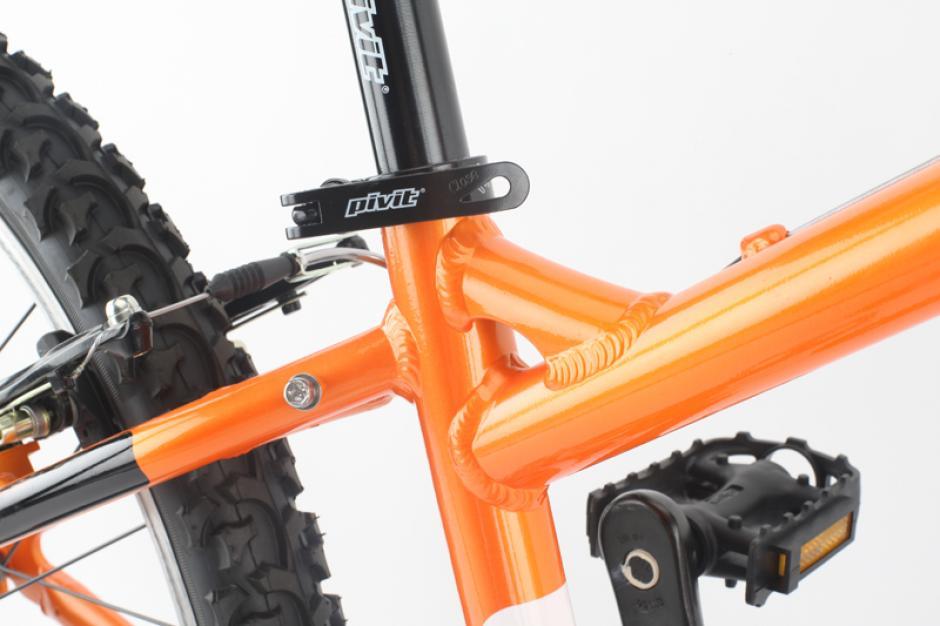

Frame ConstructionTIG-welded

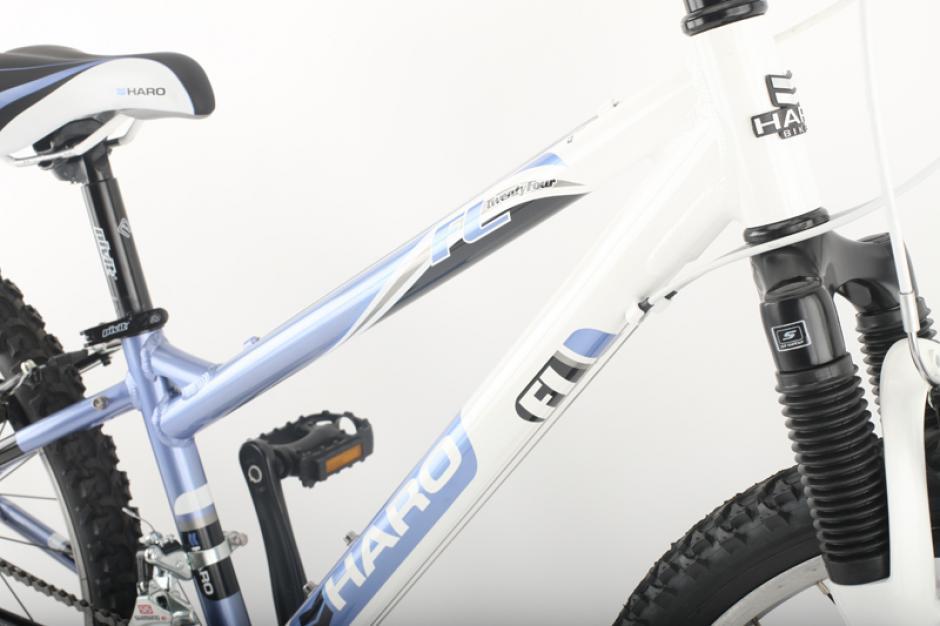

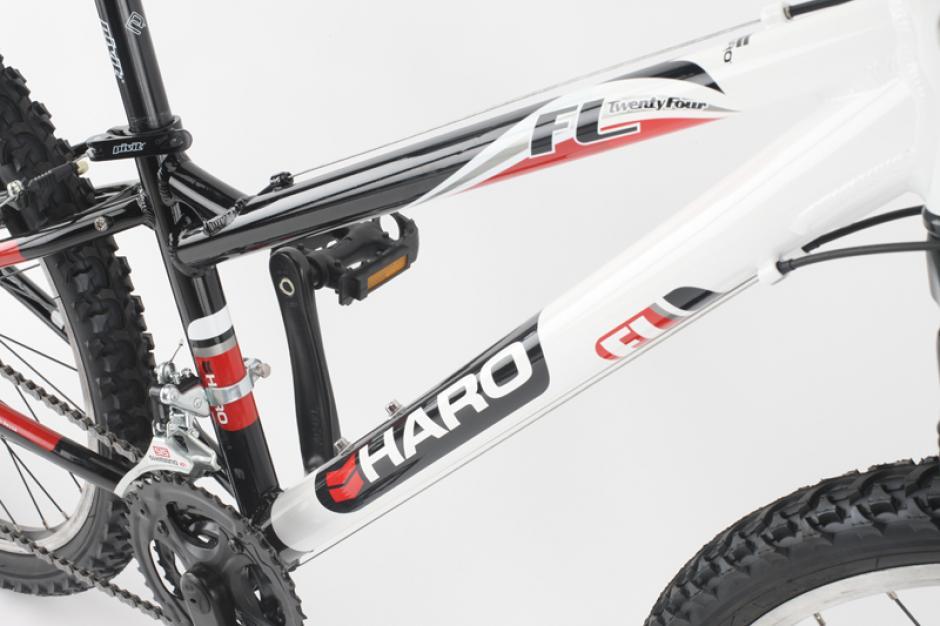

Frame MaterialFlightline 6061 T6 Alloy

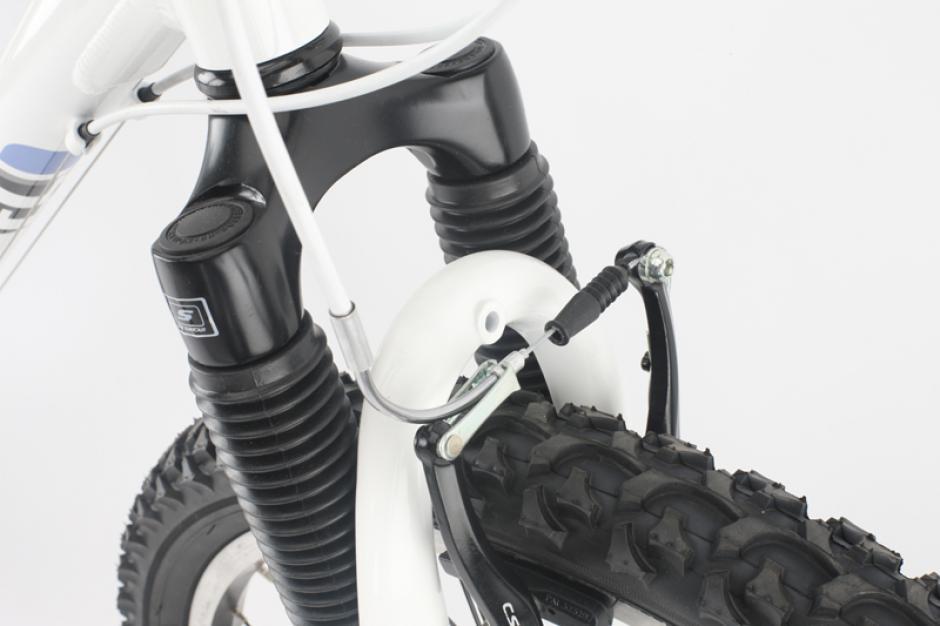

ForkSR Suntour M3000AL, 50mm travel
Fork MaterialSingle

Drivetrain

Component GroupMountain Mix
Front DerailleurShimano Tourney

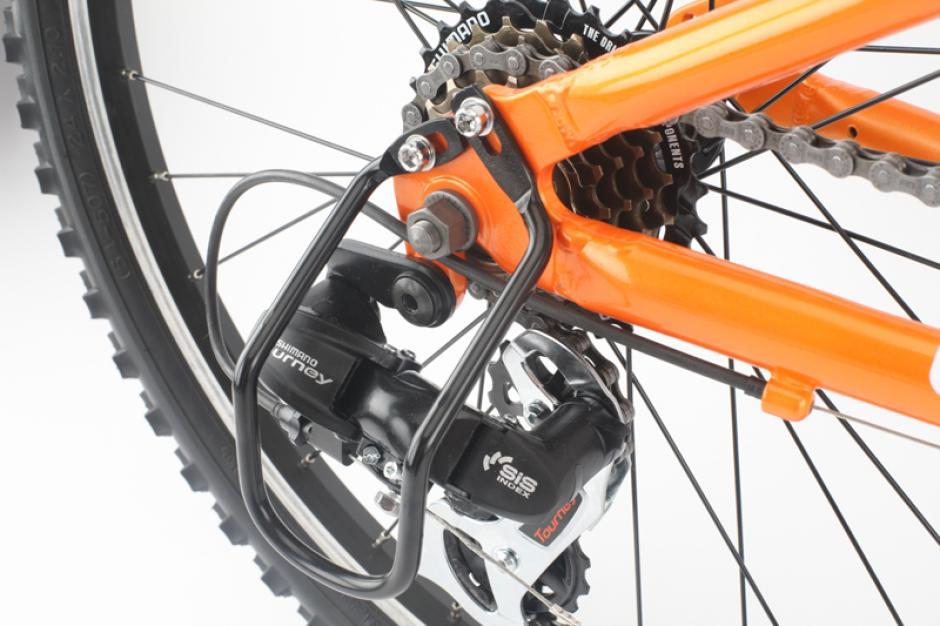

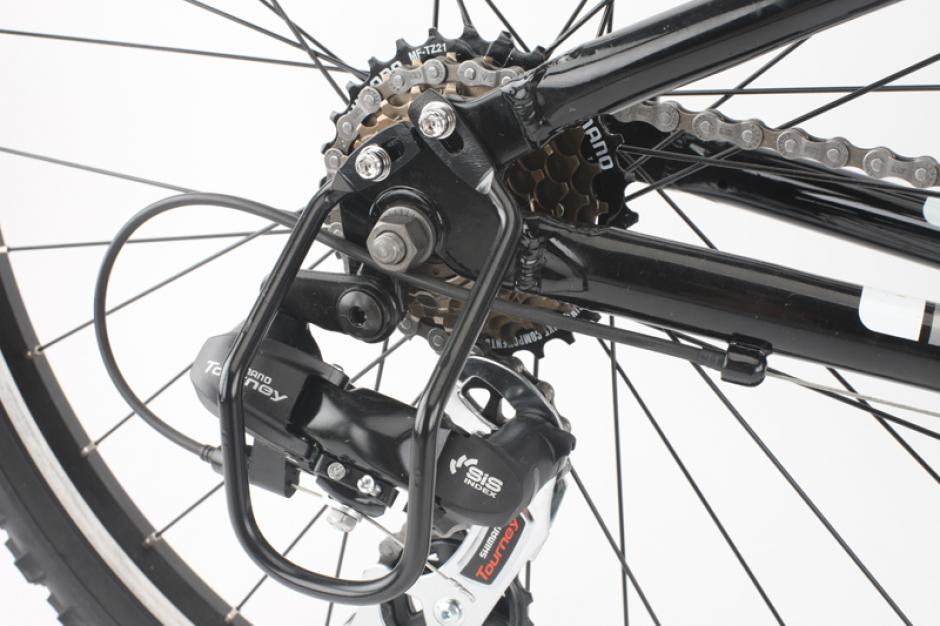

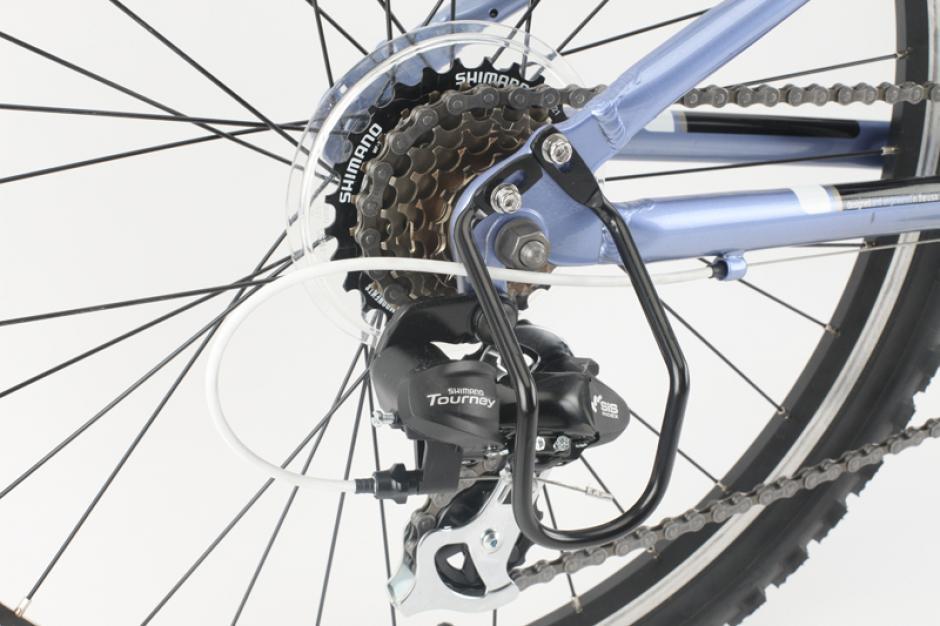

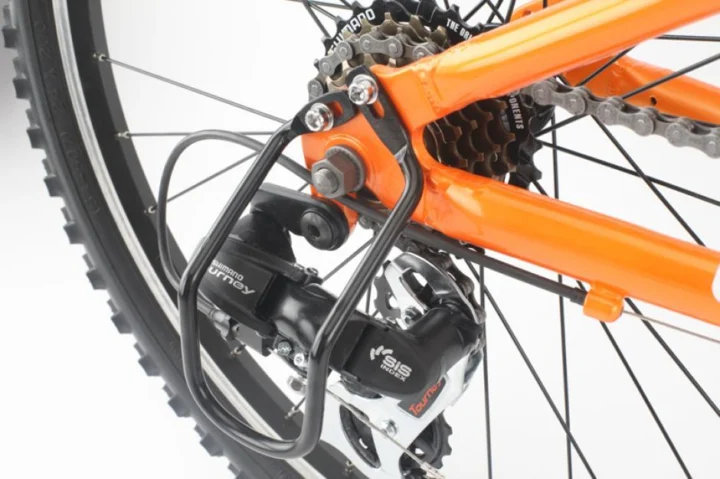

Rear DerailleurShimano Tourey

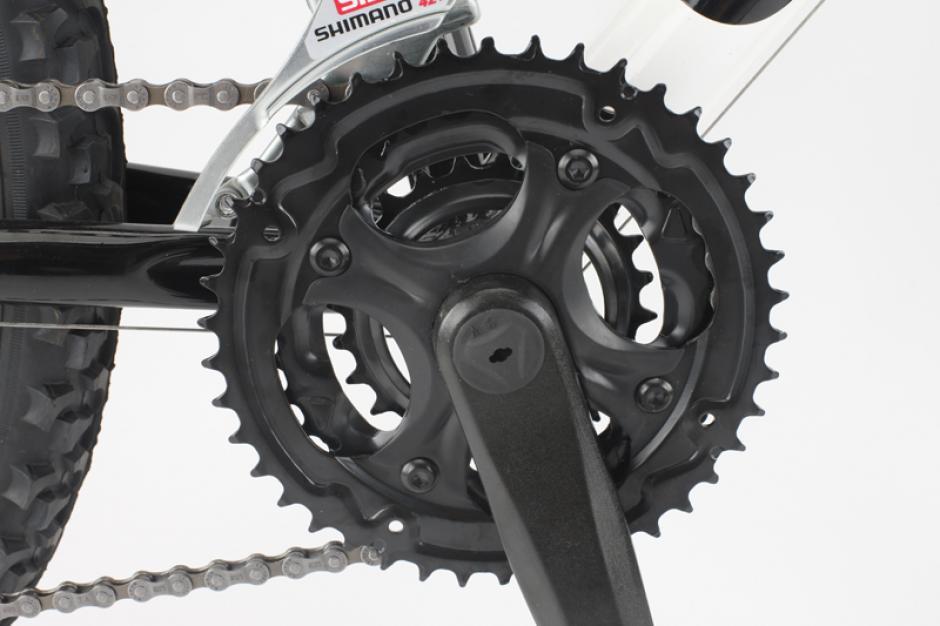

CranksetForged Alloy, 24/34/42 teeth
Bottom BracketSealed
CassetteShimano
Rear Cogs7-speed, 14 - 28 teeth
ChainShimano UG-51
PedalsNylon ATB

Brakes

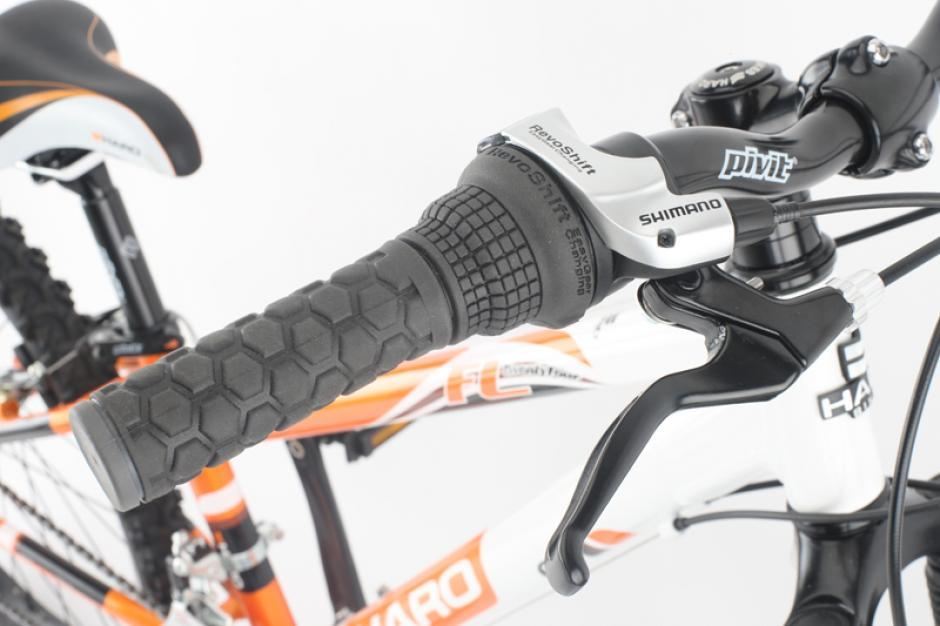

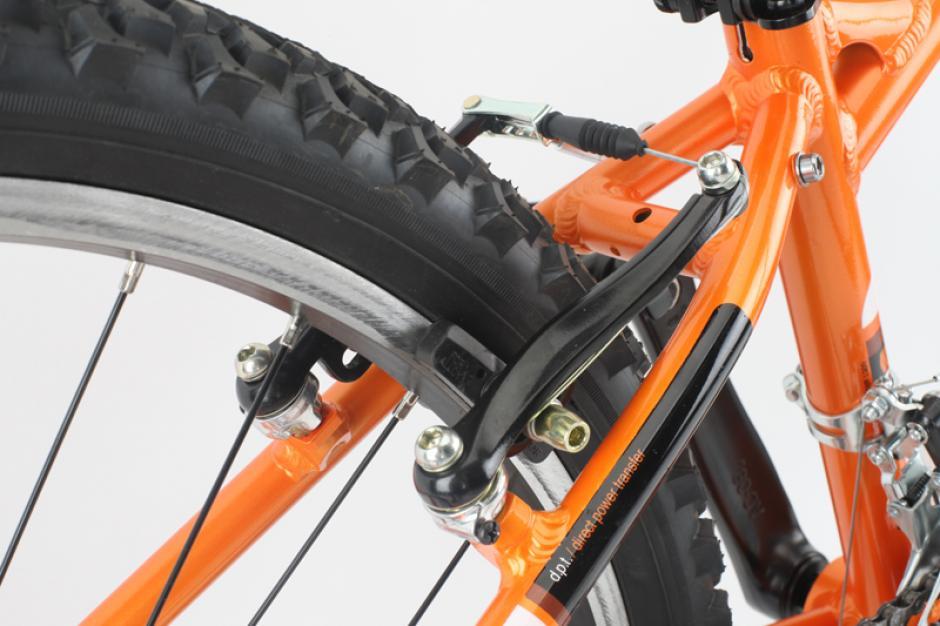

BrakesPromax direct pull brakes, Promax V-Brake levers

Cockpit & Contact Points

HeadsetAheadset OS
HandlebarPivit Riser Bar
Handlebar ExtensionsNot included

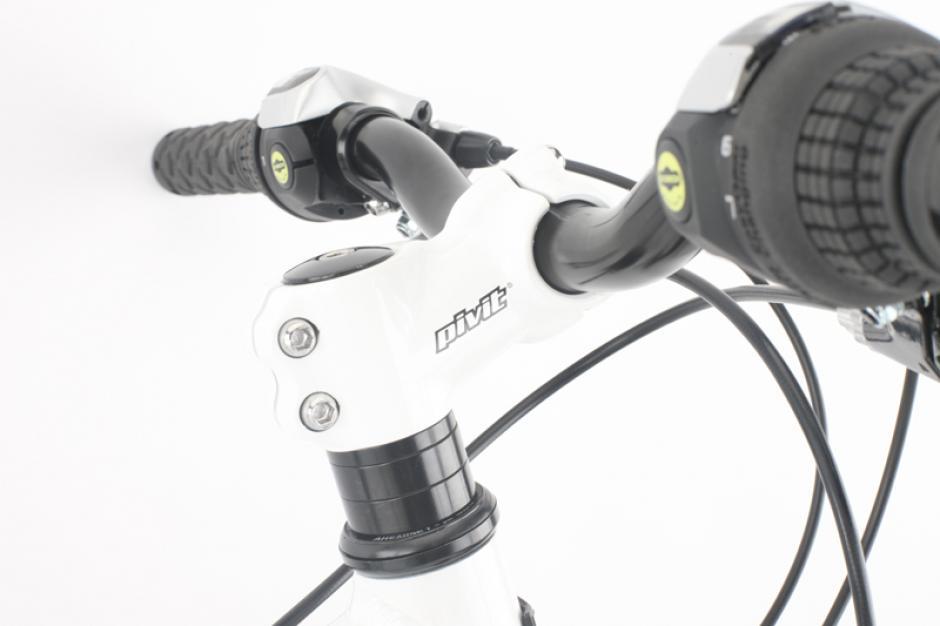

StemPivit Alloy

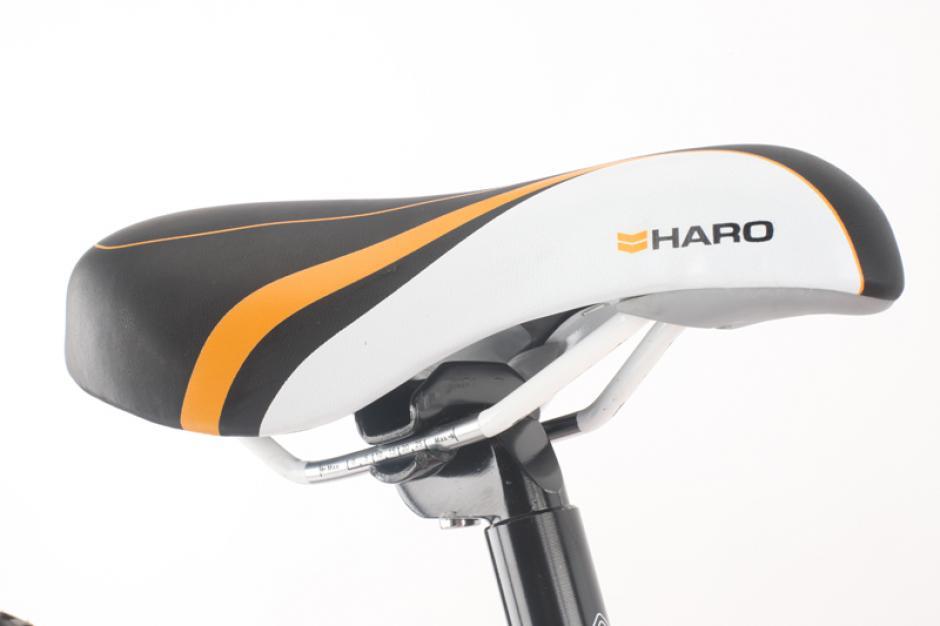

SaddleHaro Junior
SeatpostPivit Alloy, 27.2mm diameter

Wheels & Tires

HubsPivit Alloy
RimsWeinmann CN-520, 32-hole
SpokesStainless, 14ga. (2.0mm) butted
Front TireKenda 831A 2.1

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/34/24T · 14–28T · 7-speed
Lowest0.86:1 Highest3.00:1 Total range350%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano UG-51
Front derailleur · Original
Shimano Tourney

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda 831A 2.1
Drivetrain
7-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Sealed
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: SR Suntour M3000AL, 50mm travel · Single

Archived: Fork: SR Suntour M3000AL, 50mm travel

Archived: Group: Mountain Mix · Front derailleur: Shimano Tourney · Rear derailleur: Shimano Tourey · Crankset: Forged Alloy, 24/34/42 teeth · Bottom bracket: Sealed · Cassette: Shimano · Rear cogs: 7-speed, 14 - 28 teeth · Chain: Shimano UG-51

Archived: Brakes: Promax direct pull brakes, Promax V-Brake levers

Archived: Rims: Weinmann CN-520, 32-hole · Hubs: Pivit Alloy · Front tire: Kenda 831A 2.1

Controls and contact points

Archived: Headset: Aheadset OS · Handlebar: Pivit Riser Bar · Stem: Pivit Alloy · Seatpost: Pivit Alloy, 27.2mm diameter · Saddle: Haro Junior · Pedals: Nylon ATB
