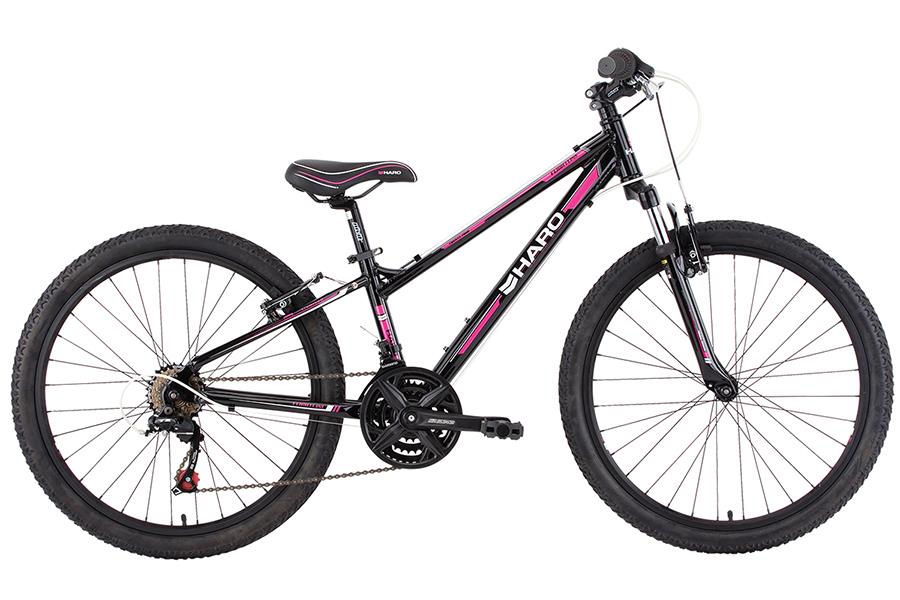

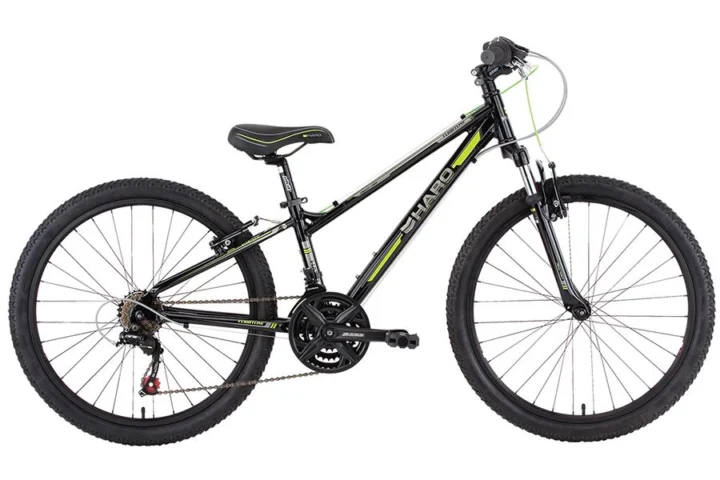

2013 Haro Flightline 24

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #9213018
Model year
2013
Category
Mountain
Sizes
24"
Colors
Black/Purple, Black/Yellow, White
In this record
18 specifications · 3 archived images
Model history 5 other years

Browse other years

Compare side by side

Identification clues

2013 archived details

Published colors
Black/Purple, Black/Yellow, White
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum

Manufacturer catalog

Published sizes and colors

1 size · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

24"

Published colors

Black/PurpleBlack/YellowWhite

Frameset

Frame MaterialAluminum
ForkHaro 410-E 40mm

Drivetrain

ShiftersShimano Revo
Front DerailleurShimano
Rear DerailleurShimano Tourney
CranksetSR Suntour XCC 42/34/24t
Bottom BracketSealed Cartridge
CassetteShimano 14x28t
Rear Cogs3x6 Speeds
ChainKMC Z33
Pedalsnylon platform

Brakes

BrakesLinear Pull

Cockpit & Contact Points

Headset1 1/8" Threadless
HandlebarAlloy Riser Bar
StemAlloy
SaddleHaro Junior
SeatpostAlloy Micro Adjust

Wheels & Tires

Front TireH-5120 24x1.95

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/34/24T · 14–28T
Lowest0.86:1 Highest3.00:1 Total range350%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC Z33
Cassette · Original
Shimano 14x28t
Front tire · Original
H-5120 24x1.95 Replacement search: 24x1.95 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (2)Fewer parts
Brake pads · Original
Linear Pull
Rear derailleur · Original
Shimano Tourney

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
H-5120 24x1.95
Bottom bracket / shell
Sealed Cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Aluminum · Fork: Haro 410-E 40mm

Archived: Fork: Haro 410-E 40mm

Archived: Shifters: Shimano Revo · Front derailleur: Shimano · Rear derailleur: Shimano Tourney · Crankset: SR Suntour XCC 42/34/24t · Bottom bracket: Sealed Cartridge · Cassette: Shimano 14x28t · Rear cogs: 3x6 Speeds · Chain: KMC Z33

Archived: Brakes: Linear Pull

Controls and contact points

Archived: Headset: 1 1/8" Threadless · Handlebar: Alloy Riser Bar · Stem: Alloy · Seatpost: Alloy Micro Adjust · Saddle: Haro Junior · Pedals: nylon platform
