Velopedia Bicycle Archive
At a glance
Archive #2026760- Model year
- 2012
- Category
- Mountain
- Sizes
- 16", 18", 20"
- Colors
- SG Charcoal/SG Black
- In this record
- 18 specifications · 8 archived images
Original build6061 Alloy
Frameset
| Frame Material | 6061 Alloy |
|---|---|

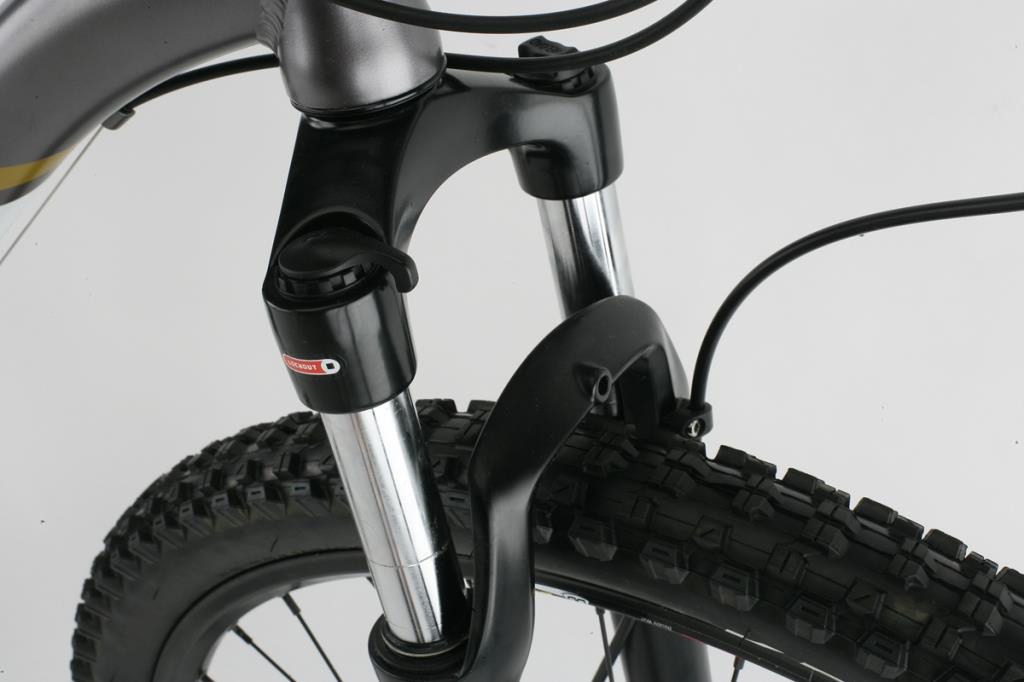

| Fork | SR Suntour XCT 80mm |
Drivetrain

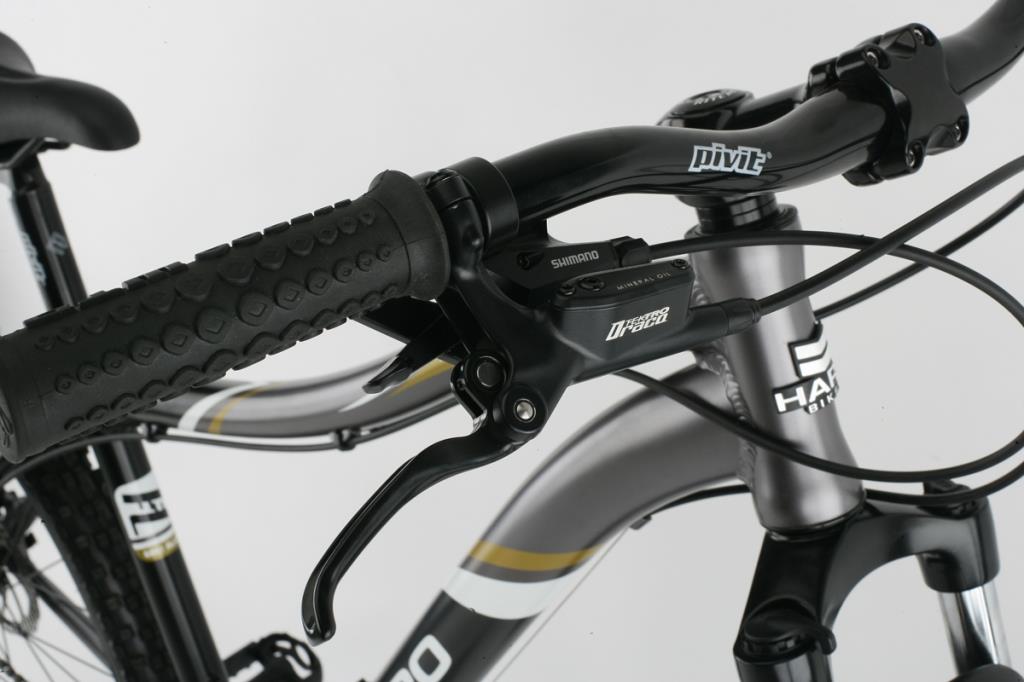

| Shifters | Shimano Altus |
|---|---|
| Front Derailleur | Shimano Altus |

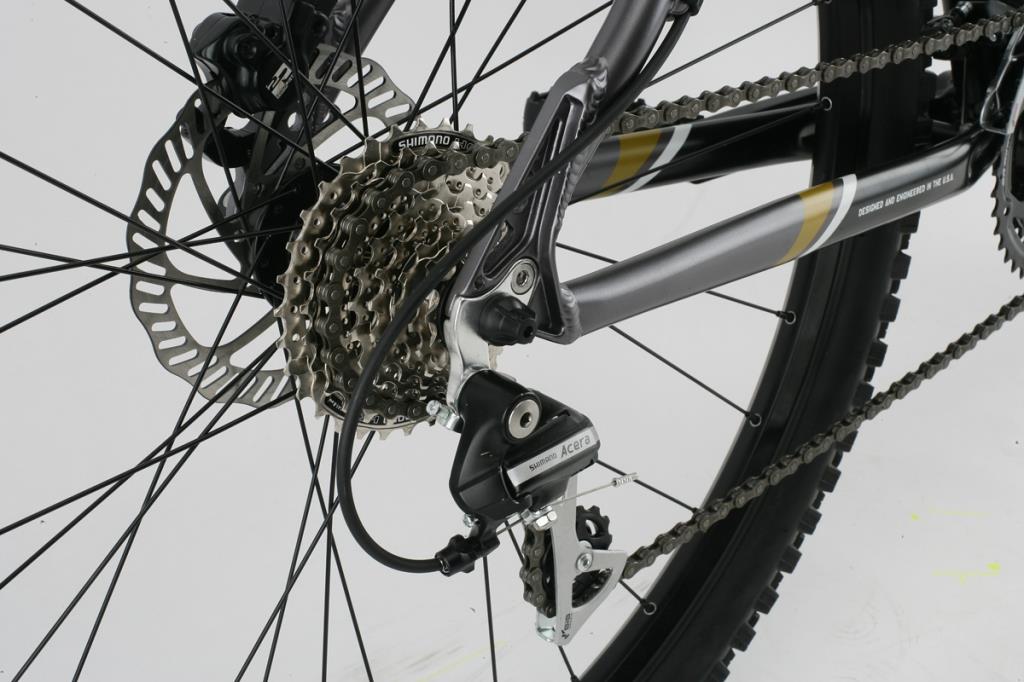

| Rear Derailleur | Shimano Acera 8spd |

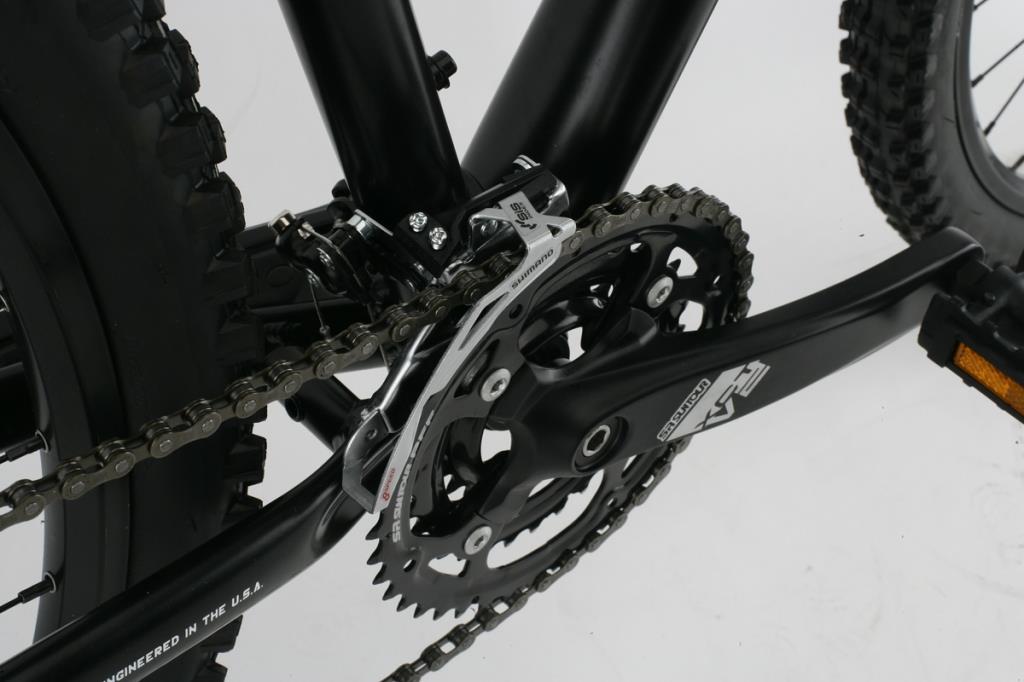

| Crankset | SR Suntour XCT 22/32/42t |
| Bottom Bracket | sealed cartridge |
| Cassette | Shimano HG-41 11-32 |
| Chain | KMC HG-50 |
| Pedals | Nylon ATB |
Brakes

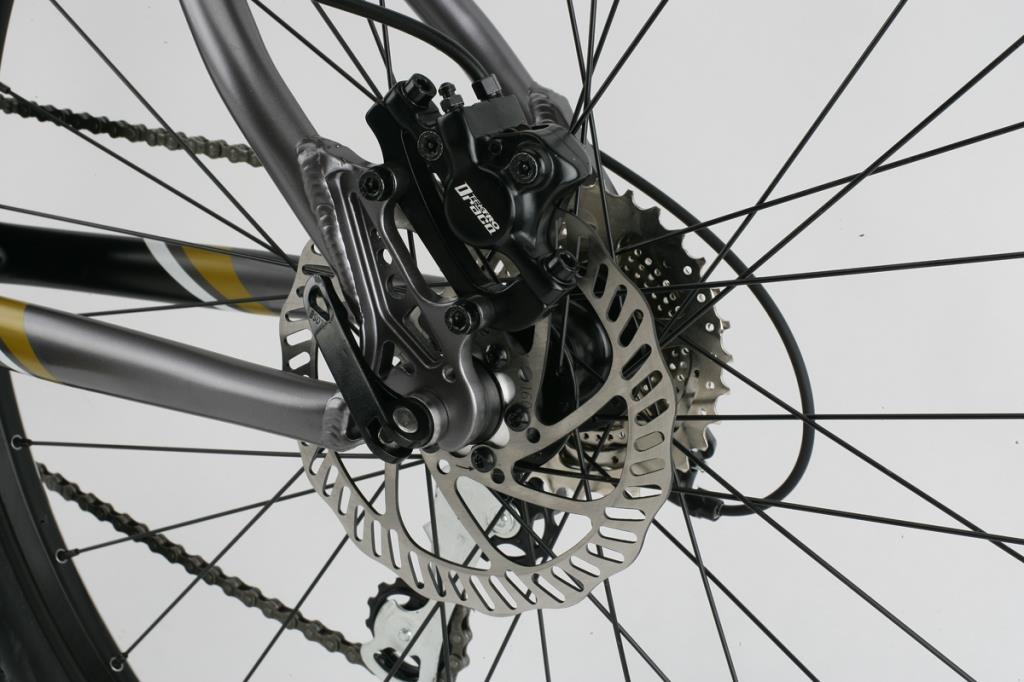

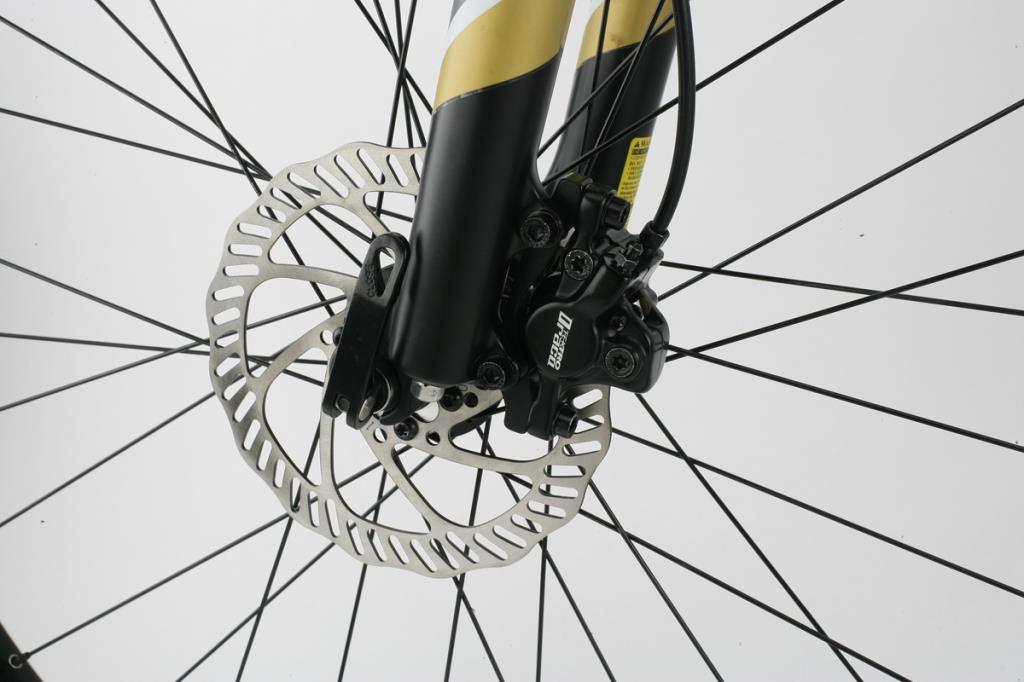

| Brakes | Tektro Drako 6" |
|---|
Cockpit & Contact Points
| Headset | Ritchey Zero Press Fit |
|---|---|
| Handlebar | Pivit riser bar |
| Stem | Pivit alloy |
| Saddle | WTB Rocket V Comp |
| Seatpost | Pivit Alloy 30.9 |
Wheels & Tires
| Rims | Weinmann XM280 |
|---|---|
| Front Tire | Kenda Nevegal 29 X 2.2" |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
More parts (4)Fewer parts
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Kenda Nevegal 29 X 2.2"
- Drivetrain
- 8-speed
- Bottom bracket / shell
- sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: 6061 Alloy · Fork: SR Suntour XCT 80mm
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour XCT 80mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Altus · Front derailleur: Shimano Altus · Rear derailleur: Shimano Acera 8spd · Crankset: SR Suntour XCT 22/32/42t · Bottom bracket: sealed cartridge · Cassette: Shimano HG-41 11-32 · Chain: KMC HG-50
Brakes
Inspect the brakes →Archived: Brakes: Tektro Drako 6"
Wheels and tires
Check wheels and tires →Archived: Rims: Weinmann XM280 · Front tire: Kenda Nevegal 29 X 2.2"
Controls and contact points
Archived: Headset: Ritchey Zero Press Fit · Handlebar: Pivit riser bar · Stem: Pivit alloy · Seatpost: Pivit Alloy 30.9 · Saddle: WTB Rocket V Comp · Pedals: Nylon ATB
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery8 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
