2026 Giant Revolt 2
Original manufacturer specifications including geometry for 12 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,500.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors

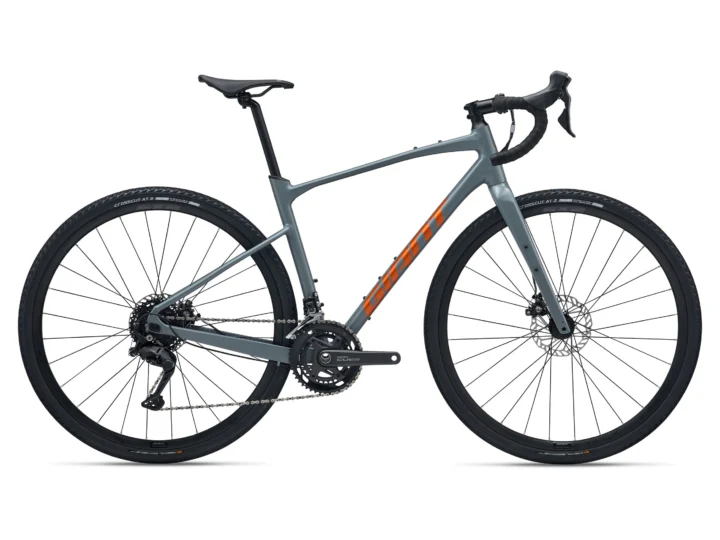

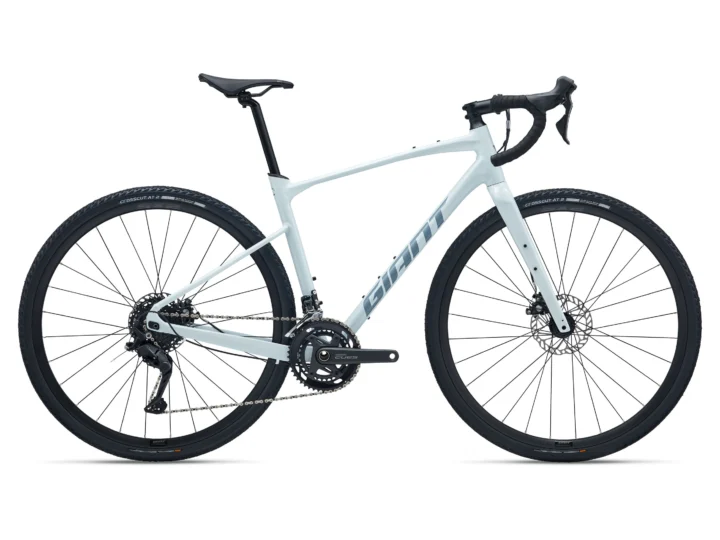

- Ocean Storm, Icicle White
- Geometry
- 12 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001278
Model history 2 other years
Frameset
| Frame Construction | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|---|---|
| Frame Material | Aluminum |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano CUES U3030, 2x9 or Shimano Sora, 2x9* |
|---|---|
| Front Derailleur | Shimano CUES U6030 or Shimano Sora* |
| Rear Derailleur | Shimano CUES U4020 or Shimano Sora, long cage* |
| Crankset | Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, threaded |
| Cassette | Shimano CS-LG300, 11x36 |
| Chain | KMC X11 |
Brakes
| Brakes | Shimano BR-RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
|---|---|
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Saddle | Giant Grit |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
Wheels & Tires
| Hubs | Giant alloy, 12mm thru-axle |
|---|---|
| Rims | Giant S-X2, alloy |
| Spokes | stainless |
| Front Tire | CrossCut GRIP 1; 700x45c |
| Rear Tire | CrossCut GRIP 1; 700x45c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS · Low | XS · High | S · Low | S · High | M · Low | M · High | ML · Low | ML · High | L · Low | L · High | XL · Low | XL · High |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seat tube | 430 mm | 430 mm | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm |
| Top tube | 540 mm | 540 mm | 550 mm | 550 mm | 560 mm | 560 mm | 575 mm | 575 mm | 585 mm | 585 mm | 600 mm | 600 mm |
| Head tube | 125 mm | 125 mm | 135 mm | 135 mm | 150 mm | 150 mm | 165 mm | 165 mm | 180 mm | 180 mm | 195 mm | 195 mm |
| Head-tube angle | 70° | 70° | 71° | 71° | 71.5° | 71.5° | 72° | 72° | 72° | 72° | 72° | 72° |
| Seat-tube angle | 74° | 74° | 73.5° | 73.5° | 73.5° | 73.5° | 73° | 73° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 430 mm | 440 mm | 430 mm | 440 mm | 430 mm | 440 mm | 430 mm | 440 mm | 430 mm | 440 mm | 430 mm | 440 mm |
| Wheelbase | 1029 mm | 1039 mm | 1025 mm | 1035 mm | 1030 mm | 1040 mm | 1035 mm | 1045 mm | 1045 mm | 1055 mm | 1061 mm | 1071 mm |
| Bottom-bracket drop | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm |
| Reach | 381 mm | 381 mm | 381 mm | 381 mm | 387 mm | 387 mm | 391 mm | 391 mm | 397 mm | 397 mm | 407 mm | 407 mm |
| Stack | 556 mm | 556 mm | 570 mm | 570 mm | 586 mm | 586 mm | 602 mm | 602 mm | 616 mm | 616 mm | 630 mm | 630 mm |
| Standover height | 717 mm | 724 mm | 734 mm | 741 mm | 752 mm | 759 mm | 769 mm | 776 mm | 786 mm | 793 mm | 801 mm | 810 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 82 mm | 72 mm | 75 mm | 68 mm | 72 mm | 65 mm | 68 mm | 65 mm | 68 mm | 65 mm | 68 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 50 mm | 50 mm | 60 mm | 60 mm | 70 mm | 70 mm | 80 mm | 80 mm | 80 mm | 80 mm | 90 mm | 90 mm |
| Handlebar width | 420 mm | 420 mm | 420 mm | 420 mm | 440 mm | 440 mm | 440 mm | 440 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheel size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
Geometry source: Giant first-party size/configuration geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
XS geometry
Configuration
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its reach of 381 mm sits toward the longer end. Its stack of 556 mm sits somewhat taller than typical.
Compared with 33 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS · Low geometry Archive context: Its bottom-bracket drop of 81 mm sits toward the deeper-drop end. Its trail of 82 mm sits toward the higher-trail end. The chainstay of 440 mm sits toward the longer rear-center end.
Compared with 33 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS · High geometry S geometry
Configuration
Archive context: The seat angle of 73.5° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its stack of 570 mm sits toward the taller end.
Compared with 80 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · Low geometry Archive context: Its bottom-bracket drop of 81 mm sits toward the deeper-drop end. The seat angle of 73.5° sits toward the more relaxed end. Its trail of 75 mm sits toward the higher-trail end.
Compared with 80 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · High geometry M geometry
Configuration
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 71.5° sits somewhat steeper than typical. The seat angle of 73.5° sits somewhat more relaxed than typical.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · Low geometry Archive context: Its bottom-bracket drop of 81 mm sits toward the deeper-drop end. Its trail of 72 mm sits toward the higher-trail end. The chainstay of 440 mm sits toward the longer rear-center end.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · High geometry ML geometry
Configuration
Archive context: The head angle of 72° sits toward the steeper end. The seat angle of 73° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze ML · Low geometry Archive context: Its bottom-bracket drop of 81 mm sits toward the deeper-drop end. The head angle of 72° sits toward the steeper end. The seat angle of 73° sits toward the more relaxed end.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze ML · High geometry L geometry
Configuration
Archive context: The head angle of 72° sits toward the steeper end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The seat angle of 73° sits somewhat more relaxed than typical.
Compared with 65 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · Low geometry Archive context: Its bottom-bracket drop of 81 mm sits toward the deeper-drop end. The head angle of 72° sits toward the steeper end. Its trail of 68 mm sits toward the higher-trail end.
Compared with 65 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · High geometry XL geometry
Configuration
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 72° sits toward the steeper end. Its wheelbase of 1061 mm sits somewhat shorter than typical.
Compared with 71 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · Low geometry Archive context: Its bottom-bracket drop of 81 mm sits toward the deeper-drop end. The head angle of 72° sits toward the steeper end. Its trail of 68 mm sits toward the higher-trail end.
Compared with 71 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · High geometry Parts & serviceability
Find replacement parts
KMC X11
Exact archived model
Shimano CS-LG300, 11x36
Exact archived model
Shimano BR-RS305 mechanical
Brake model identified — verify pad shape
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Giant Revolt 2 · Cyclocross/Gravel · Published sizes: XS, S, M, M/L, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout · Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES U3030, 2x9 or Shimano Sora, 2x9* · Front derailleur: Shimano CUES U6030 or Shimano Sora* · Rear derailleur: Shimano CUES U4020 or Shimano Sora, long cage* · Crankset: Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm · Bottom bracket: Shimano, threaded · Cassette: Shimano CS-LG300, 11x36 · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant S-X2, alloy · Hubs: Giant alloy, 12mm thru-axle · Front tire: CrossCut GRIP 1; 700x45c · Rear tire: CrossCut GRIP 1; 700x45c
Controls and contact points
Archived: Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm · Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm · Seatpost: Giant D-Fuse, alloy, 14mm offset · Saddle: Giant Grit
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
