2025 Giant Revolt 2
Original manufacturer specifications including geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,400.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors
- Asphalt Green, Storm Cloud
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900001192
Model history 2 other years
Frameset
| Frame Construction | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|---|---|
| Frame Material | Aluminum |

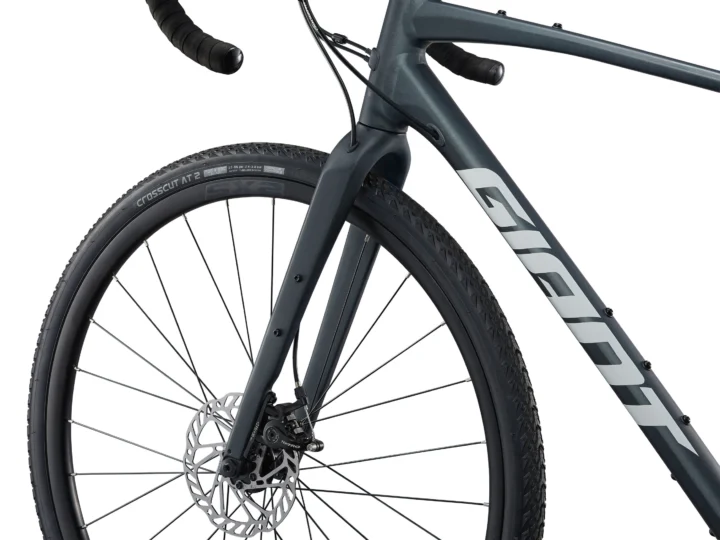

| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Fork Material | Carbon Fiber |

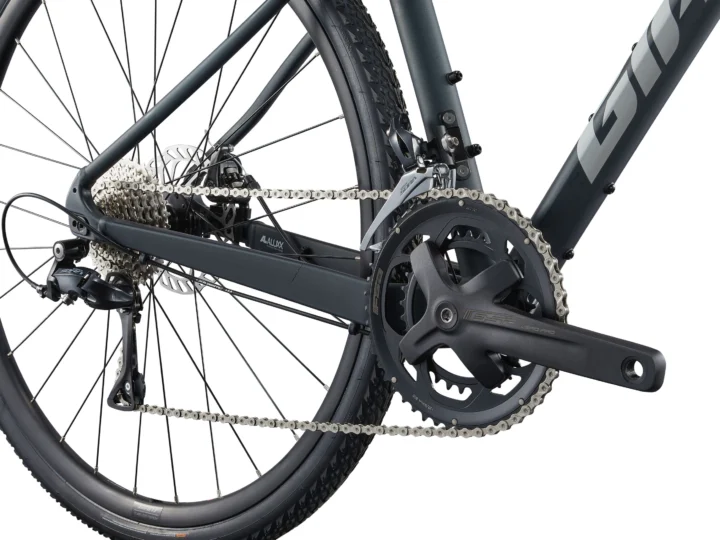

Drivetrain
| Shifters | Shimano Sora, 2x9 |
|---|---|
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora, long cage |
| Crankset | FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | cartridge |
| Cassette | Shimano HG400, 11x34 |
| Chain | KMC X9 with Missing Link |
Brakes
| Brakes | Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
|---|---|
| Stem | Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Saddle | Giant Approach |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
Wheels & Tires
| Hubs | Giant alloy, 12mm thru-axle |
|---|---|
| Rims | Giant S-X2 Disc wheelset, alloy |
| Spokes | stainless |
| Front Tire | Giant CrossCut AT 2, 700x38c, tubeless |
| Rear Tire | Giant CrossCut AT 2, 700x38c, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS · LOW | HIGH | S · LOW | HIGH | M · LOW | HIGH | ML · LOW | HIGH | L · LOW | HIGH | XL · LOW | HIGH |
|---|---|---|---|---|---|---|
| Seat tube | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Top tube | 540 mm | 550 mm | 560 mm | 575 mm | 585 mm | 600 mm |
| Head tube | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Head-tube angle | 70° | 71° | 71.5° | 72° | 72° | 72° |
| Seat-tube angle | 74° | 73.5° | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1029 mm | 1025 mm | 1030 mm | 1035 mm | 1045 mm | 1061 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach | 381 mm | 381 mm | 387 mm | 391 mm | 397 mm | 407 mm |
| Stack | 556 mm | 570 mm | 586 mm | 602 mm | 616 mm | 630 mm |
| Standover height | 717 mm | 734 mm | 752 mm | 769 mm | 786 mm | 801 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 72 mm | 68 mm | 65 mm | 65 mm | 65 mm |
| Crank length | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 50 mm | 60 mm | 70 mm | 80 mm | 80 mm | 90 mm |
| Handlebar width | 420 mm | 420 mm | 440 mm | 440 mm | 460 mm | 460 mm |
| Wheel size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
LOW · HIGH
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its reach of 381 mm sits toward the longer end. Its stack of 556 mm sits somewhat taller than typical.
Compared with 34 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS · LOW · HIGH geometry S geometry
LOW · HIGH
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The seat angle of 73.5° sits toward the more relaxed end. The head angle of 71° sits somewhat steeper than typical.
Compared with 88 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · LOW · HIGH geometry M geometry
LOW · HIGH
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 71.5° sits somewhat steeper than typical. The seat angle of 73.5° sits somewhat more relaxed than typical.
Compared with 99 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · LOW · HIGH geometry ML geometry
LOW · HIGH
Archive context: The head angle of 72° sits toward the steeper end. The seat angle of 73° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end.
Compared with 99 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze ML · LOW · HIGH geometry L geometry
LOW · HIGH
Archive context: The head angle of 72° sits toward the steeper end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The seat angle of 73° sits somewhat more relaxed than typical.
Compared with 70 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · LOW · HIGH geometry XL geometry
LOW · HIGH
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 72° sits toward the steeper end. Its wheelbase of 1061 mm sits somewhat shorter than typical.
Compared with 75 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · LOW · HIGH geometry Parts & serviceability
Find replacement parts
KMC X9 with Missing Link
Exact archived model
Shimano HG400, 11x34
Exact archived model
Tektro MD-C550 mechanical
Brake model identified — verify pad shape
More qualified parts (3)
Shimano Sora
Interpreted as Shimano Sora · 9-speed Named component · published drivetrain speed — verify exact version
Shimano Sora, long cage
Interpreted as Shimano Sora · 9-speed Named component · published drivetrain speed — verify exact version
Shimano Sora, 2x9
Interpreted as Shimano Sora · 9-speed Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Giant Revolt 2 · Cyclocross/Gravel · Published sizes: XS, S, M, M/L, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout · Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Sora, 2x9 · Front derailleur: Shimano Sora · Rear derailleur: Shimano Sora, long cage · Crankset: FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm · Bottom bracket: cartridge · Cassette: Shimano HG400, 11x34 · Chain: KMC X9 with Missing Link
Brakes
Inspect the brakes →Archived: Brakes: Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant S-X2 Disc wheelset, alloy · Hubs: Giant alloy, 12mm thru-axle · Front tire: Giant CrossCut AT 2, 700x38c, tubeless · Rear tire: Giant CrossCut AT 2, 700x38c, tubeless
Controls and contact points
Archived: Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm · Stem: Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm · Seatpost: Giant D-Fuse, alloy, 14mm offset · Saddle: Giant Approach
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
