Velopedia Bicycle Archive
2025 Giant Escape Disc 2
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Hybrid
- Original MSRP
- $775.00
- Sizes
- S, M, L, XL
- Colors
- Asphalt Green, Dried Matcha
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 7 archived images · original MSRP · preserved geometry
- Archive ID
- 900001282

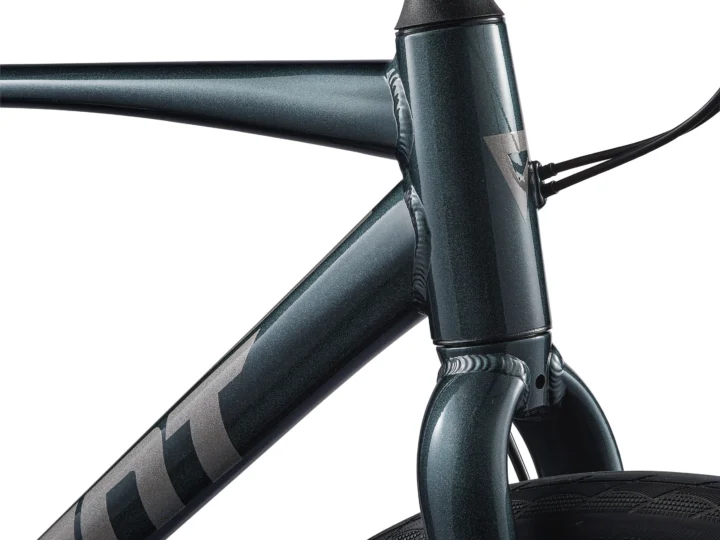

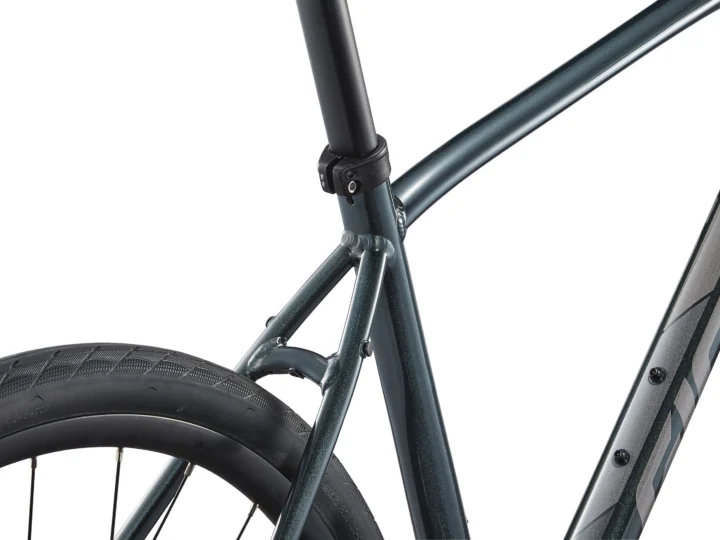

Frameset
| Frame Construction | ALUXX-grade aluminum, disc |
|---|---|
| Frame Material | Aluminum |
| Fork | alloy, rack mount, disc, QR |
| Fork Material | Aluminum |
| Rear Shock | N/A |
Drivetrain
| Shifters | microSHIFT Advent, 1x9 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | micoSHIFT Advent |
| Crankset | Forged Alloy, 40T XS:170mm, S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | sealed cartridge |
| Cassette | micorSHIFT Advent, 11x46 |
| Chain | KMC X9 |
| Pedals | Giant Urban Fitness |
Brakes
| Brakes | Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm |
|---|

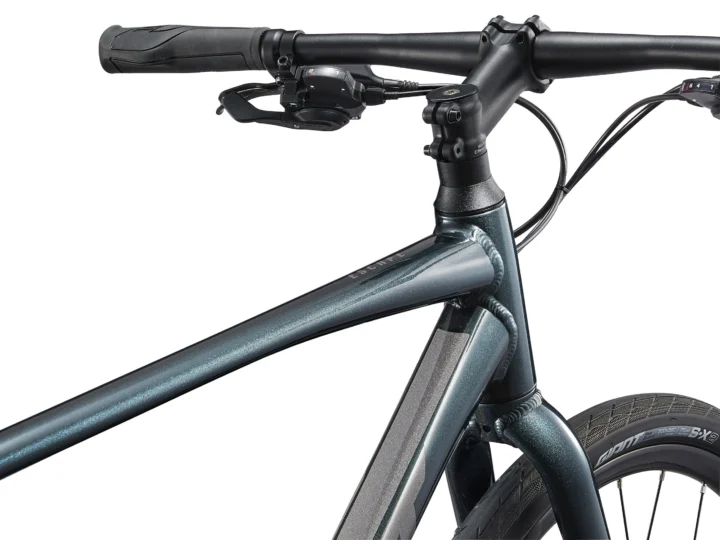

Cockpit & Contact Points
| Handlebar | Giant Sport XC, 31.8mm XS:60cm, S:64cm, M:64cm, L:68cm, XL:68cm |
|---|---|
| Stem | Giant Sport, 15-degree, 31.8mm XS:80mm, S:90mm, M:90mm, L:100mm, XL:100mm |
| Saddle | Giant ErgoContact |
| Seatpost | Giant D-Fuse, alloy XS:300mm, S:300mm, M:350mm, L:350mm, XL:350mm |

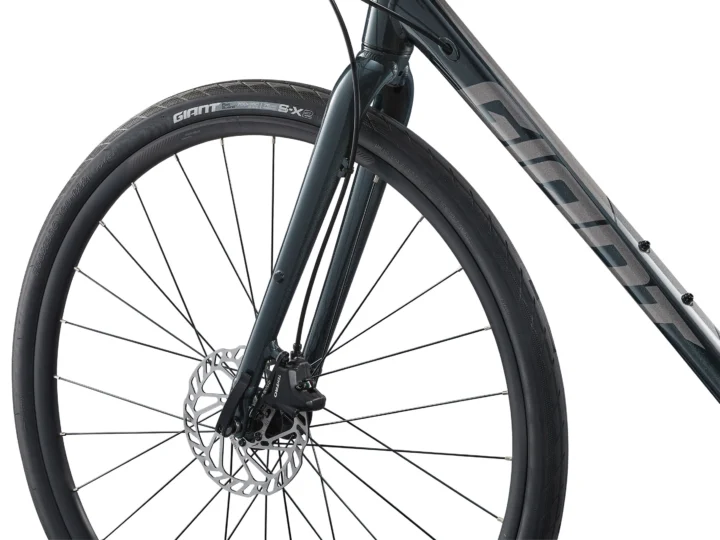

Wheels & Tires
| Hubs | alloy, 28h |
|---|---|
| Rims | Giant double wall aluminum |
| Spokes | stainless, 14g |
| Front Tire | Giant S-X2, puncture protect, 700x38c |
| Rear Tire | Giant S-X2, puncture protect, 700x38c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 430 mm | 485 mm | 535 mm | 585 mm |
| Top tube | 565 mm | 580 mm | 595 mm | 610 mm |
| Head tube | 115 mm | 130 mm | 160 mm | 190 mm |
| Head-tube angle | 70° | 71° | 71° | 71° |
| Seat-tube angle | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1074 mm | 1075 mm | 1091 mm | 1107 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Reach | 406 mm | 410 mm | 416 mm | 423 mm |
| Stack | 538 mm | 556 mm | 585 mm | 613 mm |
| Standover height | 714 mm | 754 mm | 799 mm | 842 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 69.4 mm | 69.4 mm | 69.4 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm |
| Stem length | 90 mm | 90 mm | 100 mm | 100 mm |
| Handlebar width | 640 mm | 640 mm | 690 mm | 690 mm |
| Wheel size | 700C | 700C | 700C | 700C |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its reach of 406 mm sits toward the longer end. Its stack of 538 mm sits toward the lower end. Its bottom-bracket drop of 60 mm sits somewhat shallower than typical.
Compared with 24 distinct hybrid geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 556 mm sits toward the lower end. Its reach of 410 mm sits toward the longer end. The head angle of 71° sits toward the steeper end.
Compared with 26 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its stack of 585 mm sits toward the lower end. Its reach of 416 mm sits somewhat longer than typical. Its bottom-bracket drop of 60 mm sits somewhat shallower than typical.
Compared with 24 distinct hybrid geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its stack of 613 mm sits toward the lower end. Its bottom-bracket drop of 60 mm sits somewhat shallower than typical. The head angle of 71° sits somewhat steeper than typical.
Compared with 19 distinct hybrid geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X9
Exact archived model
Tektro HD-R280
Brake model identified — verify pad shape
microSHIFT Advent, 1x9
Interpreted as microSHIFT ADVENT · 9-speed Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Giant Escape Disc 2 · Hybrid · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, disc · Fork: alloy, rack mount, disc, QR · Aluminum
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT Advent, 1x9 · Rear derailleur: micoSHIFT Advent · Crankset: Forged Alloy, 40T XS:170mm, S:170mm, M:170mm, L:175mm, XL:175mm · Bottom bracket: sealed cartridge · Cassette: micorSHIFT Advent, 11x46 · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant double wall aluminum · Hubs: alloy, 28h · Front tire: Giant S-X2, puncture protect, 700x38c · Rear tire: Giant S-X2, puncture protect, 700x38c
Controls and contact points
Archived: Handlebar: Giant Sport XC, 31.8mm XS:60cm, S:64cm, M:64cm, L:68cm, XL:68cm · Stem: Giant Sport, 15-degree, 31.8mm XS:80mm, S:90mm, M:90mm, L:100mm, XL:100mm · Seatpost: Giant D-Fuse, alloy XS:300mm, S:300mm, M:350mm, L:350mm, XL:350mm · Saddle: Giant ErgoContact · Pedals: Giant Urban Fitness
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

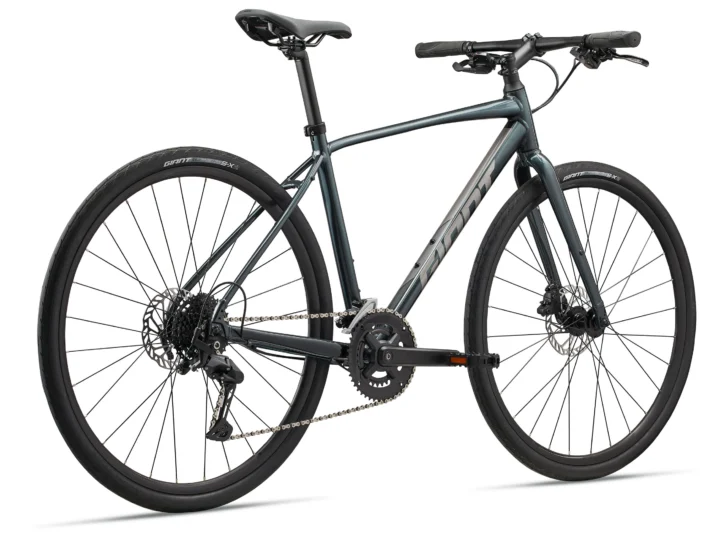

Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
