2026 Giant Revolt Advanced 3
Original manufacturer specifications including geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,350.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors
- Aquarium
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 5 archived images · original MSRP · preserved geometry
- Archive ID
- 900001273

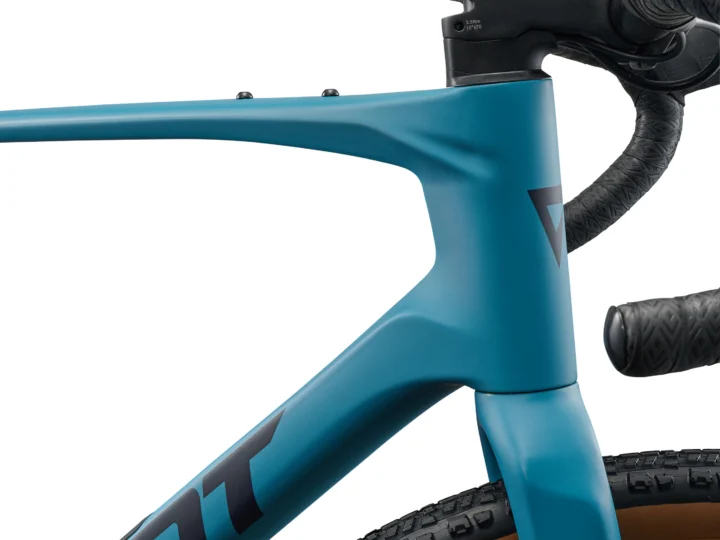

Frameset
| Frame Construction | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage |
|---|---|
| Frame Material | Carbon Fiber |

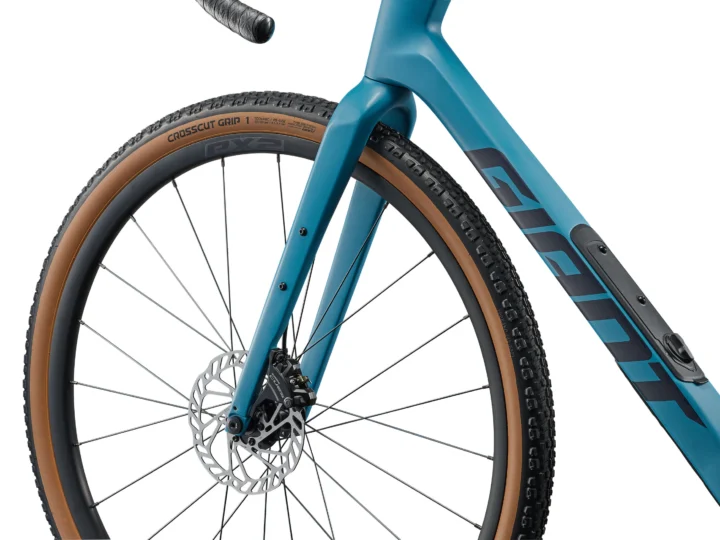

| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Fork Material | Carbon Fiber |

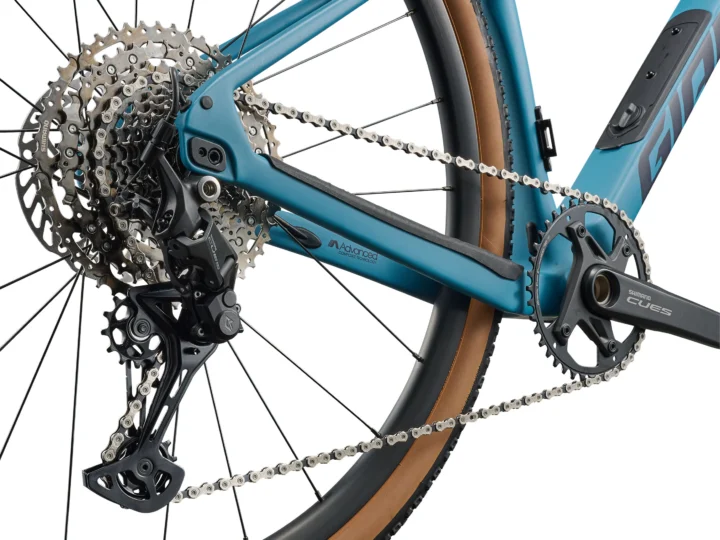

Drivetrain
| Shifters | Shimano CUES U6030, 1x11 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES U6000 |
| Crankset | Shimano FC-U6030-1, 42t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Cassette | Shimano CS-LG400, 11x50 |
| Chain | KMC X11 |
Brakes
| Brakes | Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
|---|
Cockpit & Contact Points

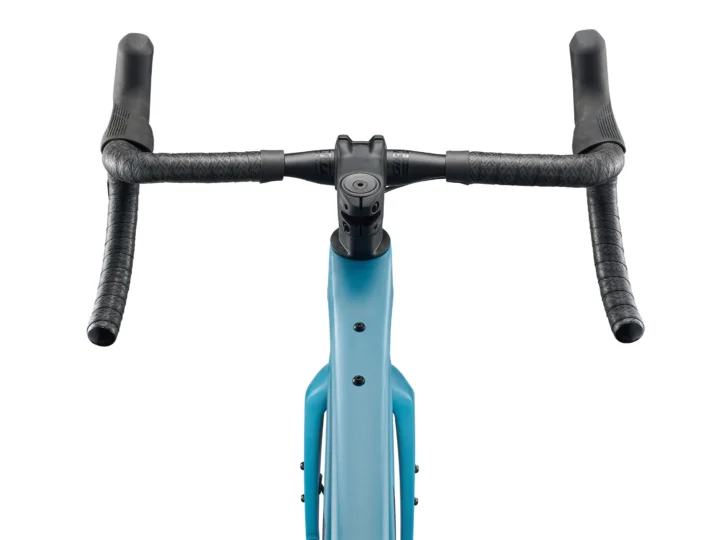

| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
|---|---|
| Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Saddle | Giant Grit |
| Seatpost | Giant D-Fuse, composite, 14mm offset |
Wheels & Tires
| Hubs | Giant alloy, 12mm thru-axle |
|---|---|
| Rims | Giant P-X2 , alloy |
| Spokes | Sapim |
| Front Tire | Giant Crosscut Grip, 700x45c, tubeless |
| Rear Tire | Giant Crosscut Grip, 700x45c, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS · SHORT | LONG | S · SHORT | LONG | M · SHORT | LONG | ML · SHORT | LONG | L · SHORT | LONG | XL · SHORT | LONG |
|---|---|---|---|---|---|---|
| Seat tube | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Top tube | 540 mm | 550 mm | 560 mm | 575 mm | 585 mm | 600 mm |
| Head tube | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Head-tube angle | 70° | 71° | 71.5° | 72° | 72° | 72° |
| Seat-tube angle | 74° | 73.5° | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1024 mm | 1020 mm | 1026 mm | 1031 mm | 1041 mm | 1056 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach | 381 mm | 381 mm | 387 mm | 391 mm | 397 mm | 407 mm |
| Stack | 556 mm | 570 mm | 586 mm | 602 mm | 616 mm | 630 mm |
| Standover height | 724 mm | 740 mm | 757 mm | 774 mm | 791 mm | 807 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 72 mm | 68 mm | 65 mm | 65 mm | 65 mm |
| Crank length | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 50 mm | 60 mm | 70 mm | 80 mm | 80 mm | 90 mm |
| Handlebar width | 420 mm | 420 mm | 440 mm | 440 mm | 460 mm | 460 mm |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
SHORT · LONG
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its reach of 381 mm sits toward the longer end. Its stack of 556 mm sits somewhat taller than typical.
Compared with 33 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS · SHORT · LONG geometry S geometry
SHORT · LONG
Archive context: The seat angle of 73.5° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its stack of 570 mm sits toward the taller end.
Compared with 80 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S · SHORT · LONG geometry M geometry
SHORT · LONG
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The chainstay of 425 mm sits somewhat shorter than typical. The head angle of 71.5° sits somewhat steeper than typical.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M · SHORT · LONG geometry ML geometry
SHORT · LONG
Archive context: The head angle of 72° sits toward the steeper end. The seat angle of 73° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze ML · SHORT · LONG geometry L geometry
SHORT · LONG
Archive context: The head angle of 72° sits toward the steeper end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The seat angle of 73° sits somewhat more relaxed than typical.
Compared with 65 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L · SHORT · LONG geometry XL geometry
SHORT · LONG
Archive context: Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 72° sits toward the steeper end. Its wheelbase of 1056 mm sits somewhat shorter than typical.
Compared with 71 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · SHORT · LONG geometry Parts & serviceability
Find replacement parts
KMC X11
Exact archived model
Shimano CS-LG400, 11x50
Exact archived model
Shimano CUES U6000
Interpreted as Shimano CUES · 11-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
More qualified parts (1)
Shimano CUES U6030, 1x11
Interpreted as Shimano CUES · 11-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Giant Revolt Advanced 3 · Cyclocross/Gravel · Published sizes: XS, S, M, M/L, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage · Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES U6030, 1x11 · Rear derailleur: Shimano CUES U6000 · Crankset: Shimano FC-U6030-1, 42t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm · Bottom bracket: Shimano, press fit · Cassette: Shimano CS-LG400, 11x50 · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant P-X2 , alloy · Hubs: Giant alloy, 12mm thru-axle · Front tire: Giant Crosscut Grip, 700x45c, tubeless · Rear tire: Giant Crosscut Grip, 700x45c, tubeless
Controls and contact points
Archived: Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm · Stem: Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm · Seatpost: Giant D-Fuse, composite, 14mm offset · Saddle: Giant Grit
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
